operating cover for flush-mounted valves

figure 591 00

  • for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC
  • chrome-plated collar
  • chrome-plated collar

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 591 00
figure 591 00
figure 591 00
figure 591 00
figure 591 00

Product Features

  • for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC
  • chrome-plated collar
  • chrome-plated collar
  • with fixing set for mounting in plastic shaft of flush-mounted valves
  • allen key 6 mm operated to protect against unauthorized handling
  • including red and blue indicator plates to indicate hot or cold water
  • for UP quarter turn stop valves, please select DN 25

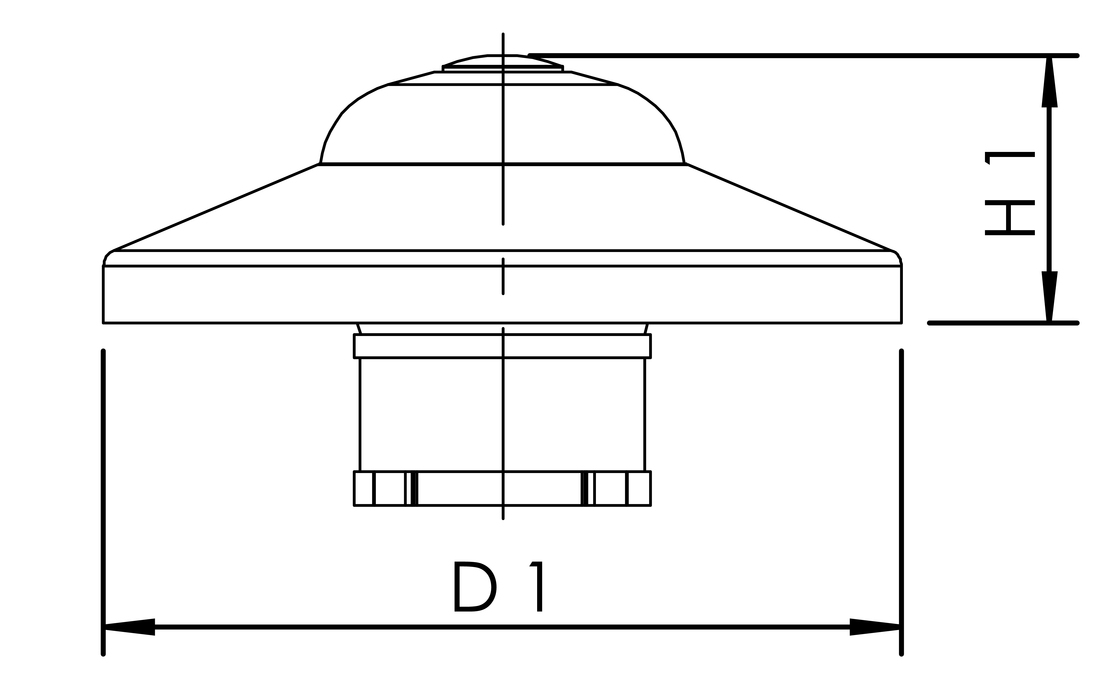

Part no. for DN D1
(mm) 		H1
(mm) 		inner shaft diameter thread kg
5910001500 15-20 70 23.5 26 M 21 x 1,25 0.10
5910002500 25-32 70 23.5 35 M 33 x 1,5 0.12
