CLASSIC water meter combination body, 90 mm, G2 coax.

figure 855 27 120

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • housing with G 2 coaxial thread for meter cartridges
  • consisting of stop valve and water meter housing with overflow cap

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 855 27 120
figure 855 27 120
figure 855 27 120
figure 855 27 120
figure 855 27 120

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • housing with G 2 coaxial thread for meter cartridges
  • consisting of stop valve and water meter housing with overflow cap
  • for installation of a cold or hot-water metering cartridge
  • maintenance-free EPDM spindle seal
  • female pipe thread
  • handle with blue or red dot for identification
  • free from dead spots
  • with casted lug for installation with optional base plate

Standards and Approvals

  • valve with DVGW approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • valve with soundproofing certificate according to EN ISO 3822 Class 1
  • DIN EN 1213
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • inside micrometer 90 mm
  • pressure rating PN 10
  • max. operating temperature 70 °C
  • short-term peak temperature 95 °C

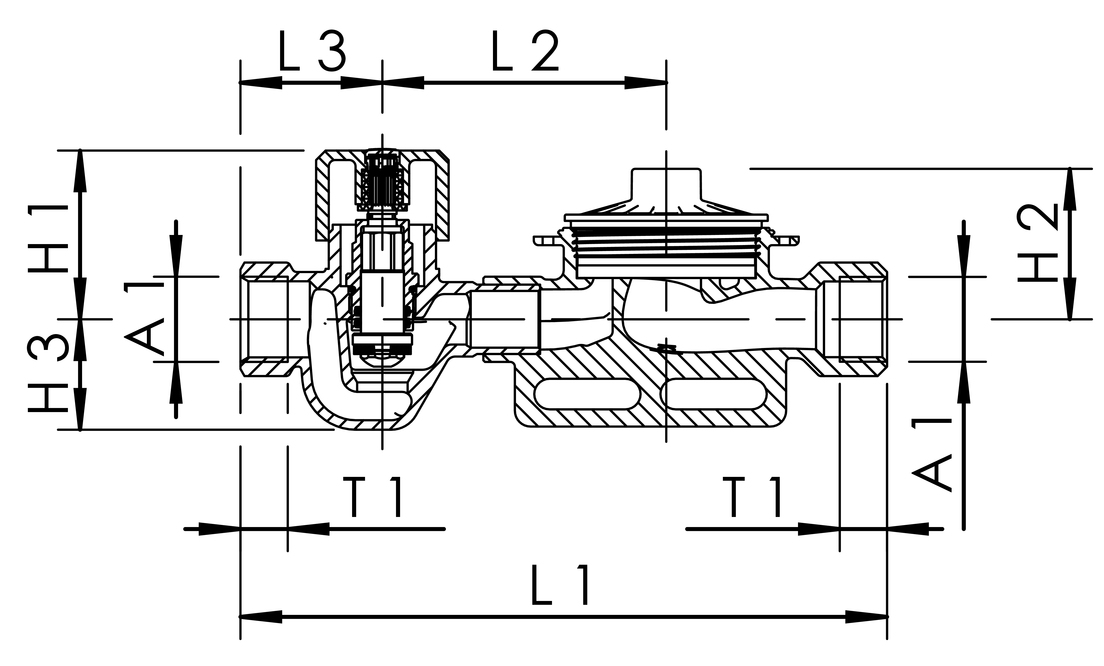

figure 855 27 120
Part no. DN A1 H1
(mm) 		H2
(mm) 		H3
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		T1
(mm) 		cv
(m³/h) 		kg
8552712000 20 Rp 3/4 53.5 47.7 35 205 90 45 16.3 3.79 1.46
