gunmetal union connector, union nut, MPT

figure 476 08

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • with coupling nut for flat sealing connection thread including EPDM gasket

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • with coupling nut for flat sealing connection thread including EPDM gasket

Standards and Approvals

  • according to accepted materials list from German environmental agency
  • DIN EN 1213
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

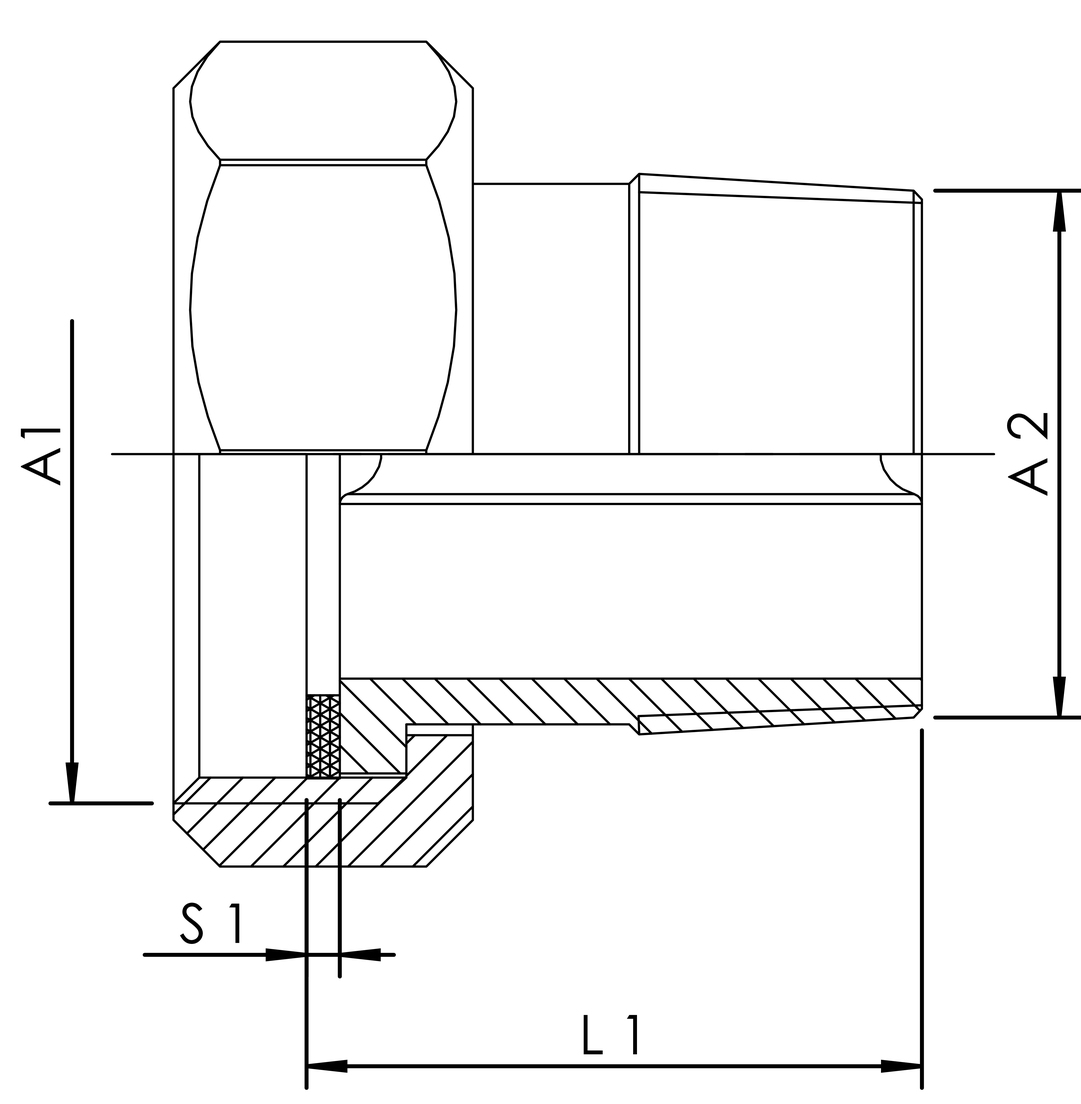

Part no. DN A1 A2 L1
(mm)
S1
(mm)
kg
4760801500 15 G 3/4 R 1/2 29.5 2 0.08
4760802000 20 G 1 R 3/4 33 2 0.12
4760802500 25 G 1 1/4 R 1 37 2 0.18
4760803200 32 G 1 1/2 R 1 1/4 41 2 0.22
4760804000 40 G 1 3/4 R 1 1/2 42 2 0.31
4760805000 50 G 2 3/8 R 2 53 3 0.54
4760806500 65 G 3 R 2 1/2 63 3 0.86
4760808000 80 G 3 1/2 R 3 68 3 1.29
