quarter turn stop valve, union thread

figure 386 0G

  • low pressure loss
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • full bore

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 386 0G
figure 386 0G
figure 386 0G
figure 386 0G
figure 386 0G

Product Features

  • low pressure loss
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • full bore
  • male union thread
  • removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
  • operating handle 90° rotatable
  • free from dead spots

Standards and Approvals

  • DVGW approval
  • WRAS approval
  • KIWA UK water regulation 4 approval
  • plastic parts with KTW and W 270 approval
  • according to DVGW worksheet W 570
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • DIN EN 13828
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 90 °C
figure 386 0G

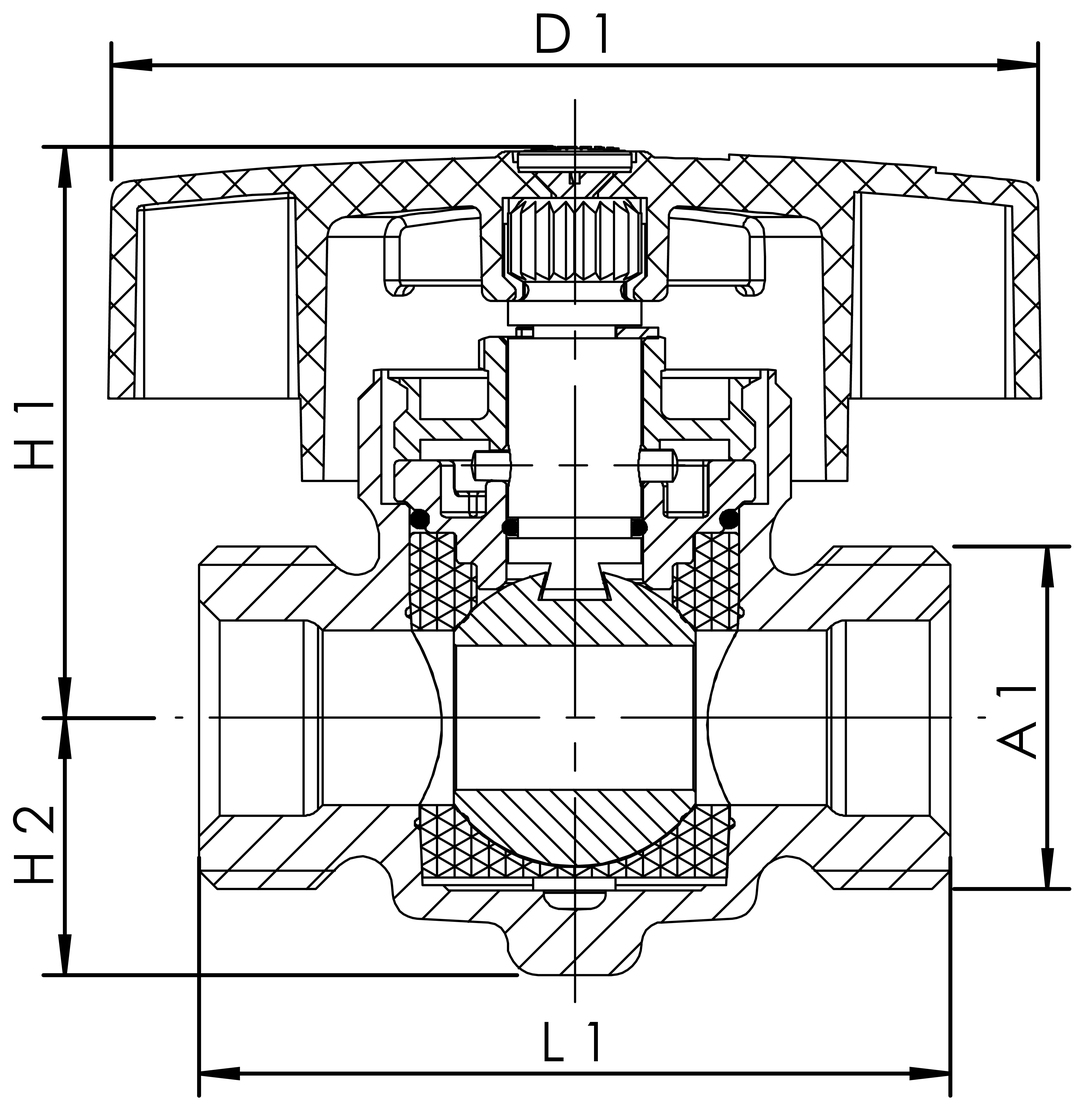

Part no. DN A1 BS
(mm) 		D1
(mm) 		H1
(mm) 		H2
(mm) 		L1
(mm) 		HS
(mm) 		LS
(mm) 		kg
3860G01500 15 G 3/4 90 90 55.5 25 68 81 90 0.43
3860G02000 20 G 1 90 90 55.5 25 73 81 90 0.50
3860G02500 25 G 1 1/4 90 90 58.5 28 88 87 90 0.76
3860G03200 32 G 1 1/2 90 74.5 31 93 0.95

CAD models & characteristic curves

Part no. DN CAD model Flow chart
3860G01500 15 Show 3D data Show flow chart
3860G02000 20 Show 3D data Show flow chart
3860G02500 25 Show 3D data Show flow chart
3860G03200 32 Show 3D data Show flow chart
