ETA-THERM thermostatic balancing valve, union thread, 62°C - 64 °C, figure 134 0G

ETA-THERM thermostatic balancing valve, union thread, 62°C - 64 °C

figure 134 0G

thermostatic balancing valve for hydraulic balancing of very short circulation circuits from kv-min ≥ 0.05
for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

figure 134 0G

figure 134 0G

Site navigation

Product features Standards & approvals Technical data CAD models Planning data Downloads Accessories Spare parts

Product Features

thermostatic balancing valve for hydraulic balancing of very short circulation circuits from kv-min ≥ 0.05
for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
PTFE seat gasket
maintenance-free EPDM spindle seal
thermostatic balancing unit
male union thread
handle grip with purple identification plate
free from dead spots
with isolating, balancing and pre-setting function

Standards and Approvals

DVGW approval
ÖVGW approval
SVGW approval
plastic parts with KTW and W 270 approval
for systems according to DVGW worksheet W 551 / W 553 / DIN 1988-300
according to accepted materials list from German environmental agency
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

control range 62 °C - 64 °C
pressure rating PN 16
max. operating temperature 90 °C

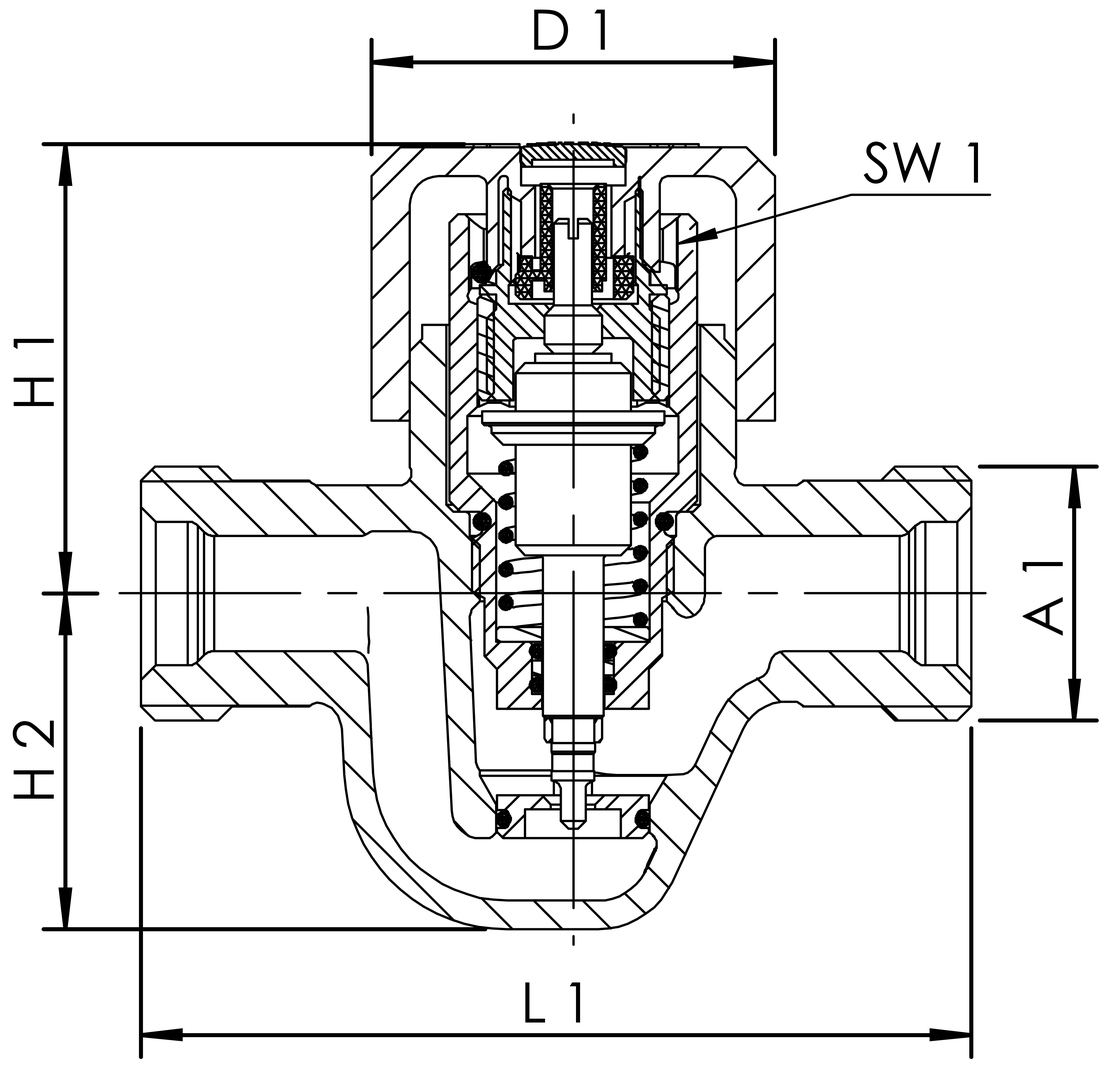

Part no.	DN	A1	D1 (mm)	H1 (mm)	H2 (mm)	L1 (mm)	SW1 (mm)	cv (m³/h)	kg
1340G01500	15	G 3/4	42	47	35	86.5	19	0.4	0.51

CAD models

Part no.	DN	CAD model
1340G01500	15	Show 3D data

Planning data

Show planning data on pdod.de

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Building technology valves and systems

pdf (20.6 MB)

Brochure balancing valves

pdf (624 KB)

Instructions

File type

Installation and operating instructions ETA-THERM

pdf (2.2 MB)

Technical information

File type

Flow Diagram ETA-THERM

pdf (1.2 MB)

Accessories

gunmetal solder union connector

figure 476 04

figure 476 04

gunmetal union connector, union nut

figure 476 06

figure 476 06

gunmetal union connector, union nut, FPT, with drain valve

figure 476 07

figure 476 07

gunmetal union connector, union nut, MPT

figure 476 08

figure 476 08

solder / pressfit union connector

figure 476 14

figure 476 14

pressfit union connector, MAPRESS stainless steel and copper

figure 476 22

figure 476 22

pressfit union connector, SANPRESS and PROFIPRESS

figure 476 30

figure 476 30

pressfit union connector, SANHA and NiroSan

figure 476 35

figure 476 35

pressfit union connector, MEPLA

figure 476 40

figure 476 40

pressfit union connector, MAPRESS stainless steel

figure 476 20

figure 476 20

pressfit union connector, SANPRESS INOX

figure 476 70

figure 476 70

insulation shell for UP-PLUS and ETA-THERM valves

figure 471 14

figure 471 14

hexagon socket key, size 19

figure B5120 599 00

figure B5120 599 00

Show all products

Spare parts

Balancing bonnet 62-64°C for ETA-THERM thermostatic balancing valve

figure E0109 540 01

figure E0109 540 01
