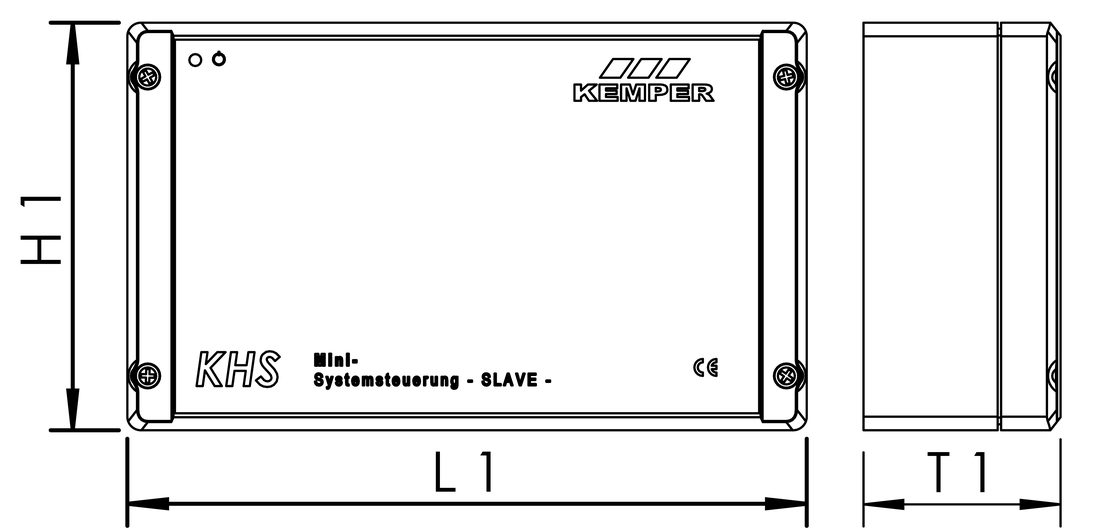

KHS Mini Control System SLAVE, figure 686 02 006

KHS Mini Control System SLAVE

figure 686 02 006

to control, log and monitor water exchange measures in PWC and PWH installations
as an expansion module for the KHS mini control system MASTER 2.0/2.1
expandable by 62 units in the CAN-bus in the MASTER/SLAVE system

Site navigation

to control, log and monitor water exchange measures in PWC and PWH installations
as an expansion module for the KHS mini control system MASTER 2.0/2.1
expandable by 62 units in the CAN-bus in the MASTER/SLAVE system
For connection of max. one of each of the following: KHS quarter turn stop valve or KHS quarter turn stop valve PLUS or CoolFlow cold water balancing valve, KHS temperature sensor Pt1000, KHS CONTROL-PLUS and KHS overflow sensor
Modes of operation: Time, temperature, volume flow and routine control
settings will be adopted by KHS MASTER 2.0/2.1 via CAN bus cable
for wall installation
Operating modes (16 memory locations): Time, temperature, volume flow, routine control, security/leak protection and data logging
In the case of direct connection of quarter turn stop valves PLUS or CoolFlow cold water balancing valves only the 230 Volt versions are compatible
please commission and maintain according to the operating instructions at the construction site or optionally order these
