KHS temperature sensor Pt 1000, figure 628 0G

KHS temperature sensor Pt 1000

figure 628 0G

wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
includes 4 or 2-wire Pt1000 measuring element

Product datasheet PDF

Show planning data on pdod.de

figure 628 0G

figure 628 0G

Site navigation

Product features Standards & approvals Technical data CAD models Planning data Downloads Accessories Accessory of

Product Features

full bore
For connection to the KHS control systems, the KHS Hygiene Flush Box PRO or for connection to the building management system (BMS) for the temperature control flush mode
male union thread
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
free from dead spots
includes 4 or 2-wire Pt1000 measuring element

Standards and Approvals

WRAS approval
according to accepted materials list from German environmental agency
DIN EN 60751
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

pressure rating PN 16
min. operating temperature 0 °C
max. operating temperature 105 °C
length of connection cable 1 m
wire cross section 4 x 0.22 mm²
diameter of the sensor 0.2 in
tolerance class A

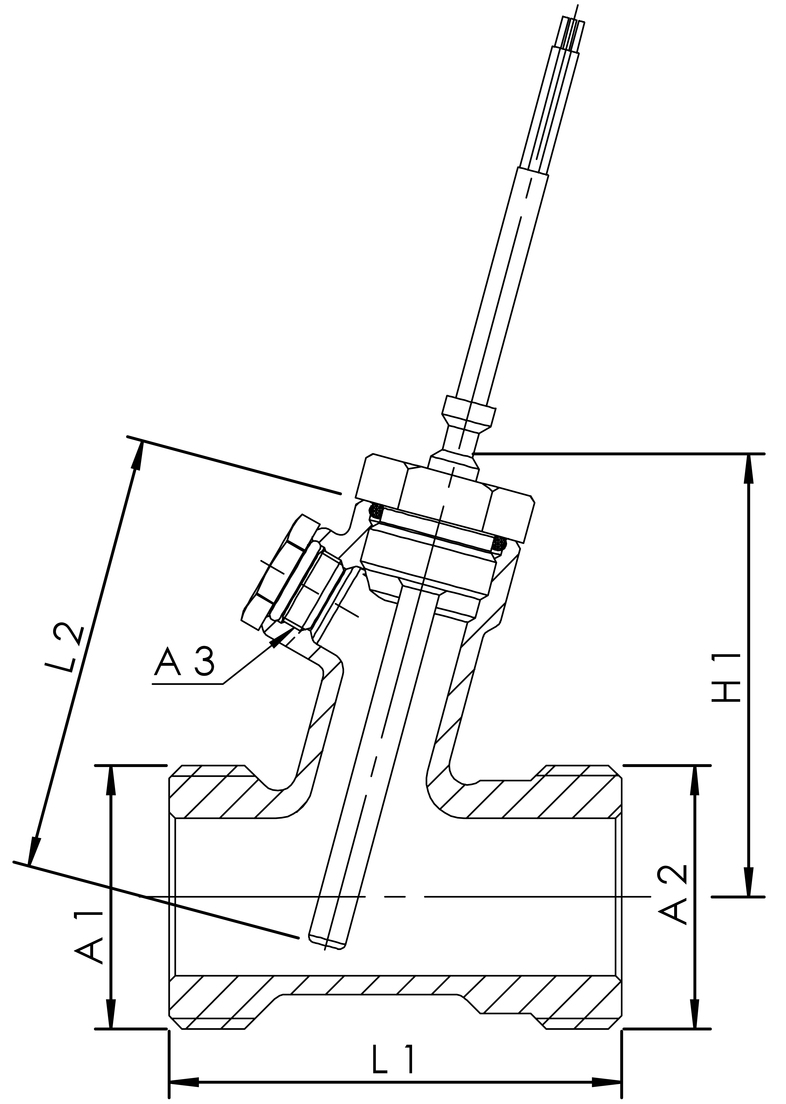

Part no.	DN	A1	A2	A3	H1 (mm)	L1 (mm)	L2 (mm)	kg
6280G01500	15	G 3/4	G 3/4	G 1/4	65	65	60	0.38
6280G02000	20	G 1	G 1	G 1/4	68	67	60	0.43
6280G02500	25	G 1 1/4	G 1 1/4	G 1/4	70.5	72	70	0.59
6280G03200	32	G 1 1/2	G 1 1/2	G 1/4	78	77	80	0.66
6280G04000	40	G 1 3/4	G 1 3/4	G 1/4	79	82	80	0.76
6280G05000	50	G 2 3/8	G 2 3/8	G 1/4	88.5	90	80	1.17

CAD models & characteristic curves

Part no.	DN	CAD model	Characteristic line
6280G01500	15	Show 3D data	Show characteristic curve
6280G02000	20	Show 3D data	Show characteristic curve
6280G02500	25	Show 3D data	Show characteristic curve
6280G03200	32	Show 3D data	Show characteristic curve
6280G04000	40	Show 3D data	Show characteristic curve
6280G05000	50	Show 3D data	Show characteristic curve

Planning data

Show planning data on pdod.de

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Building technology valves and systems

pdf (20.6 MB)

Brochure Hygiene System KHS

pdf (3.2 MB)

KHS Hygiene System Design Assistance

pdf (8.9 MB)

KHS Brochure for Planners

pdf (5.1 MB)

KHS Brochure for Operators

pdf (1.3 MB)

Instructions

File type

Installation and operating instructions KHS temperature measuring fitting Pt1000

pdf (1.1 MB)

Technical information

File type

KHS wiring instructions

pdf (438 KB)
