KTS Water Heater, single station and cascade, stainless steel

figure 925

  • as a central domestic hot water heater according to the continuous flow principle
  • stainless steel plate heat exchanger EPDM sealed

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 925
figure 925
figure 925
figure 925
figure 925

Product Features

  • as a central domestic hot water heater according to the continuous flow principle
  • stainless steel plate heat exchanger EPDM sealed
  • for hygienic supply of hot water and hot water circulation according to latest standards
  • wetted parts on the drinking water side made of gunmetal, stainless steel and drinking water approved plastics
  • plate heat exchanger made of stainless steel grade 1.4401/1.4404
  • includes thermal disinfection option according to DVGW W 551
  • integrated pump for primary side (heating)
  • pulse train controlled pump
  • materials suitable for drinking and heating water
  • lime scale protection due to patented tilted position of plate heat exchanger
  • to control hot water heating and reloading of buffer tank
  • integrated MASTER/SLAVE method for cascade rotation
  • wetted parts on the heating side made of gunmetal, stainless steel, cast grey iron and brass
  • includes option to compensate for offset in walls
  • insulating shell made of EPP with separated hot and cold areas to avoid heat loads on the cold water and protect the controller and pump electronics from high temperatures
  • with patented chimney effect to make efficient use of the pump life
  • Adaptive controller for high control quality
  • includes two temperature sensors with 7 metres pipe length for mounting on the buffer tank
  • Up to 8 devices possible
  • standard BMS compatibility via RS485 interface (Modbus-RTU)
  • with patented measuring track to detect volume flow from 1.6 l/min
  • includes two vortex flow sensors with integrated 2-wire Pt1000
  • includes 10 bar pressure relief valve installed at factory
  • sample valve can be retrofitted
  • includes four DN 32 quarter turn stop valves with insulation shells
  • flush point can be integrated to avoid stagnation in the cold-water pipe in the case of interruptions in operation
  • Connection to power supply with type F safety plug
  • includes 32 GB data logger to fulfil operator’s obligations
  • includes commissioning wizard
  • includes optimisation function with suggestion for reducing the flow temperature to save energy
  • includes sensor for detecting the return temperature
  • control range for 60°C drinking water from 2 K overtemperature
  • additional sensors can be connected for detecting the cold water and circulation entry temperature
  • adjustable hot water temperature for pipework contents < 3 l up to 30°C optional
  • with the option of BACNet connection

Standards and Approvals

  • according to accepted materials list from German environmental agency
  • building material class B2 according to DIN 4102
  • CE marking
  • VDE declaration of conformity
  • RoHS approval

Technical data

  • adjustable temperature range for PWH 30°C to 70°C
  • adjustable temperature range for thermal disinfection 70°C to 90°C
  • max. operating temperature primary side 95 °C
  • max. operating temperature secondary side 80 °C
  • max. working pressure 1 MPa
  • given abstraction rates at PWH = 60°C with PWC = 10°C and water temperature in buffer tank = 80°C
  • Water content per fresh water station (drinking water side) Appliance M = 2.48 litres, appliance L = 3.53 litres
  • Water content per fresh water station (heating side) Device M = 2.23 litres, Device L = 3.28 litres
figure 925

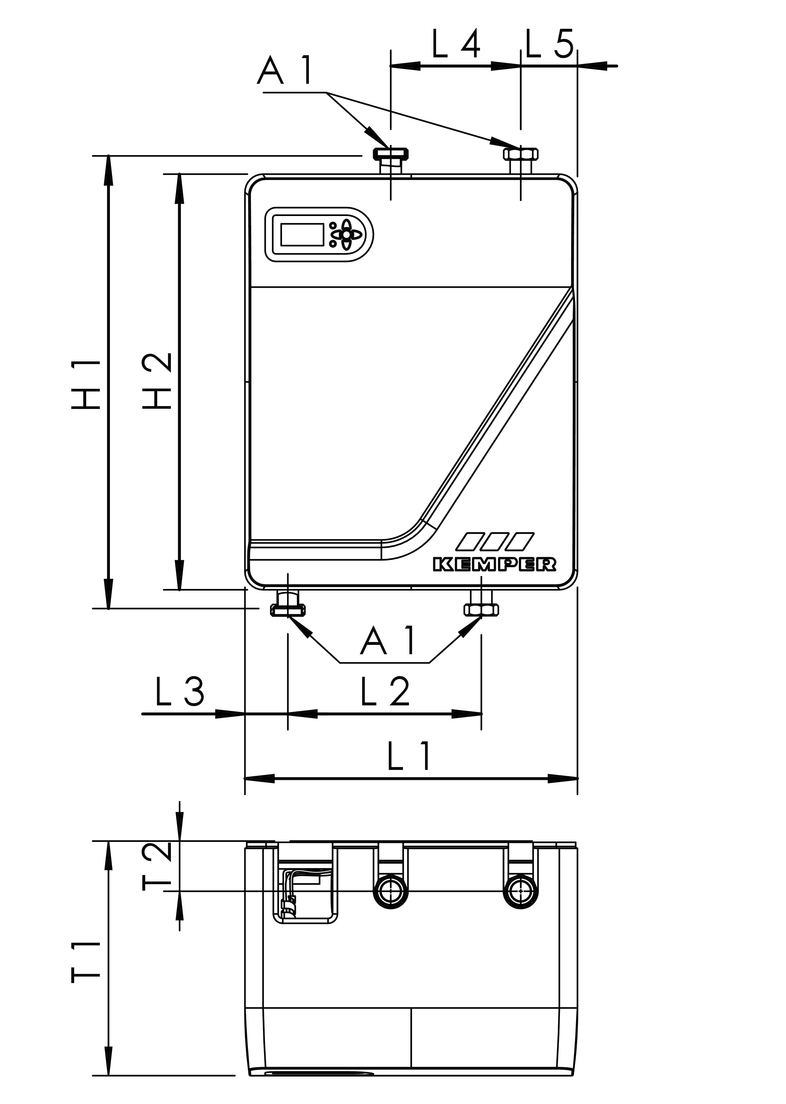

Part no. cascade min.
abstraction
rate
(l/min) 		max.
abstraction
rate
(l/min) 		capacity
(KW) 		A1 H1
(mm) 		H2
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		L4
(mm) 		L5
(mm) 		T1
(mm) 		T2
(mm) 		electr.
capacity
consumption (W) 		kv-value
primary
circle 		flow coefficient value
secondary
circle 		kg
9252010100 single unit M 1.6 75 262 G 1 1/2 749 687 550 320 71 215 94 388 83 145 7.1 7 56.00
9252000200 2-stage cascade M 1.6 150 524 G 1 1/2 749 687 550 320 71 215 94 388 83 290 14.2 14 112.00
9252000300 3-stage cascade M 1.6 225 786 G 1 1/2 749 687 550 320 71 215 94 388 83 435 21.3 21 168.00
9252000400 4-stage cascade M 1.6 300 1048 G 1 1/2 749 687 550 320 71 215 94 388 83 580 28.4 28 224.00
9252000500 5-stage cascade M 1.6 375 1310 G 1 1/2 749 687 550 320 71 215 94 388 83 725 35.5 35 300.00
9253010100 single unit L 1.6 120 418 G 1 1/2 749 687 550 320 71 215 94 388 83 194 10.2 9.4 62.00
9253000200 2-stage cascade 1.6 240 836 G 1 1/2 749 687 550 320 71 215 94 388 83 388 20.4 18.8 124.00
9253000300 3-stage cascade 1.6 360 1254 G 1 1/2 749 687 550 320 71 215 94 388 83 582 30.6 28.2 186.00
9253000400 4-stage cascade 1.6 480 1672 G 1 1/2 749 687 550 320 71 215 94 388 83 776 40.8 37.6 248.00
9253000500 5-stage cascade 1.6 600 2090 G 1 1/2 749 687 550 320 71 215 94 388 83 970 51 47 330.00
