KHS CoolFlow cold water balancing valve, with 24 V actuator, figure 616 0G

KHS CoolFlow cold water balancing valve, with 24 V actuator

figure 616 0G

thermostatic balancing valve with integrated flushing function
thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
for thermostatic, hydraulic balancing

Product datasheet PDF

Show planning data on pdod.de

Downloads

Site navigation

Product features Standards & approvals Technical data CAD models Planning data Downloads Accessories Spare parts

Product Features

thermostatic balancing valve with integrated flushing function
thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
for thermostatic, hydraulic balancing
thermostatic balancing unit
electrical shut-off device, can be combined with flushing system
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
maintenance-free EPDM spindle seal
PTFE seat gasket
water hammer free operation
free from dead spots
with isolating, balancing and pre-setting function
male union thread

Technical data

control range 15 °C - 22 °C
pressure rating PN 10
max. operating temperature 50 °C
max. ambient temperature 50 °C
protection class IP54
power supply 24 V AC/DC

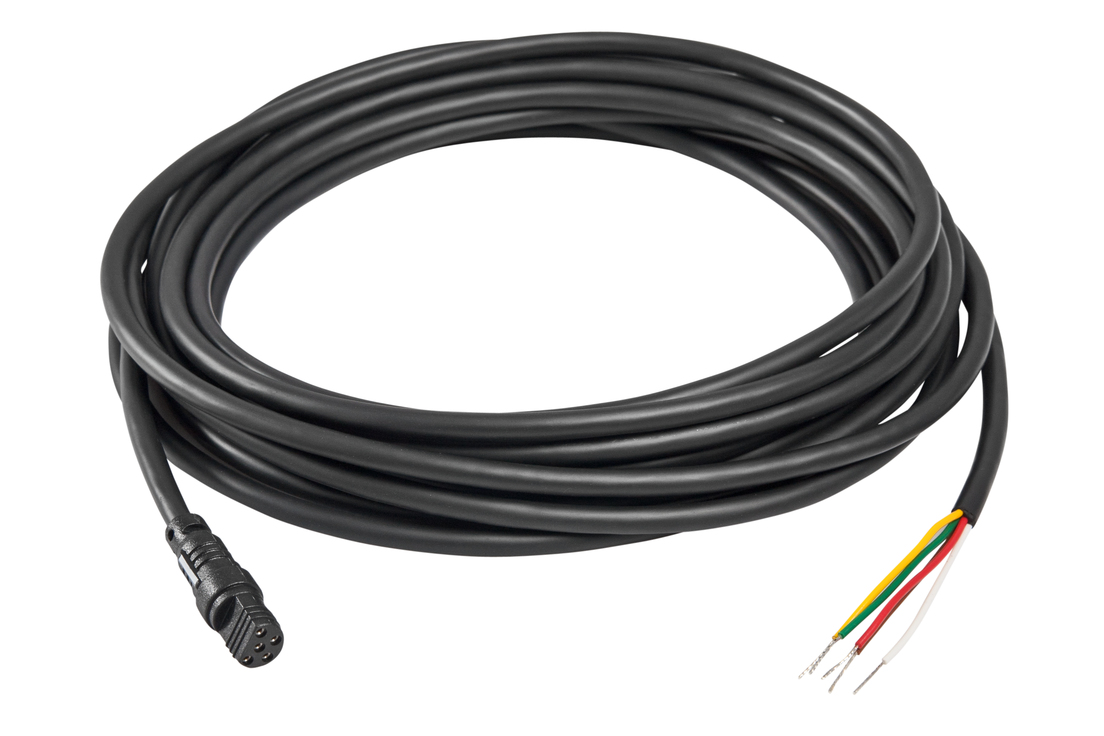

length of connection cable 1.5 m
wire cross section 5 x 0.5 mm²

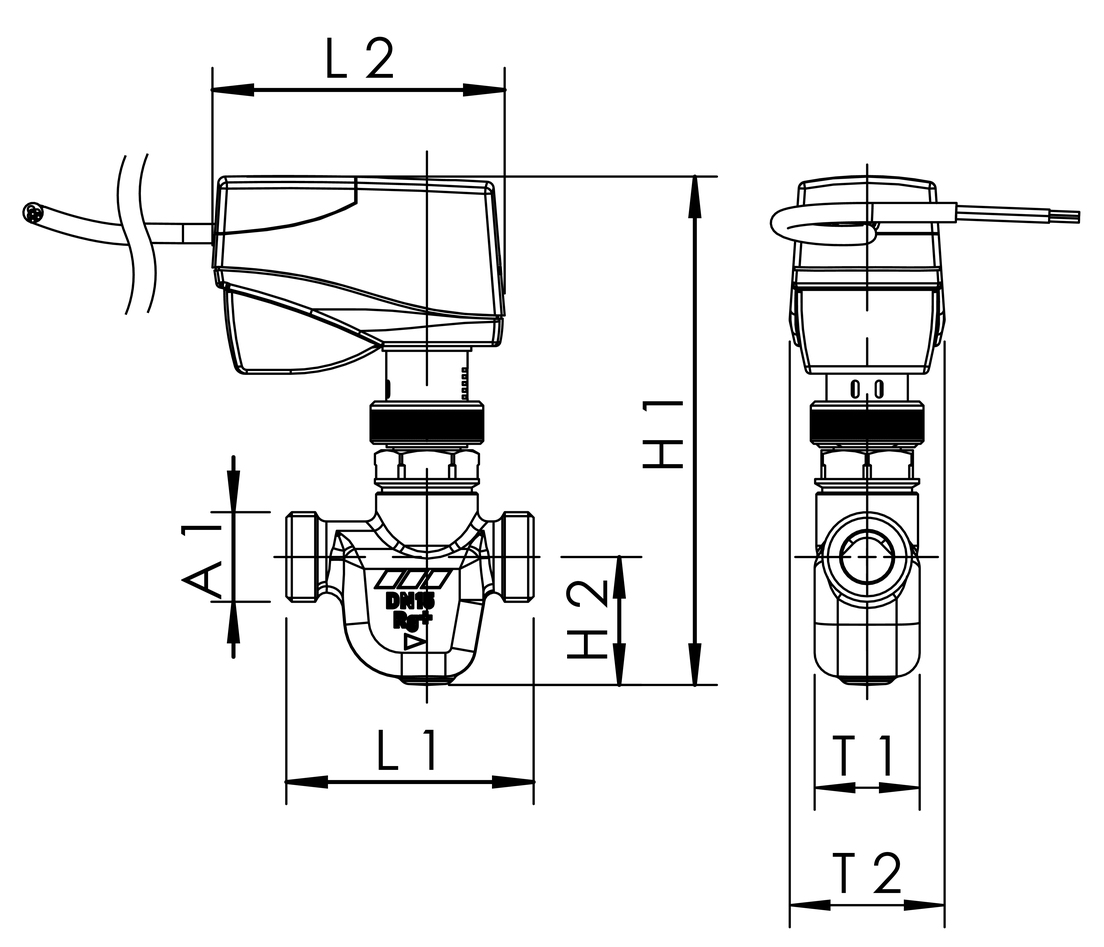

Part no.	DN	A1	H1 (mm)	H2 (mm)	L1 (mm)	L2 (mm)	T1 (mm)	T2 (mm)	cv min (m³/h)	Cv flush (m³/h)	cv (m³/h)	kg
6160G01500	15	G 3/4	150	37.8	73	86.2	31	45.7	0.03	2.2	1.8	0.89

Part no.

H1
(mm)

H2
(mm)

L1
(mm)

L2
(mm)

T1
(mm)

T2
(mm)

cv min
(m³/h)

Cv flush
(m³/h)

cv
(m³/h)

6160G01500

G 3/4

150

37.8

86.2

45.7

0.03

2.2

1.8

0.89

Part no.	DN	CAD model
6160G01500	15	Show 3D data

Part no.

CAD model

6160G01500

Show 3D data

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Brochure Hygiene System KHS

pdf (3.2 MB)

brochure for KHS CoolFlow cold water circulation

pdf (2.1 MB)

Building technology valves and systems

pdf (20.6 MB)

KHS Hygiene System Design Assistance

pdf (8.9 MB)

KHS Brochure for Planners

pdf (5.1 MB)

KHS Brochure for Operators

pdf (1.3 MB)

Instructions

File type

Installation and operating instructions KHS CoolFlow cold water regulating valve

pdf (8.5 MB)

Technical information

File type

KHS wiring instructions

pdf (438 KB)

Flow Diagram KHS CoolFlow cold water balancing valve

pdf (603 KB)

Accessories

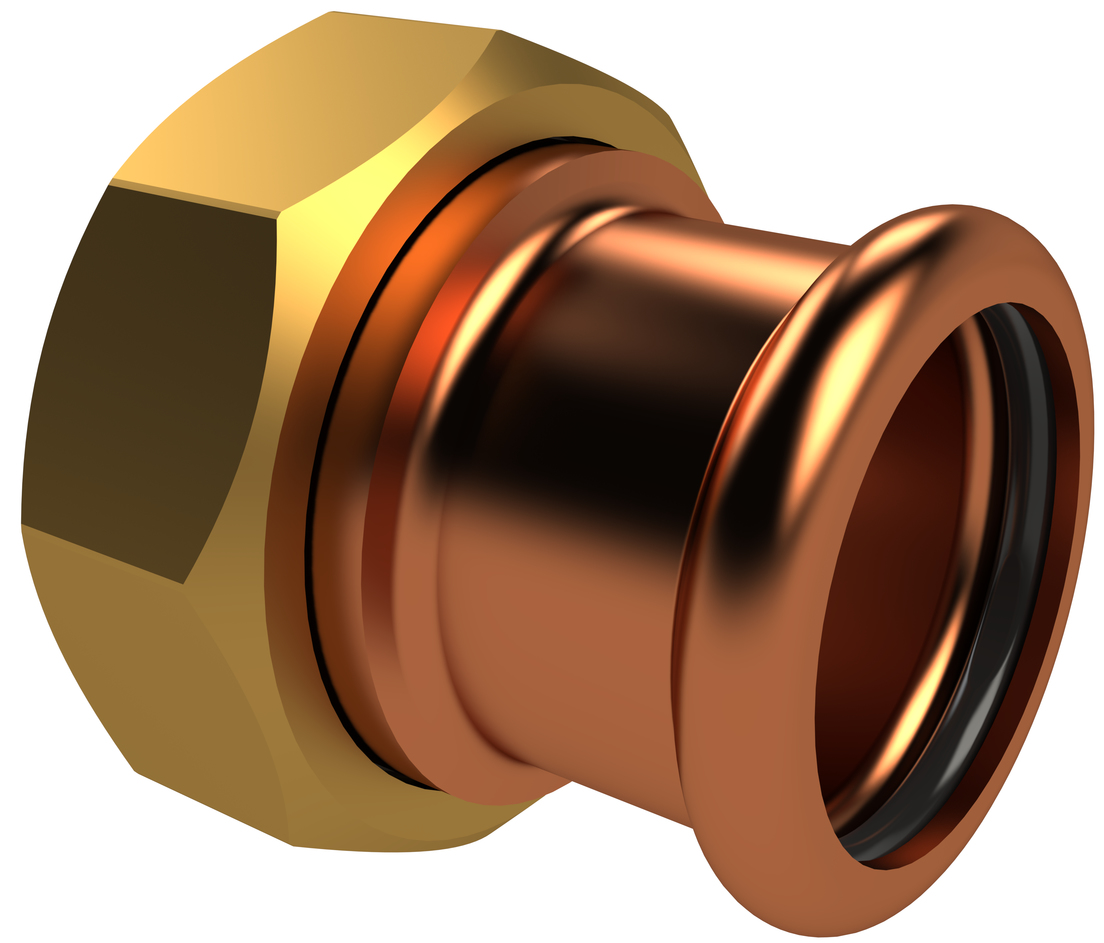

pressfit union connector, MAPRESS stainless steel and copper

figure 476 22

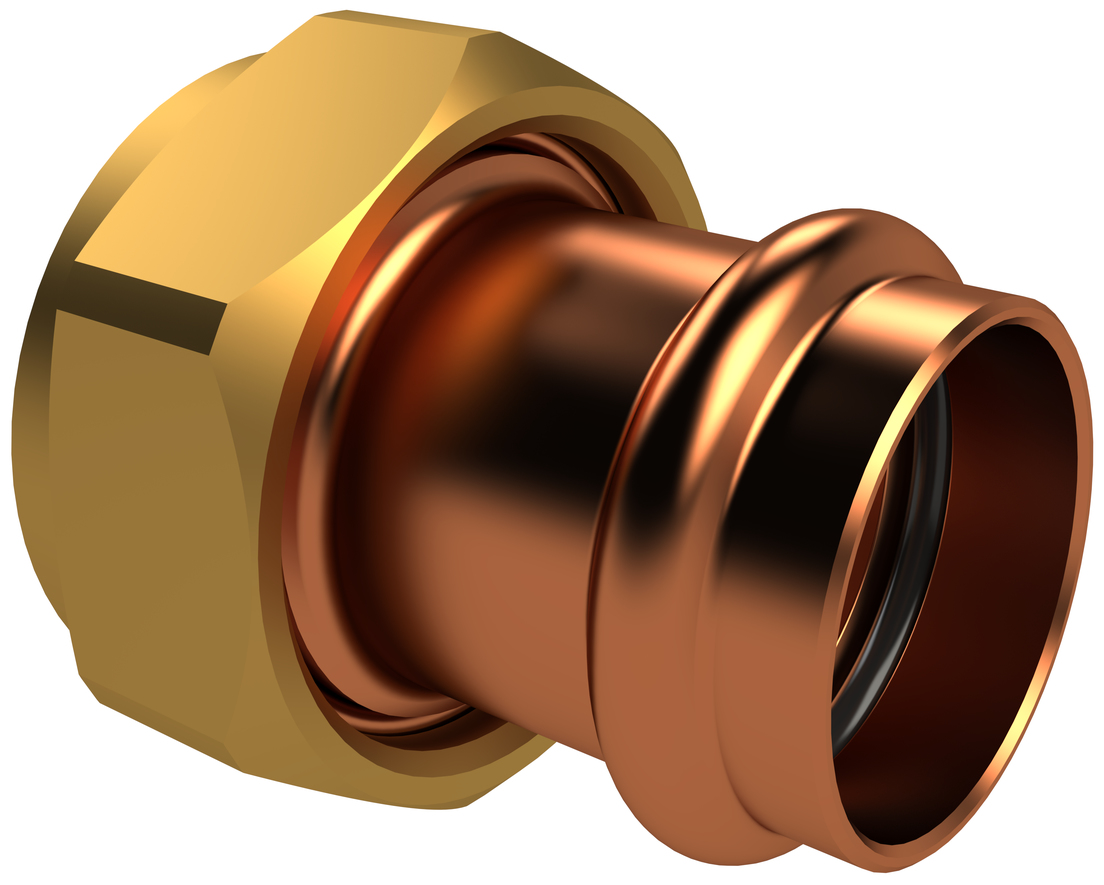

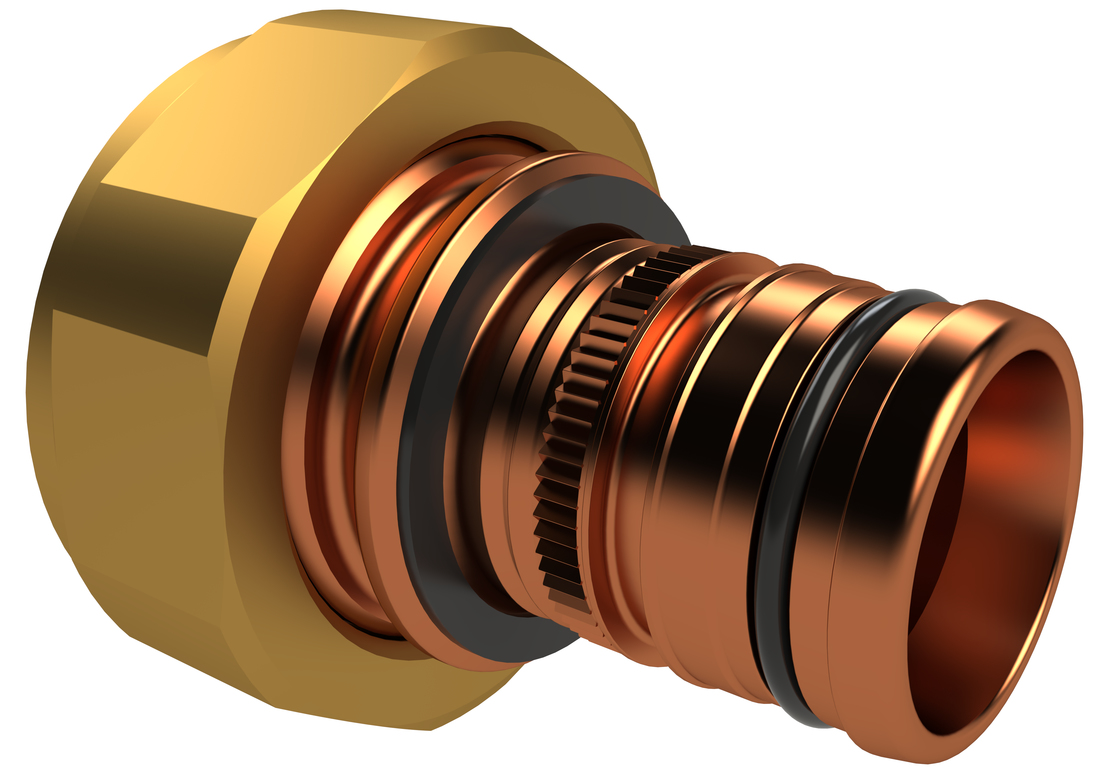

pressfit union connector, SANPRESS and PROFIPRESS

figure 476 30

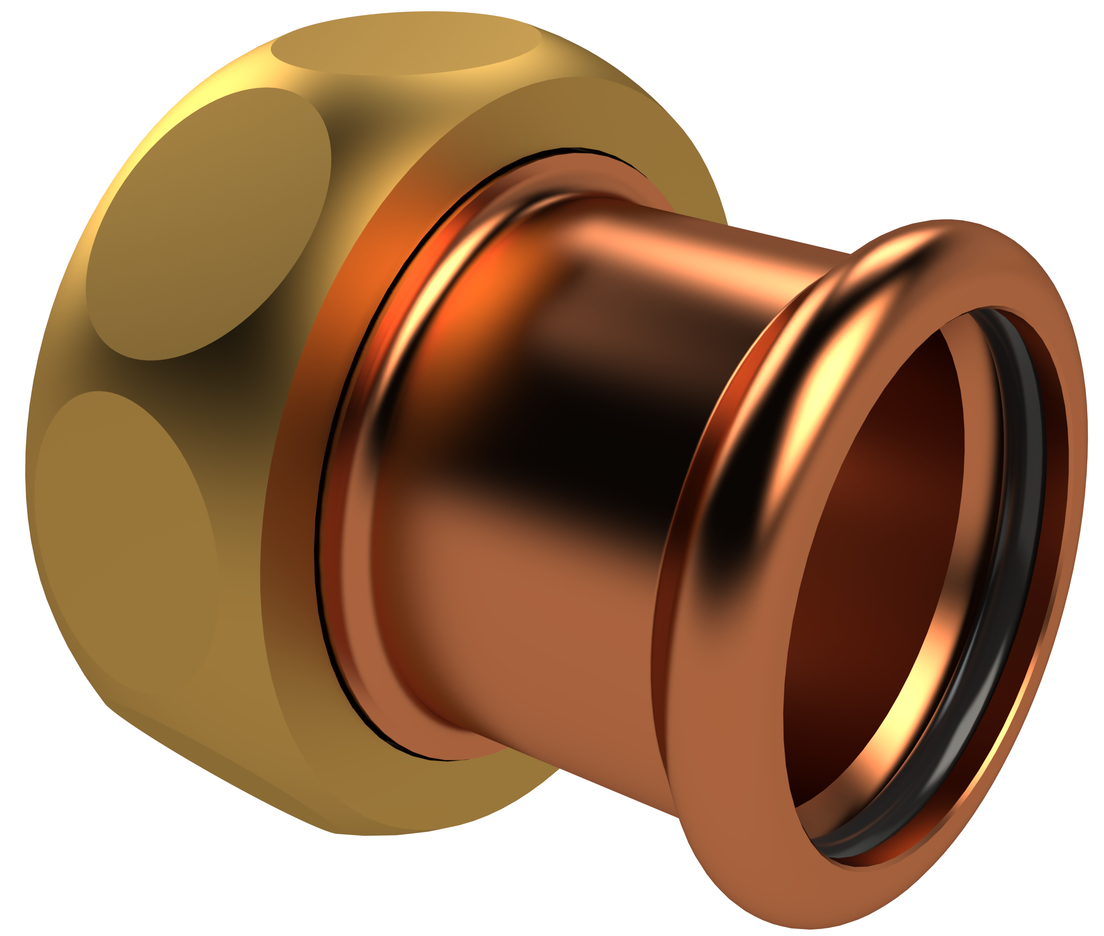

pressfit union connector, SANHA and NiroSan

figure 476 35

pressfit union connector, MEPLA

figure 476 40

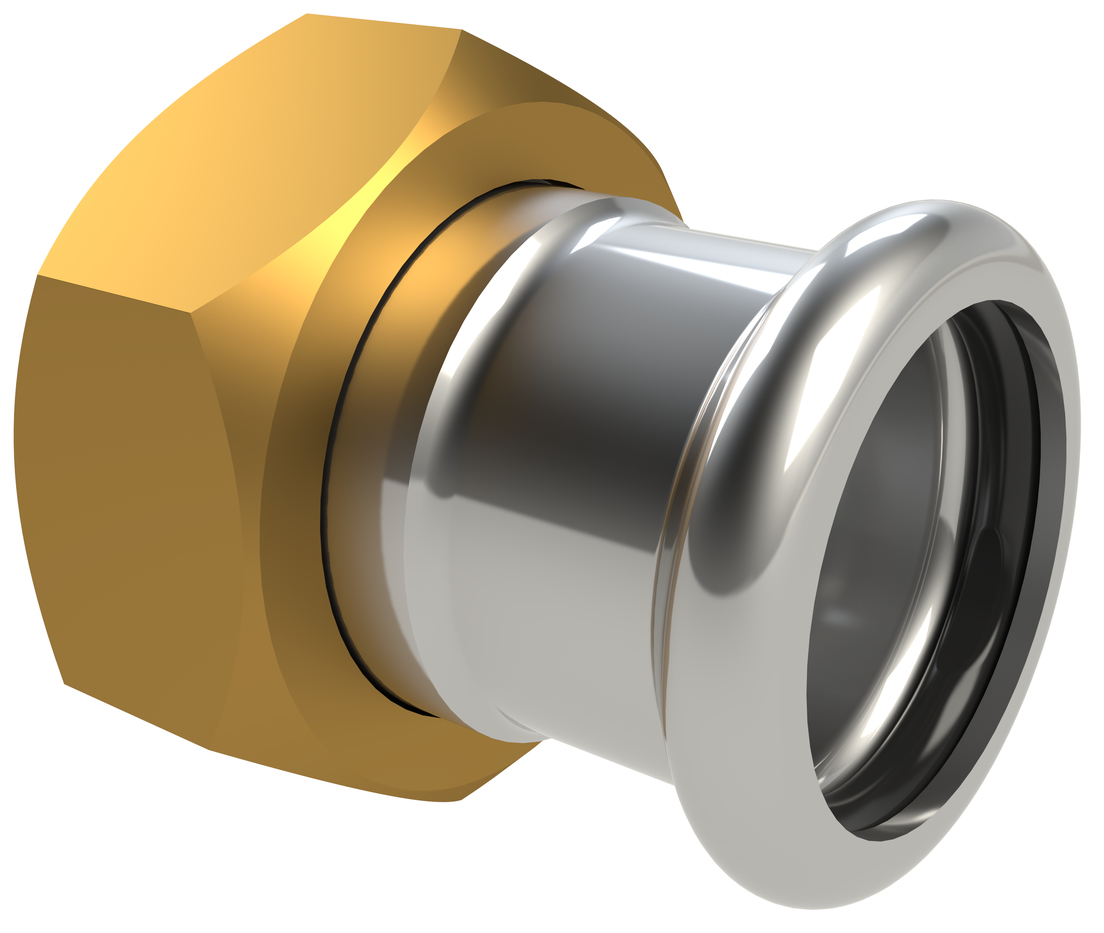

pressfit union connector, MAPRESS stainless steel

figure 476 20

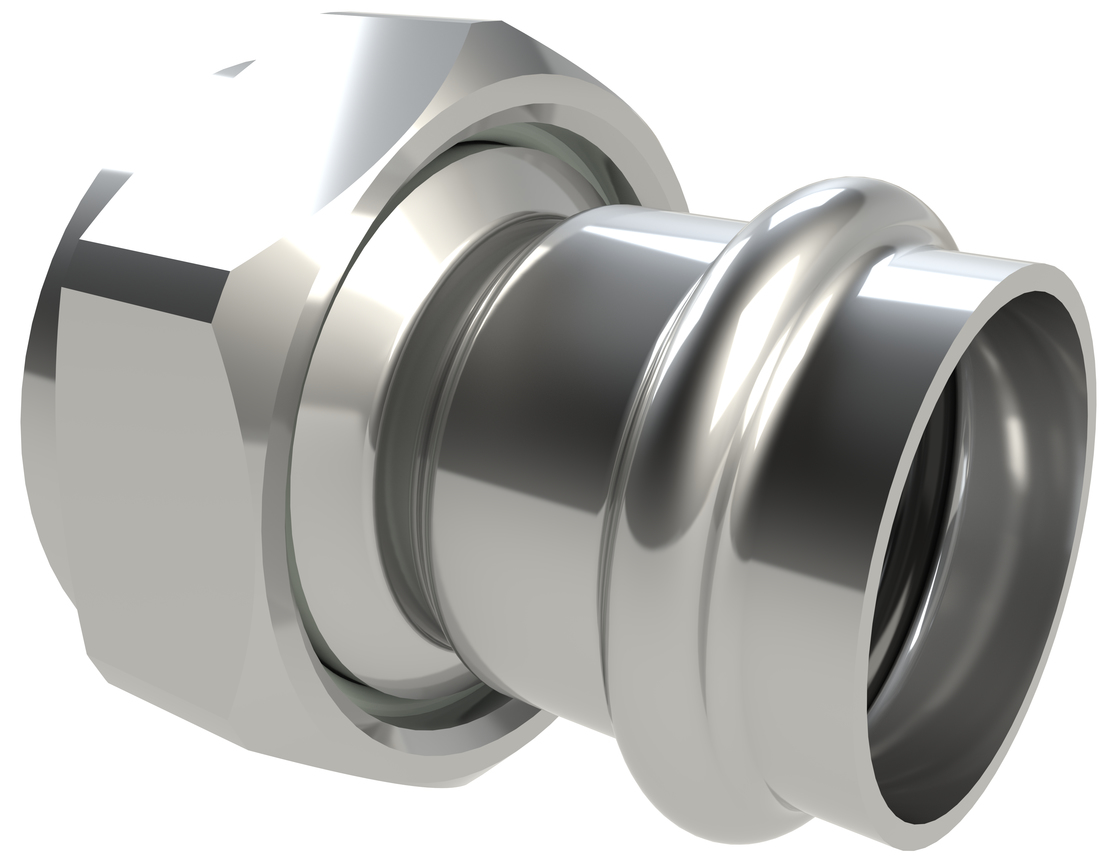

pressfit union connector, SANPRESS INOX

figure 476 70

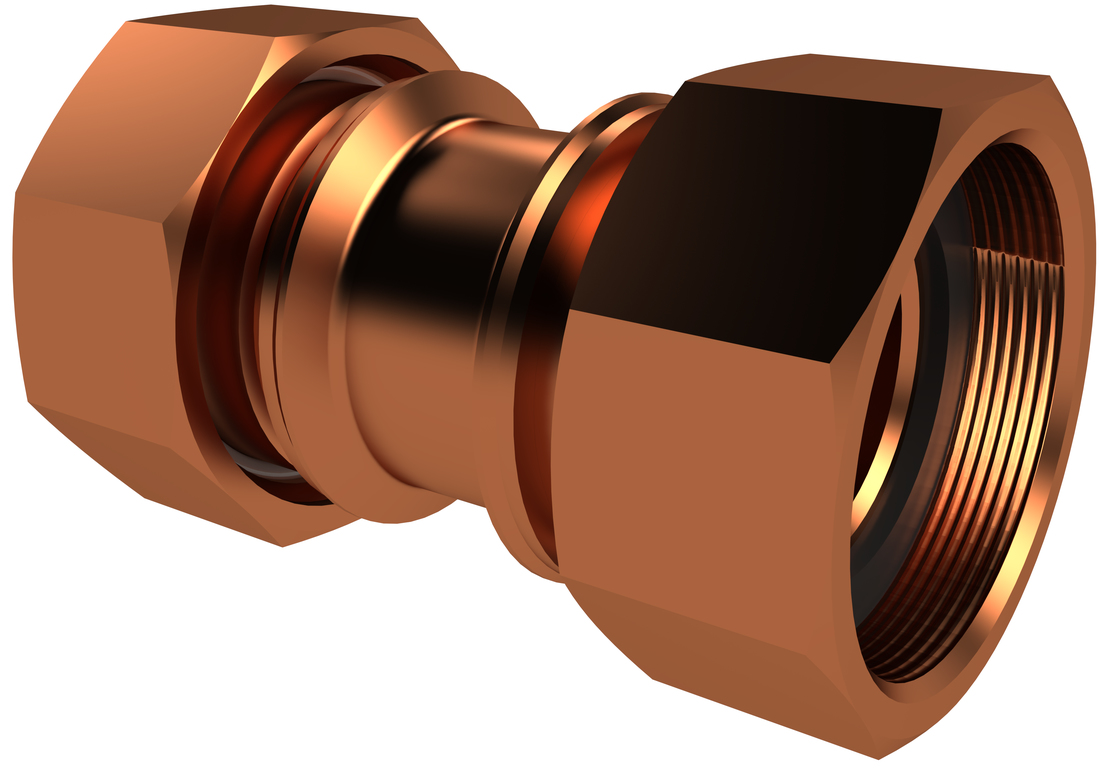

adaptor, double union nut

figure 101 06

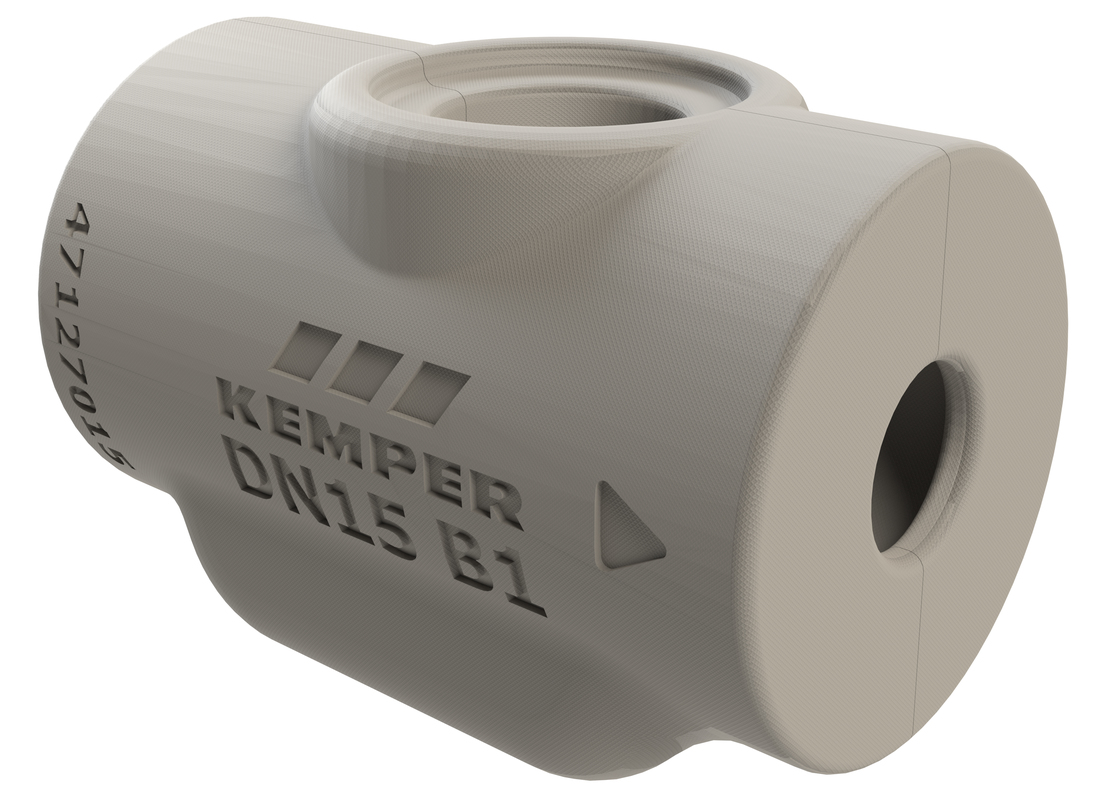

insulation shell for KHS CoolFlow cold water balancing valve

figure 471 27

Show all products

Spare parts

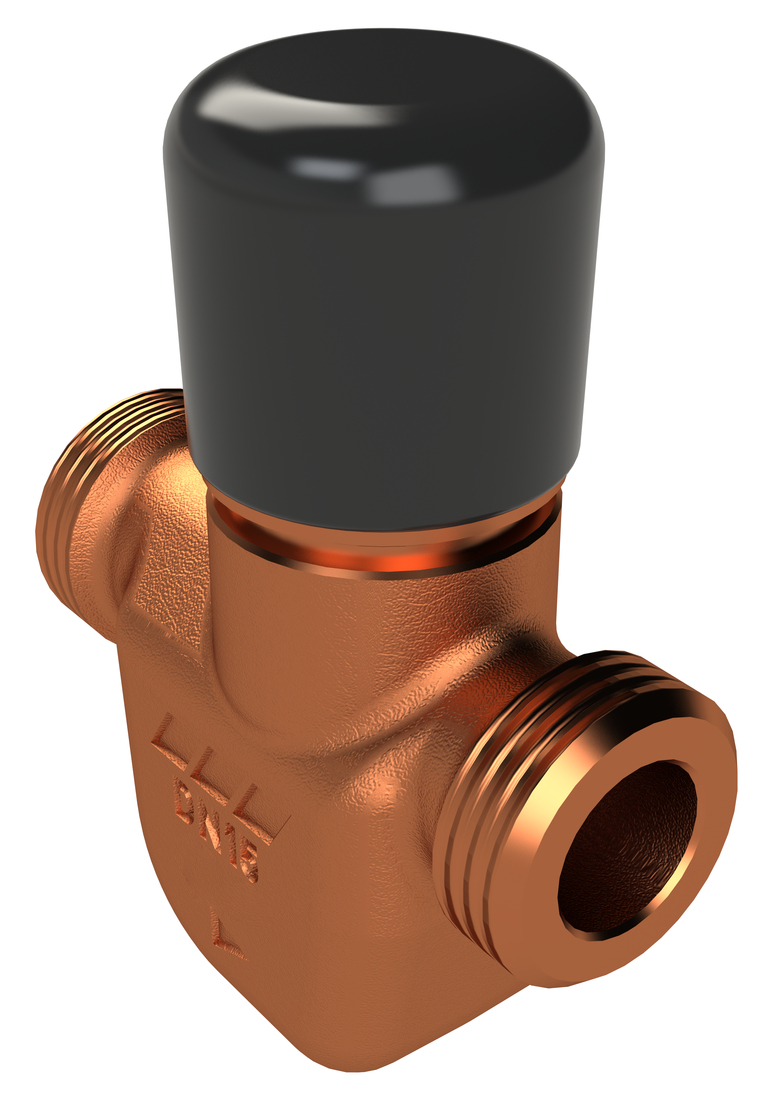

KHS CoolFlow cold water balancing valve, without actuator and flushing function

figure 617 0G

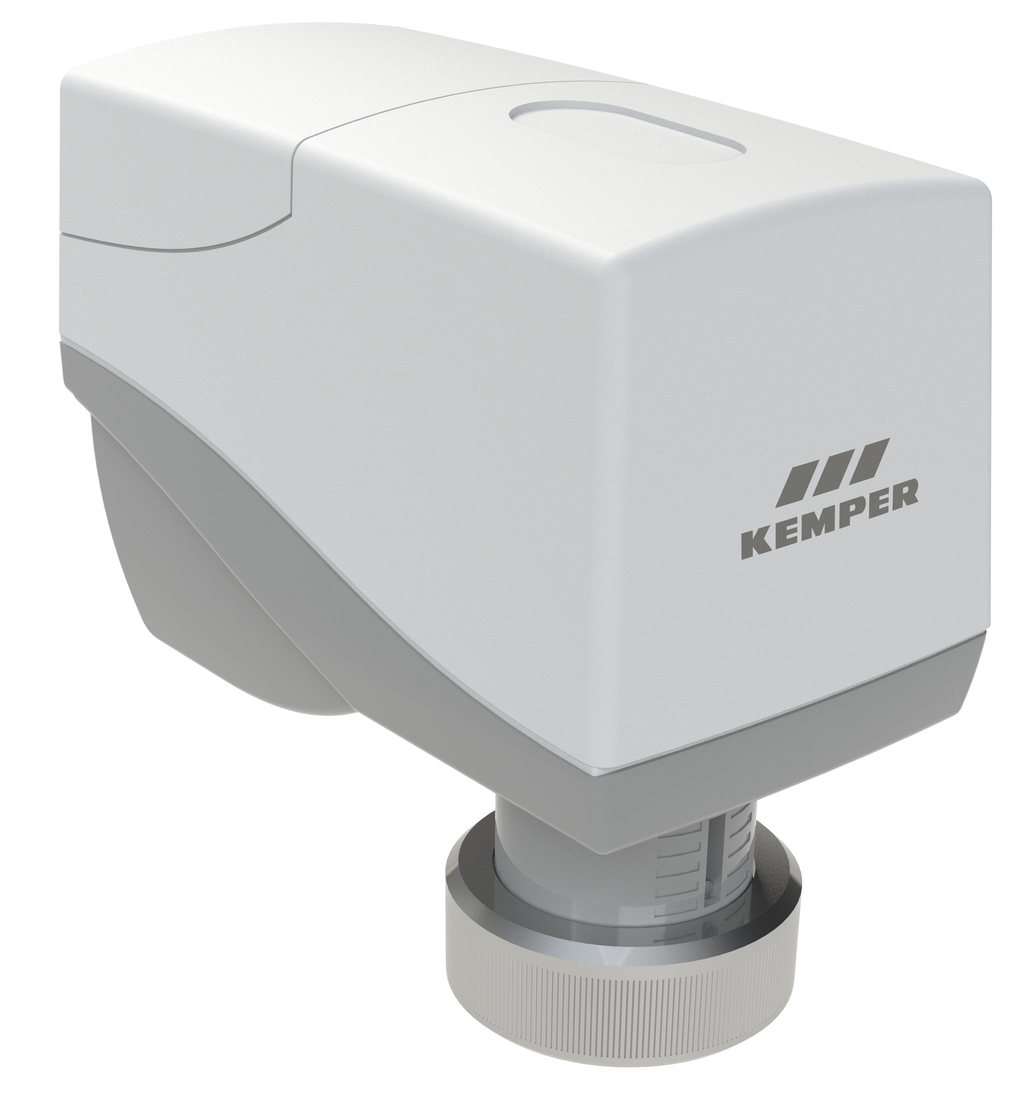

actuator 24V for KHS CoolFlow cold water balancing valve

figure 616 00
