KHS CoolFlow cold water balancing valve, with 230 V actuator, figure 615 0G

KHS CoolFlow cold water balancing valve, with 230 V actuator

figure 615 0G

thermostatic balancing valve with integrated flushing function
thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
for thermostatic, hydraulic balancing

Product datasheet PDF

Show planning data on pdod.de

figure 615 0G

figure 615 0G

Site navigation

Product features Standards & approvals Technical data CAD models Planning data Downloads Accessories Spare parts Accessory of

Product Features

thermostatic balancing valve with integrated flushing function
thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
for thermostatic, hydraulic balancing
thermostatic balancing unit
electrical shut-off device, can be combined with flushing system
for integration in existing KHS mini control system
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
maintenance-free EPDM spindle seal
PTFE seat gasket
water hammer free operation
free from dead spots
with isolating, balancing and pre-setting function
male union thread

Standards and Approvals

WRAS approval
plastic parts with KTW and W 270 approval
according to accepted materials list from German environmental agency
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

control range 15 °C - 22 °C
pressure rating PN 10
max. operating temperature 50 °C
max. ambient temperature 50 °C
protection class IP54
power supply 230 V AC
length of connection cable 1.5 m
wire cross section 3 x 0.75 mm²

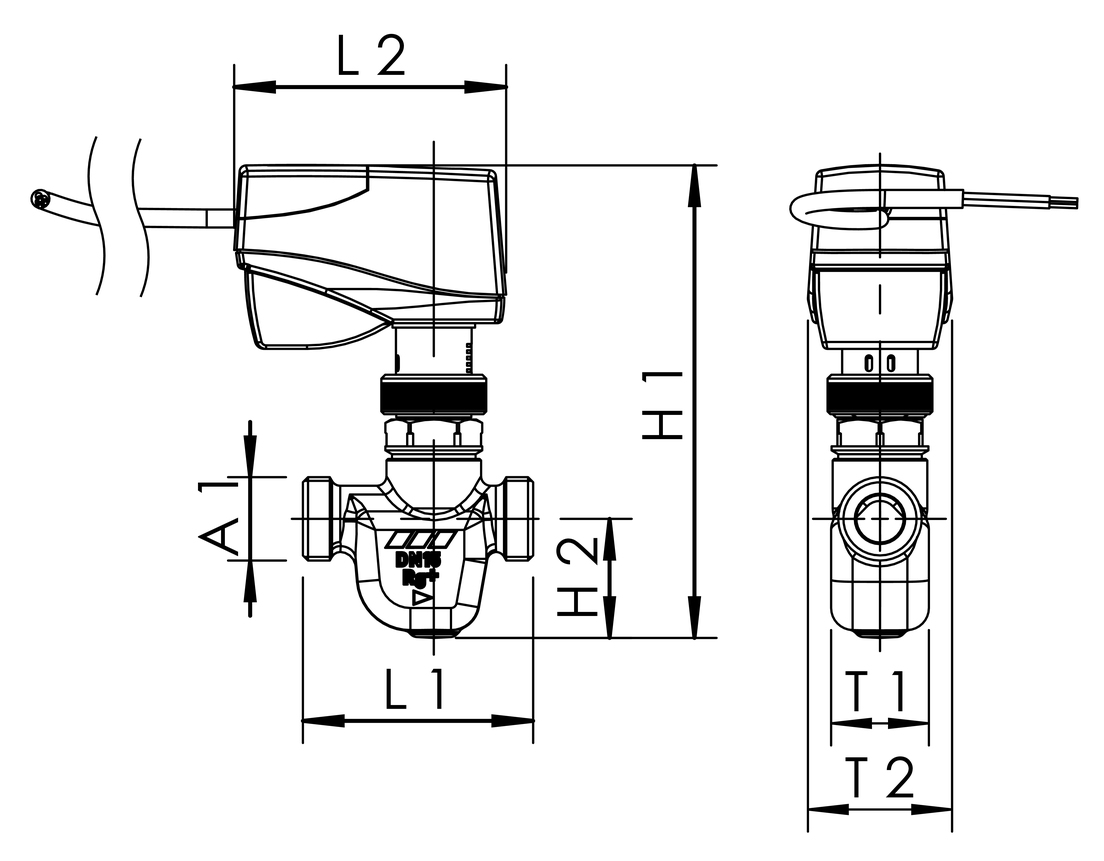

Part no.	DN	A1	H1 (mm)	H2 (mm)	L1 (mm)	L2 (mm)	T1 (mm)	T2 (mm)	cv min (m³/h)	Cv flush (m³/h)	cv (m³/h)	kg
6150G01500	15	G 3/4	150	37.8	73	86.2	31	45.7	0.03	2.2	1.8	0.90

CAD models

Part no.	DN	CAD model
6150G01500	15	Show 3D data

Planning data

Show planning data on pdod.de

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Brochure Hygiene System KHS

pdf (3.2 MB)

brochure for KHS CoolFlow cold water circulation

pdf (2.1 MB)

KHS Hygiene System Design Assistance

pdf (8.9 MB)

KHS Brochure for Planners

pdf (5.1 MB)

KHS Brochure for Operators

pdf (1.3 MB)

Instructions

File type

Installation and operating instructions KHS CoolFlow cold water regulating valve

pdf (8.5 MB)

Technical information

File type

KHS wiring instructions

pdf (438 KB)

Flow Diagram KHS CoolFlow cold water balancing valve

pdf (603 KB)

Accessory of

KHS Mini Control System SLAVE

figure 686 02 006

figure 686 02 006

KHS Mini Control System MASTER 2.1

figure 686 02 008

figure 686 02 008

Accessories

KHS Mini Control System SLAVE

figure 686 02 006

figure 686 02 006

pressfit union connector, MAPRESS stainless steel and copper

figure 476 22

figure 476 22

pressfit union connector, SANPRESS and PROFIPRESS

figure 476 30

figure 476 30

pressfit union connector, SANHA and NiroSan

figure 476 35

figure 476 35

pressfit union connector, MEPLA

figure 476 40

figure 476 40

pressfit union connector, MAPRESS stainless steel

figure 476 20

figure 476 20

pressfit union connector, SANPRESS INOX

figure 476 70

figure 476 70

adaptor, double union nut

figure 101 06

figure 101 06

KHS Mini Control System MASTER 2.1

figure 686 02 008

figure 686 02 008

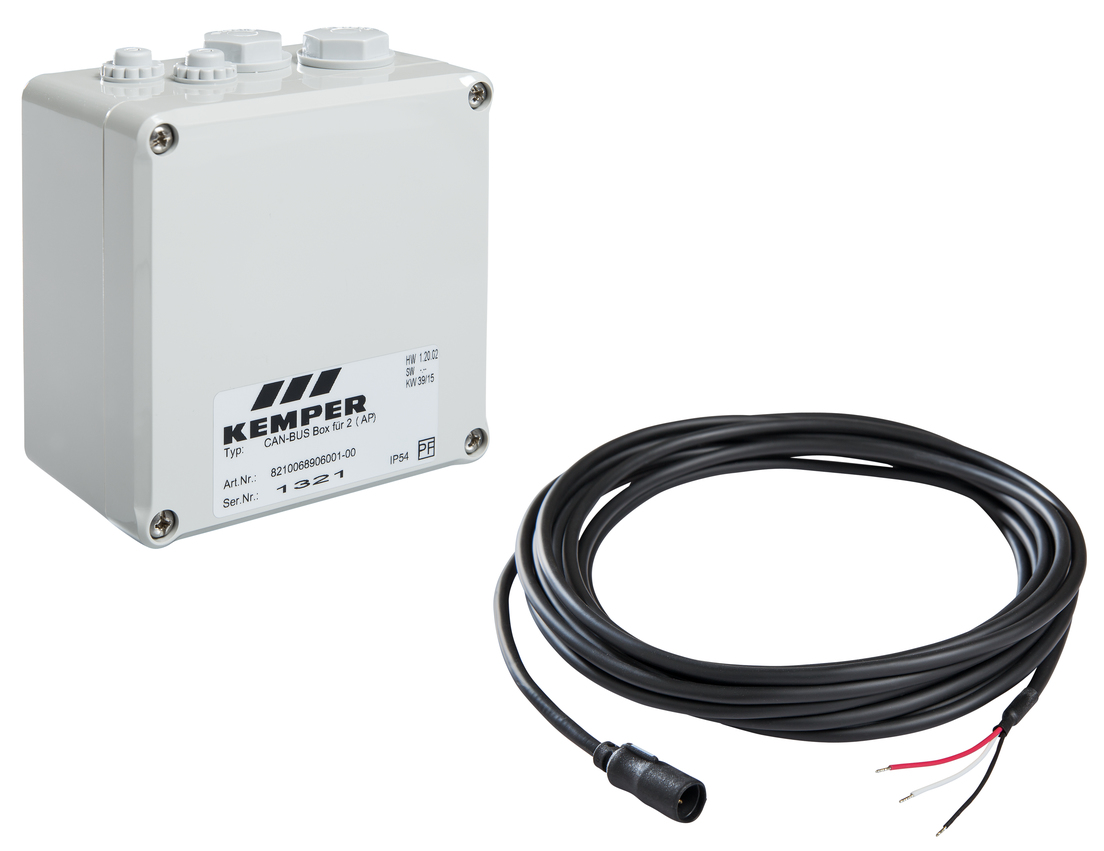

connection set surface-mounted CAN bus for KHS HS2^® hygiene flushing box
