KHS CoolFlow cold water circulation
More about the products

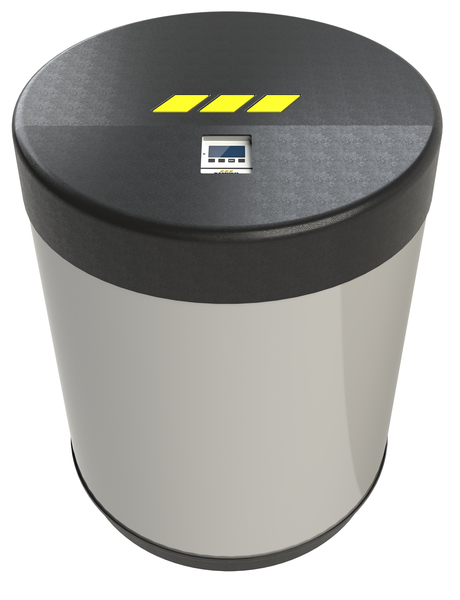

KHS CoolFlow cold water cooler, figure 610 01 001

KHS CoolFlow cold water cooler

figure 610 01 001

  • as flow-through drinking water cooler for cooling drinking water with integrated circulation pump
  • consisting of PWM-controlled circulation pump with gunmetal housing and integrated check valve
  • consisting of PWM-controlled operating fluid pump
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant to aggressive water, stainless steel and drinking water-approved plastics
  • plate heat exchanger made of stainless steel grade 1.4401/1.4404

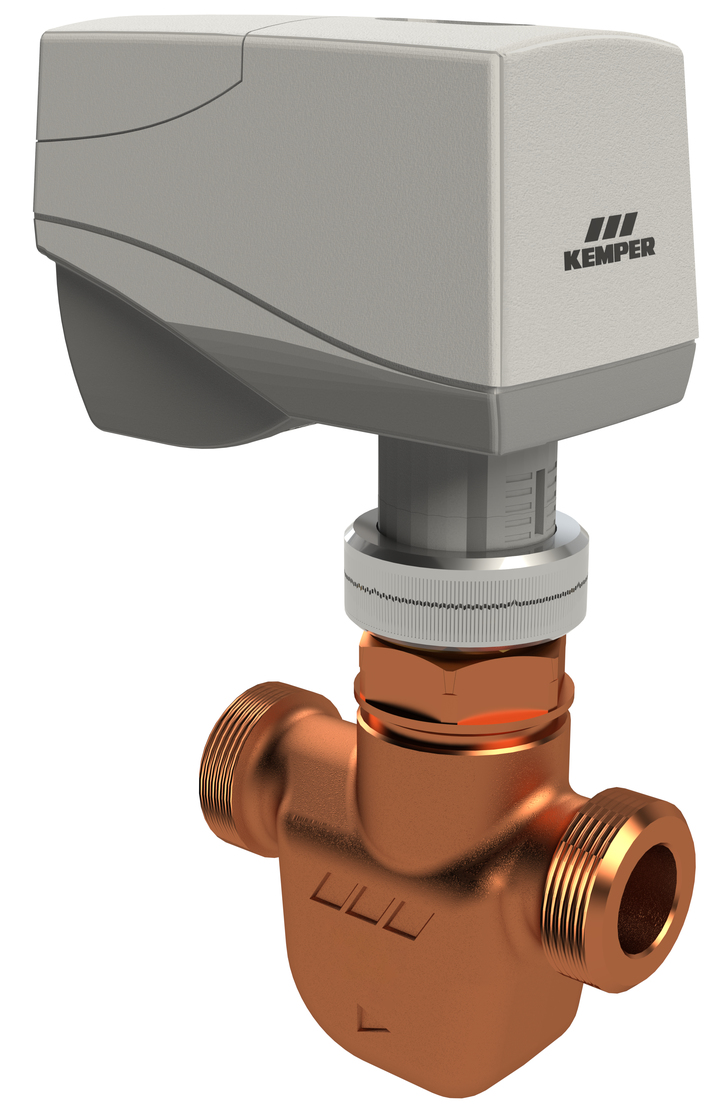

KHS CoolFlow cold water balancing valve, with 230 V actuator, figure 615 0G

KHS CoolFlow cold water balancing valve, with 230 V actuator

figure 615 0G

  • control range 15 °C - 22 °C
  • thermostatic balancing valve with integrated flushing function
  • thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
  • for integration in existing KHS mini control system
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • free from dead spots
  • male union thread
KHS CoolFlow cold water balancing valve, with 24 V actuator, figure 616 0G

KHS CoolFlow cold water balancing valve, with 24 V actuator

figure 616 0G

  • control range 15 °C - 22 °C
  • thermostatic balancing valve with integrated flushing function
  • thermostatic balancing valve for cold water return branches with kv-min ≥ 0.03
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • free from dead spots
  • male union thread

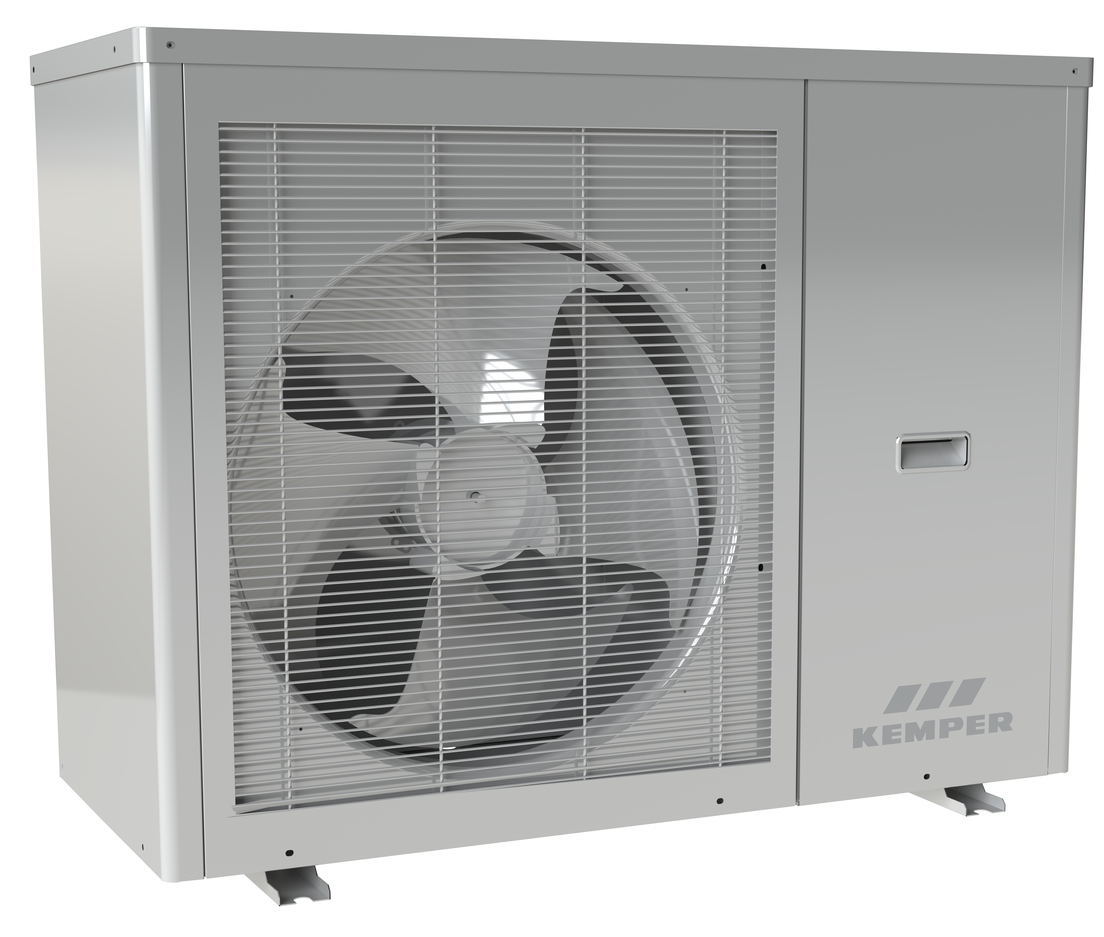

KHS CoolFlow Chiller, figure 618 01

KHS CoolFlow Chiller

figure 618 01

  • for cooling the KHS CoolFlow cold water cooler
  • air-cooled chiller in compact design for outdoor installation for energy-efficient operation of the KHS CoolFlow cold water circulation
  • infinitely variable speed regulation through thermal low-noise fan control for particularly low noise emissions
Products

KHS CoolFlow

Maintain temperature sustainably and economically

KEMPER KHS CoolFlow is an innovative solution for reliably maintaining hygienically safe cold water temperatures, even under unfavourable conditions.

High ambient temperatures in buildings often lead to a hygienically unsafe temperature increase of the cold drinking water in a very short time. Risk factors include hidden heat sources, lack of air conditioning or the installation of cold and hot water pipes in the same shafts. In buildings with high heat loads, countermeasures such as temperature-controlled flushing processes are often not sufficiently effective or are economically restricted.

CoolFlow supplements the KHS hygiene system with components for active temperature maintenance in cold water installations. A cooler and special thermostatic balancing valves with an operating range of 15°C to 20°C are used in a cold water circulation system. This can ensure continual temperature maintenance at < 20°C. In combination with innovative Flow-Splitter technology, the circulation system can even be led up to the tapping points. CoolFlow is an alternative to temperature maintenance through flushing and will generally pay for itself within a few years.
