DUO stop valve water meter box

figure 870 07

  • internal parts made of gunmetal, stainless steel and plastic
  • housing with G 2 coaxial thread for meter cartridges

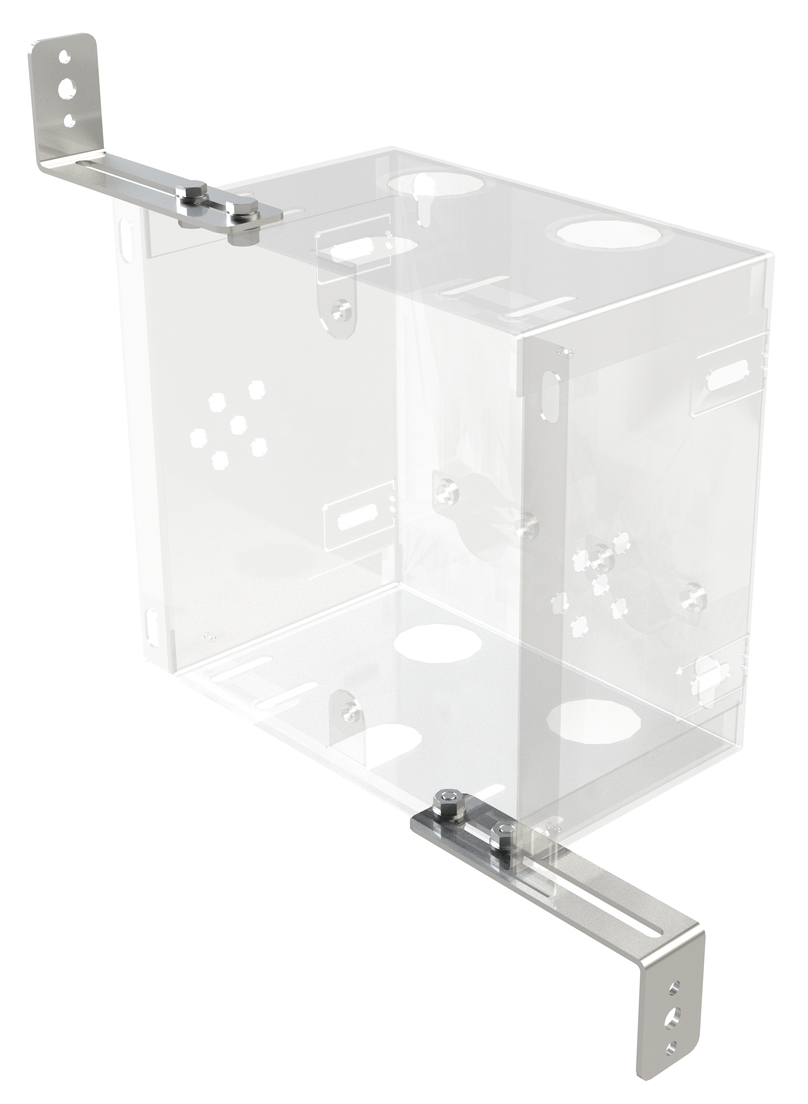

  • for wall surface installation, as a space-saving, galvanised steel case with versatile mounting options for existing wall systems

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 870 07
figure 870 07
figure 870 07
figure 870 07
figure 870 07

Product Features

  • internal parts made of gunmetal, stainless steel and plastic
  • housing with G 2 coaxial thread for meter cartridges
  • for wall surface installation, as a space-saving, galvanised steel case with versatile mounting options for existing wall systems
  • with two permanently integrated, cast in a single piece, non-rotating and sound-insulated stop water meter combinations
  • for installation of a cold and hot water
  • with overflow cap and dirt protection during installation for the construction phase
  • suitable for radio readouts

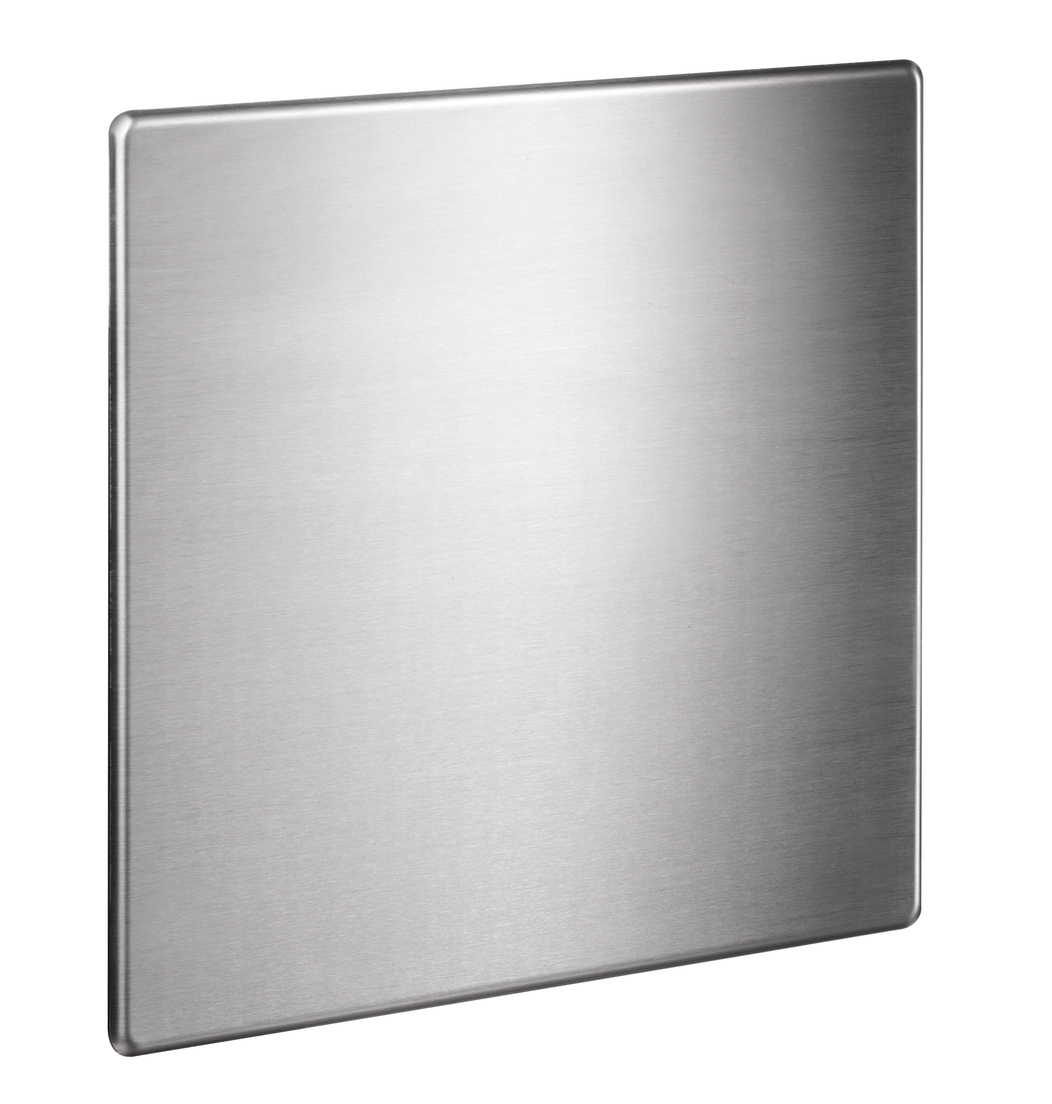

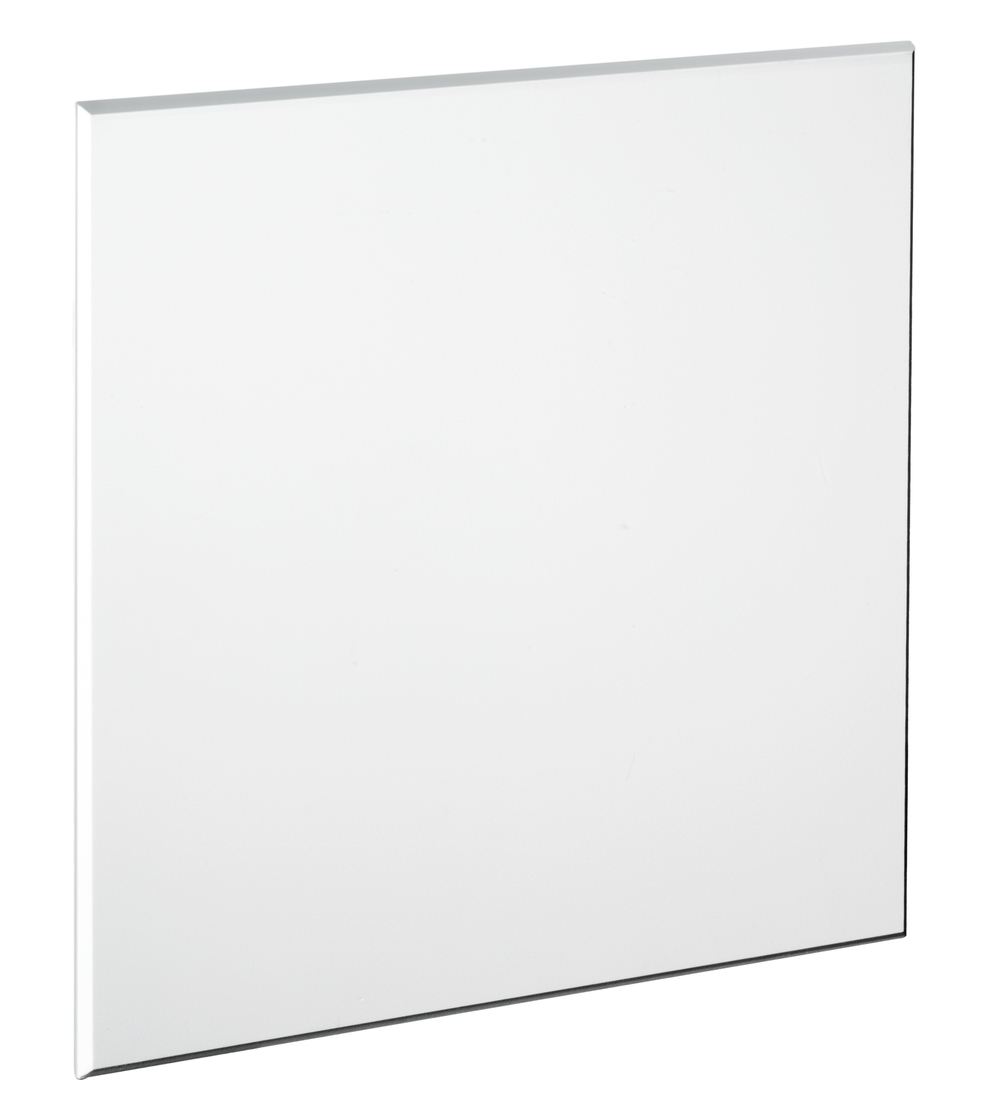

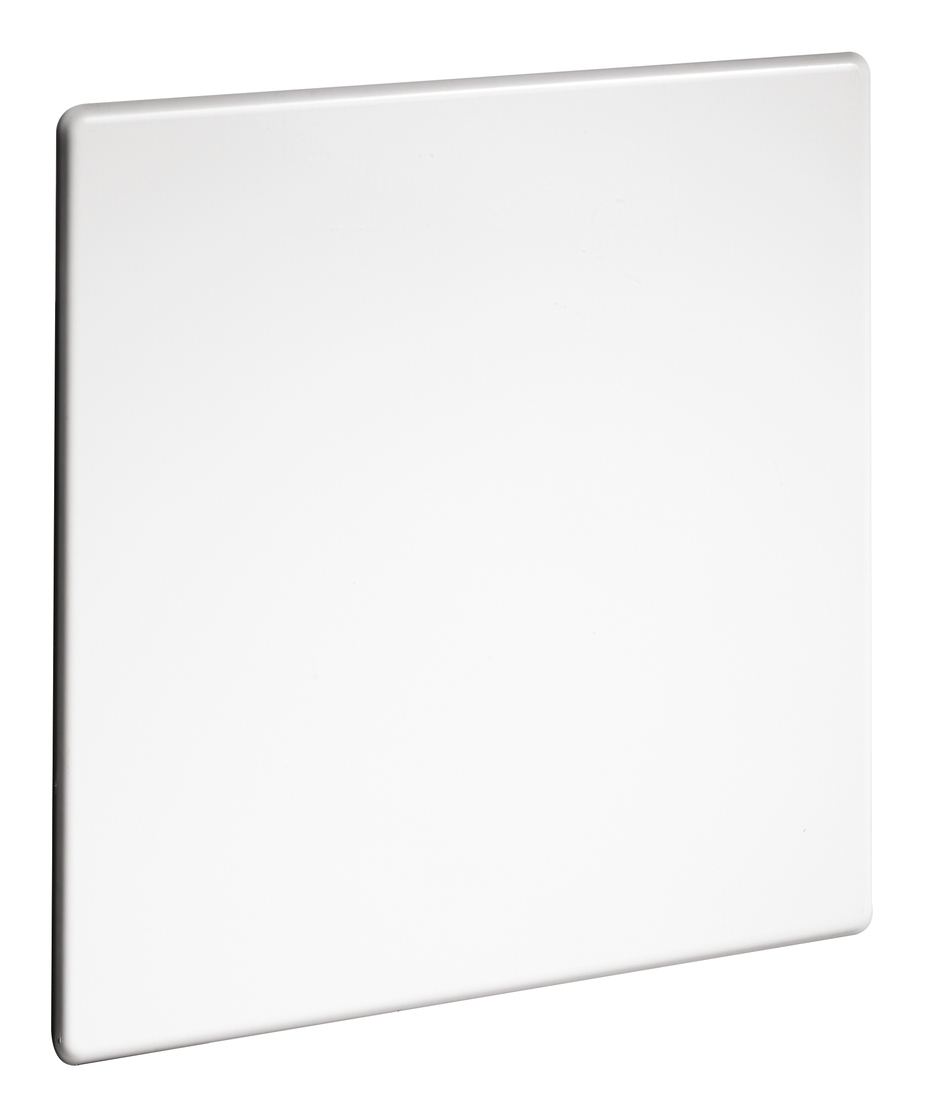

  • can be covered by optional front panels
  • with two flow rate-optimised direct seat valves and water meter housings
  • maintenance-free EPDM spindle seal
  • female pipe thread
  • handle with blue or red dot for identification
  • free from dead spots
  • wear-resistant stainless steel valve seat

Standards and Approvals

  • DVGW approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • DIN EN 1213
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • inside micrometer 88 mm
  • pressure rating PN 10
  • max. operating temperature 70 °C
  • short-term peak temperature 95 °C

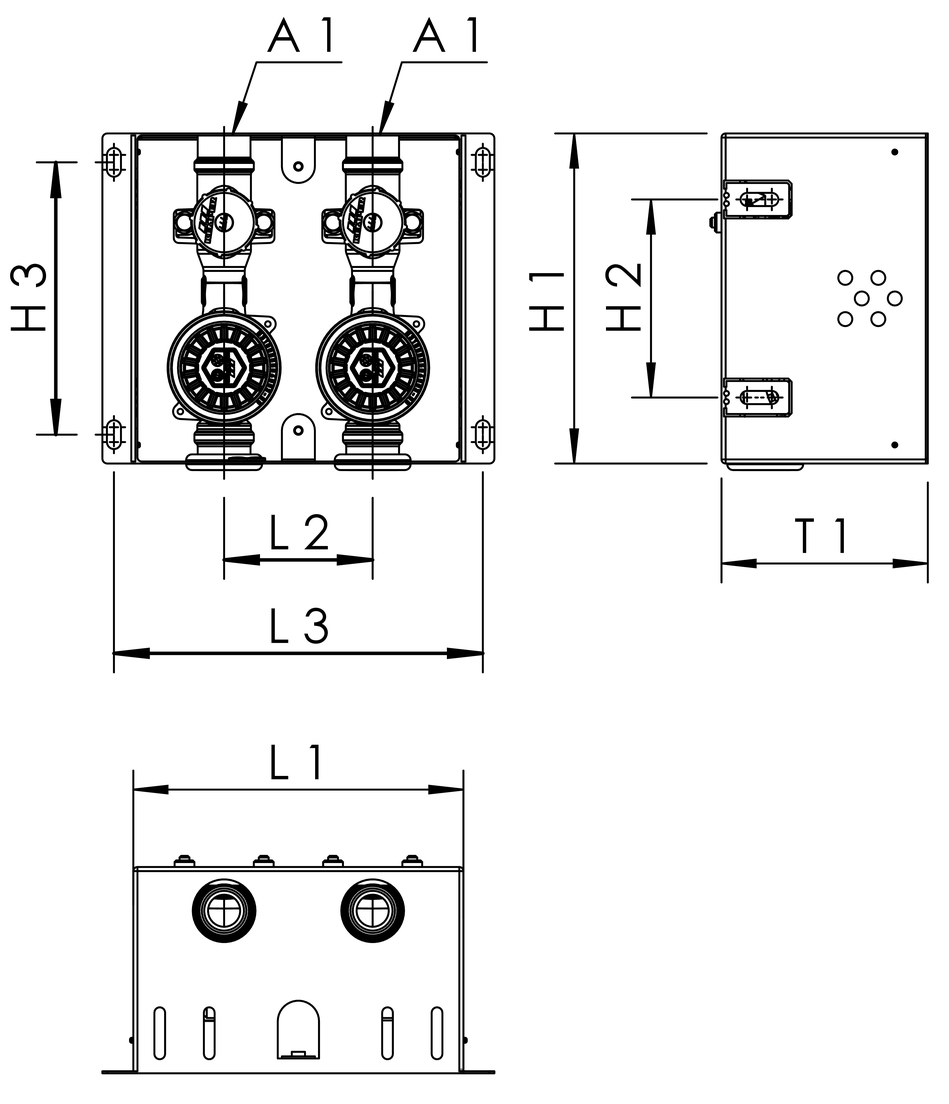

figure 870 07
Part no. DN A1 H1
(mm) 		H2
(mm) 		H3
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		T1
(mm) 		cv
(m³/h) 		kg
8700702000 20 Rp 3/4 200 120 165 200 90 223.5 125 4.38 3.99

CAD models & characteristic curves

Part no. DN CAD model Characteristic line
8700702000 20 Show 3D data Show characteristic curve

Planning data

Show planning data on pdod.de
