angled stop valve, FPT/union nut

figure 860 05

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • suitable for access door installation or flush mounted installation
  • maintenance-free EPDM spindle seal

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 860 05
figure 860 05
figure 860 05
figure 860 05
figure 860 05

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • suitable for access door installation or flush mounted installation
  • maintenance-free EPDM spindle seal
  • EPDM-seat gasket
  • stainless steel cone
  • inlet female thread, output coupling nut
  • gunmetal inner top part
  • handle with blue or red dot for identification
  • free from dead spots

Standards and Approvals

  • DVGW approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • DIN EN 1213
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 100 °C

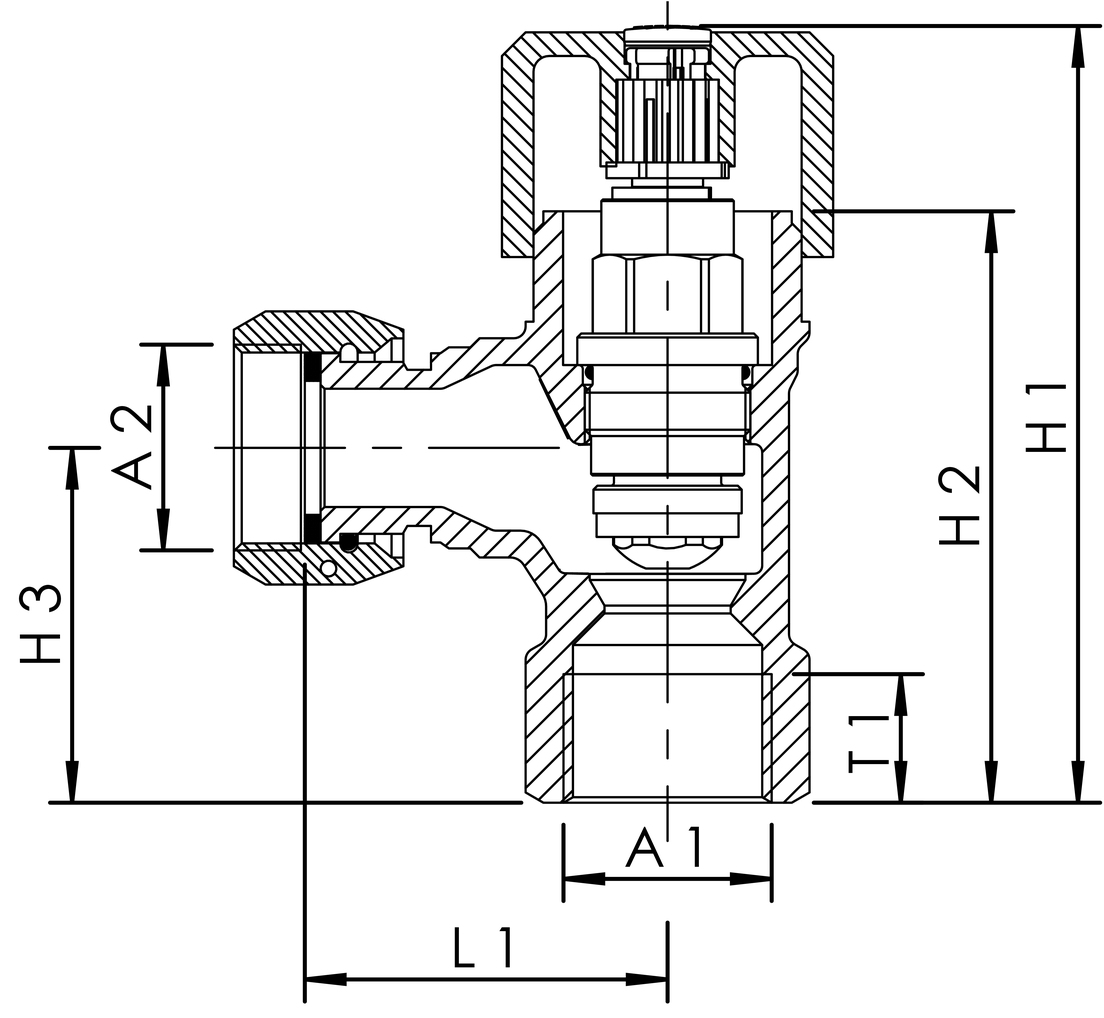

figure 860 05
Part no. DN A1 A2 H1
(mm) 		H2
(mm) 		H3
(mm) 		L1
(mm) 		T1
(mm) 		Zeta cv
(m³/h) 		kg
8600502000 20 Rp 3/4 G 3/4 98.5 75 45 46 16.3 6.8 6.1 0.44

CAD models & characteristic curves

Part no. DN CAD model Characteristic line
8600502000 20 Show 3D data Show characteristic curve

Planning data

Show planning data on pdod.de

Downloads

Data sheet
File type
Product datasheet
pdf
Brochures
File type
Building technology valves and systems
pdf (20.6 MB)
