KHS Flow-Splitter set - dynamic

figure 650 20

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 650 20
figure 650 20
figure 650 20
figure 650 20
figure 650 20

Product Features

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • KHS Flow-Splitter pass with female thread
  • plumbing unit feed pipe with female thread
  • plumbing unit return pipe with female thread
  • maintenance free
  • free from dead spots
  • incl. insulation shells
  • use only KHS isolating valves in the loop to maintain proper function of the KHS Flow-Splitter

Standards and Approvals

  • WRAS approval
  • according to DVGW worksheet W 570
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • insulation shell building material class B1 according to DIN 4102
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 90 °C
figure 650 20

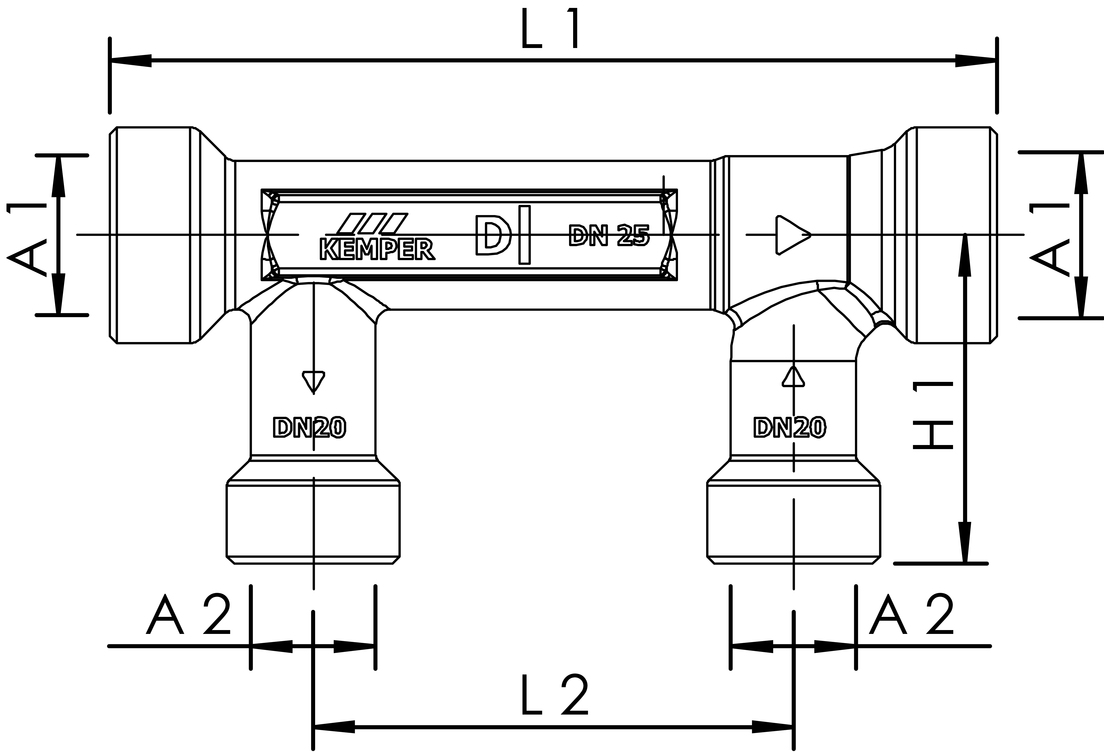

Part no. passage
DN 		Outlets
DN 		A1 A2 H1
(mm) 		L1
(mm) 		L2
(mm) 		kg
6502001500 15 15 Rp 1/2 Rp 1/2 48.5 185 100 0.59
6502002000 20 20 Rp 3/4 Rp 3/4 58.5 185 100 0.85
6502002500 25 20 Rp 1 Rp 3/4 68.5 185 100 1.02
6502003200 32 20 Rp 1 1/4 Rp 3/4 73.5 195 100 1.18
6502004000 40 25 Rp 1 1/2 Rp 1 78.5 206 100 1.68
6502005000 50 25 Rp 2 Rp 1 88.5 219 100 2.32
