KHS Flow-Splitter unit - dynamic, FPT

figure 650 06

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 650 06
figure 650 06
figure 650 06
figure 650 06
figure 650 06

Product Features

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • KHS Flow-Splitter pass with female thread
  • plumbing unit feed pipe with female thread
  • plumbing unit return pipe with female thread
  • maintenance free
  • free from dead spots
  • including KHS stop valve, female threaded, figure 385 00
  • maintenance-free EPDM spindle seal
  • removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
  • incl. insulation shell

Standards and Approvals

  • valve(s) with DVGW approval
  • WRAS approval
  • according to DVGW worksheet W 570
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • insulation shell building material class B1 according to DIN 4102
  • DIN EN 13828
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 90 °C

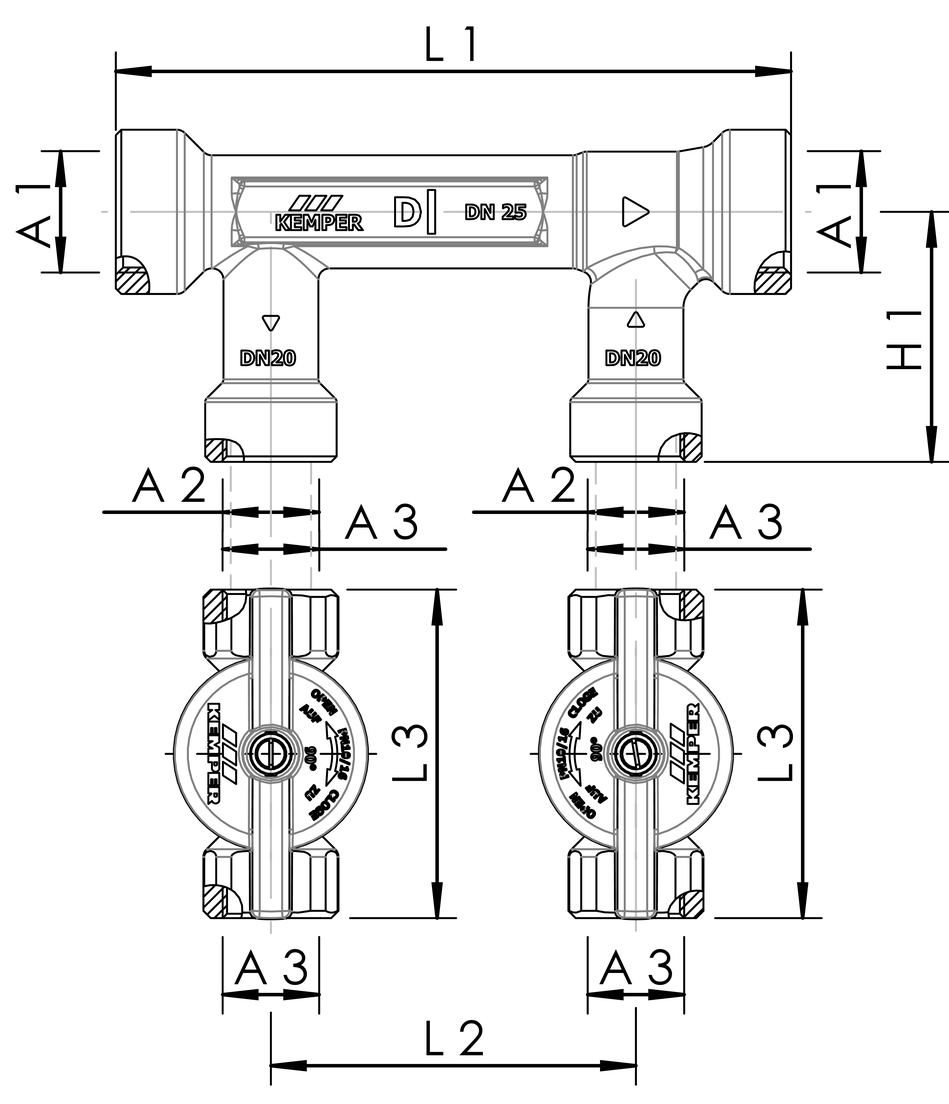

figure 650 06
Part no. passage
DN 		Outlets
DN 		VAV
DN 		A1 A2 A3 H1
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		kg
6500601500 15 15 15 Rp 1/2 Rp 1/2 Rp 1/2 48.5 185 100 84 1.69
6500602000 20 20 20 Rp 3/4 Rp 3/4 Rp 3/4 58.5 185 100 90 2.15
6500622000 20 20 15 Rp 3/4 Rp 3/4 Rp 1/2 58.5 185 100 84 1.94
6500602500 25 20 20 Rp 1 Rp 3/4 Rp 3/4 68.5 185 100 90 2.39
6500622500 25 20 15 Rp 1 Rp 3/4 Rp 1/2 68.5 185 100 84 2.15
6500603200 32 20 20 Rp 1 1/4 Rp 3/4 Rp 3/4 73.5 195 100 90 2.51
6500623200 32 20 15 Rp 1 1/4 Rp 3/4 Rp 1/2 73.5 195 100 84 2.32
6500604000 40 25 25 Rp 1 1/2 Rp 1 Rp 1 78.5 206 100 99 3.59
6500624000 40 25 15 Rp 1 1/2 Rp 1 Rp 1/2 78.5 206 100 84 2.93
6500644000 40 25 20 Rp 1 1/2 Rp 1 Rp 3/4 78.5 206 100 90 3.11
6500605000 50 25 25 Rp 2 Rp 1 Rp 1 88.5 219 100 99 4.17
6500625000 50 25 15 Rp 2 Rp 1 Rp 1/2 88.5 219 100 84 3.54
6500645000 50 25 20 Rp 2 Rp 1 Rp 3/4 88.5 219 100 90 3.75
