KHS Flow-Splitter unit - dynamic, union thread

figure 650 02

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 650 02
figure 650 02
figure 650 02
figure 650 02
figure 650 02

Product Features

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • KHS Flow-Splitter pass with union thread
  • plumbing unit feed pipe with union nut
  • plumbing unit return pipe with union nut
  • maintenance free
  • free from dead spots
  • including KHS stop valves, union thread, figure 386 0G
  • maintenance-free EPDM spindle seal
  • removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
  • incl. insulation shell

Standards and Approvals

  • valve(s) with DVGW approval
  • WRAS approval
  • according to DVGW worksheet W 570
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • insulation shell building material class B1 according to DIN 4102
  • DIN EN 13828
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 90 °C

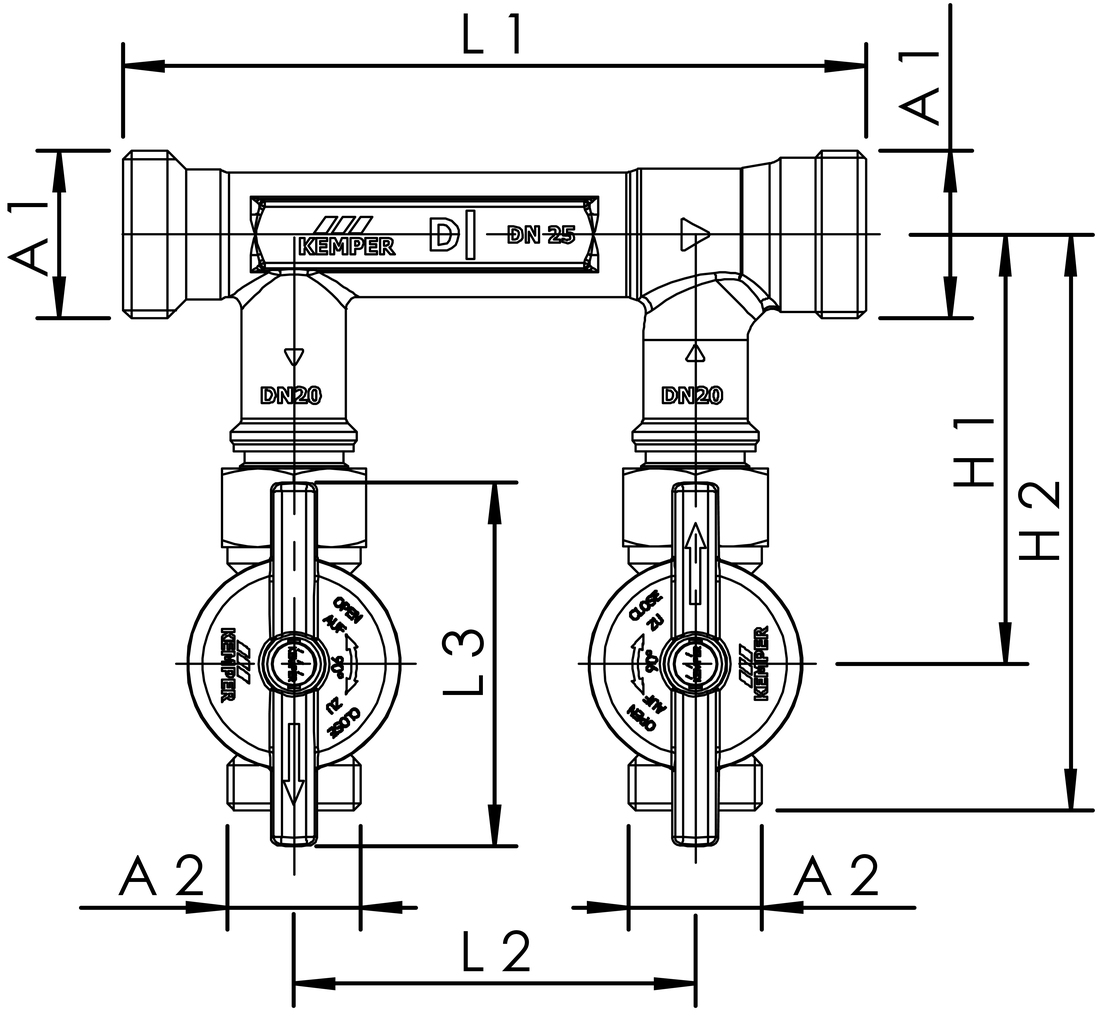

figure 650 02
Part no. passage
DN 		Outlets
DN 		VAV
DN 		A1 A2 H1
(mm) 		H2
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		kg
6500201500 15 15 15 G 3/4 G 3/4 84.5 118.5 185 100 90 1.63
6500202000 20 20 20 G 1 G 1 97 133.5 185 100 90 1.92
6500202500 25 20 20 G 1 1/4 G 1 107 143.5 185 100 90 2.11
6500203200 32 20 20 G 1 1/2 G 1 112 148.5 195 100 90 2.34
6500204000 40 25 25 G 1 3/4 G 1 1/4 124.5 168.5 206 100 90 3.46
6500205000 50 25 25 G 2 3/8 G 1 1/4 134.5 178.5 219 100 90 4.06
