leak detection system with spring return actuator, figure 620 01

leak detection system with spring return actuator

figure 620 01

active monitoring system with alarm signal to protect against water damage by reliable detection of leakage in water distribution systems by means of water sensors
consisting of control unit, water sensor and loaded KHS isolating valve PLUS with spring return actuator 230V, figure 686 05
low pressure loss

Site navigation

active monitoring system with alarm signal to protect against water damage by reliable detection of leakage in water distribution systems by means of water sensors
consisting of control unit, water sensor and loaded KHS isolating valve PLUS with spring return actuator 230V, figure 686 05
low pressure loss
soft close stop valve to avoid water hammer
for new build and retrofit
with the functional options: leakage monitoring and timed-controlled protection, leakage monitoring and time-controlled flushing of the drinking water system, protection without leakage monitoring
leakage control system with integrated timer, for the connection of up to two reporting lines with maximum 25 water sensors, as well as for the connection of max. 10 parallel-operated maximum flow isolating ball valves
with detachable visual and / or acoustic error signal
max. 16 programmable events
display with background light

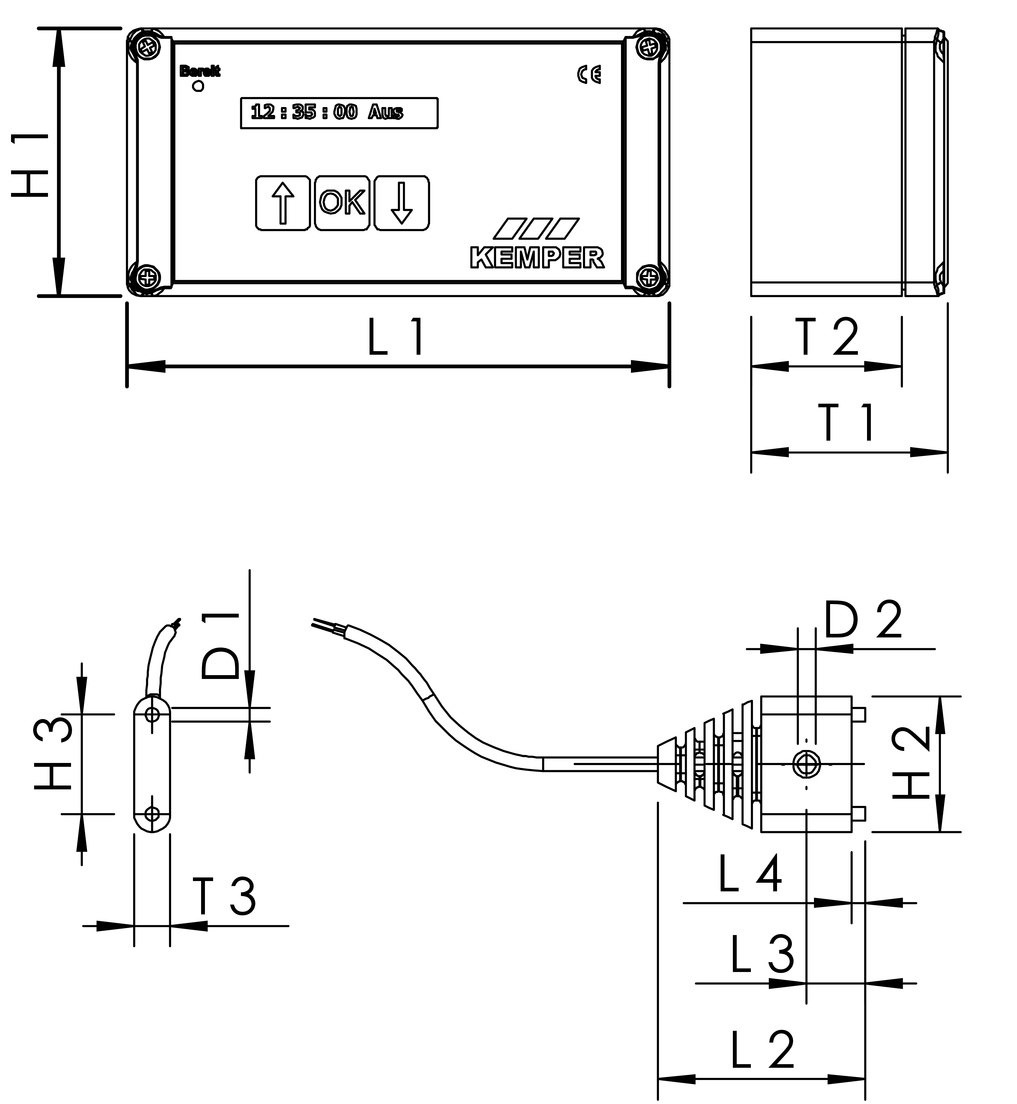

Part no.	DN	A1	D1 (mm)	D2 (mm)	H1 (mm)	H2 (mm)	H3 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	T1 (mm)	T2 (mm)	T3 (mm)	kg
6200101500	15	G 3/4	3	4	79	30	22	160	46	13	3	58	44.5	8	2.77
6200102000	20	G 1	3	4	79	30	22	160	46	13	3	58	44.5	8	2.82
6200102500	25	G 1 1/4	3	4	79	30	22	160	46	13	3	58	44.5	8	2.94
6200103200	32	G 1 1/2	3	4	79	30	22	160	46	13	3	58	44.5	8	3.24

Part no.	DN	CAD model	Characteristic line
6200101500	15	Show 3D data	Show characteristic curve
6200102000	20	Show 3D data	Show characteristic curve
6200102500	25	Show 3D data	Show characteristic curve
6200103200	32	Show 3D data	Show characteristic curve
