Y-strainer

figure 605 00

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

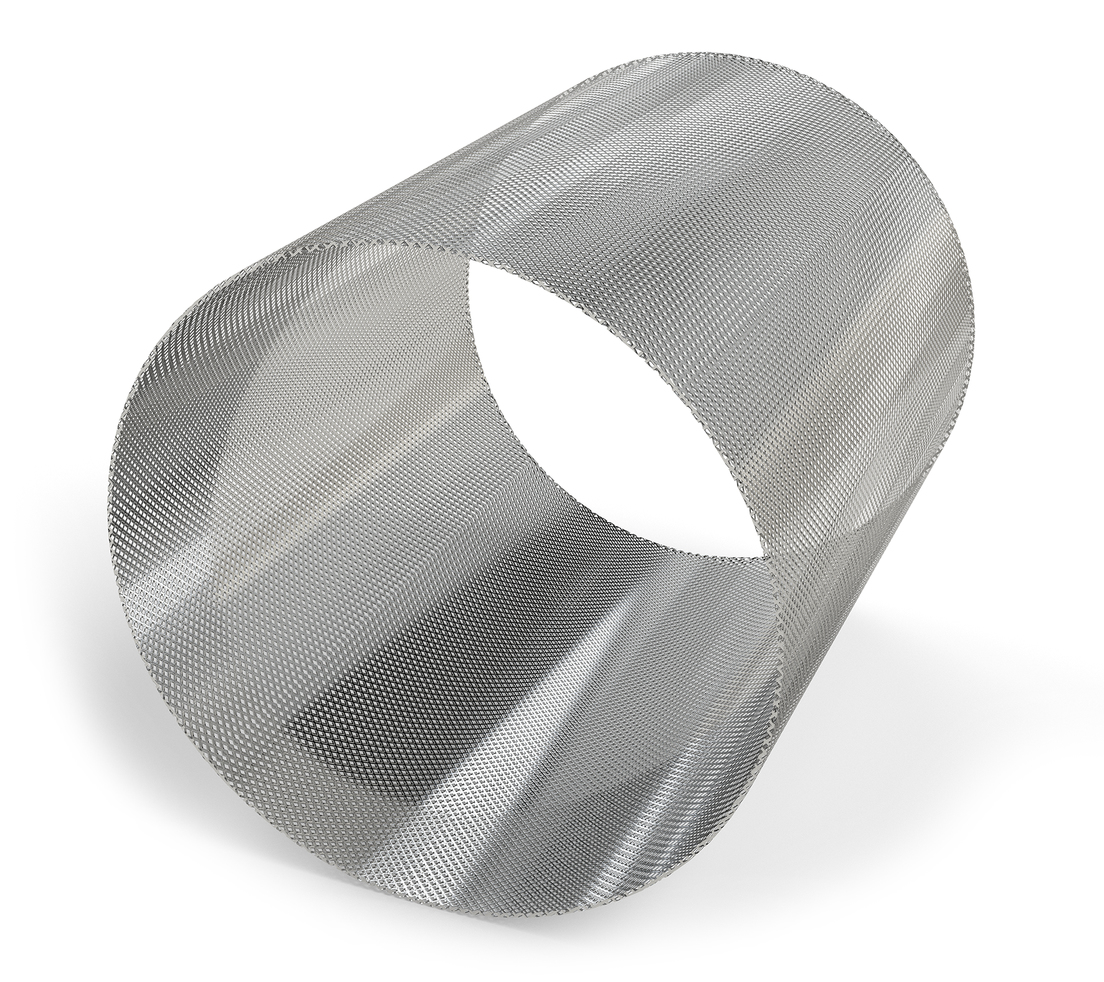

  • easily replaceable double mesh made of stainless steel
  • flange connection

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 605 00
figure 605 00
figure 605 00
figure 605 00
figure 605 00

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • easily replaceable double mesh made of stainless steel
  • flange connection
  • for any installation position

Standards and Approvals

  • according to accepted materials list from German environmental agency
  • DIN EN 558-1
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 200 °C
  • mesh width outer supporting sieve 0.6 mm
  • mesh width inner screen 0.3 mm

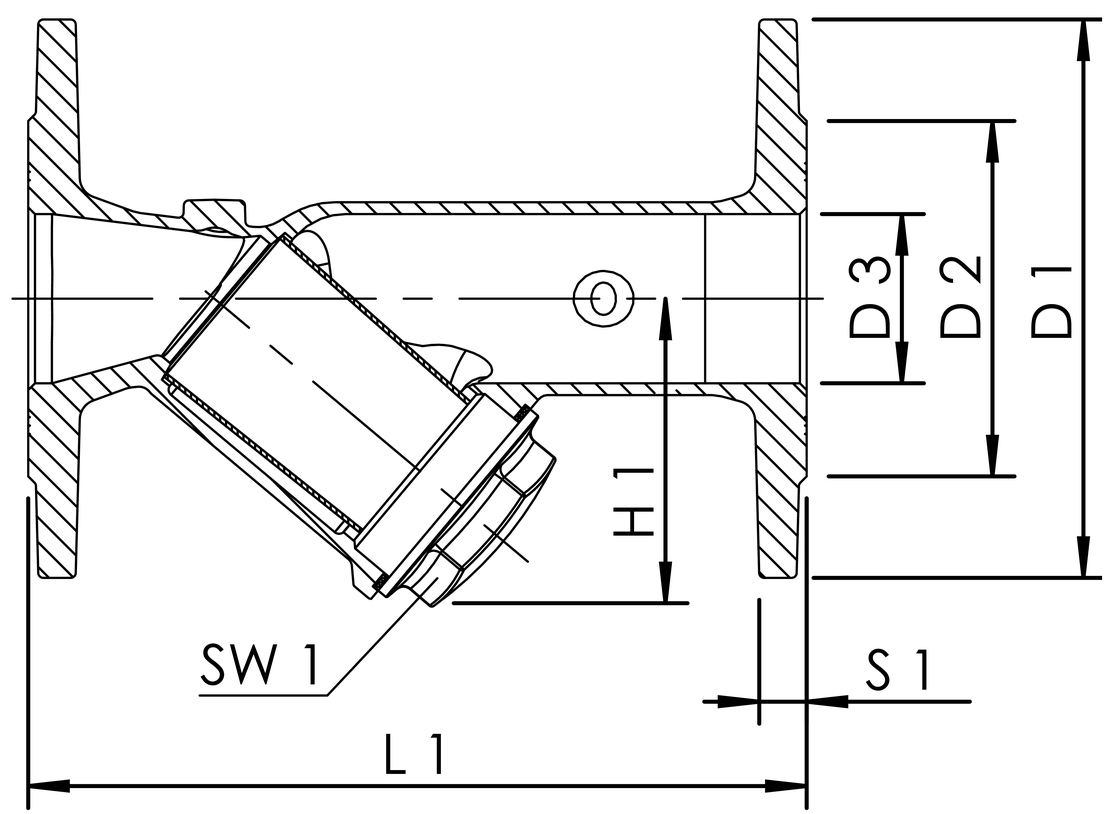

figure 605 00
Part no. DN bolt holes D1
(mm) 		D2
(mm) 		D3
(mm) 		H1
(mm) 		L1
(mm) 		S1
(mm) 		SW1
(mm) 		Zeta cv
(m³/h) 		kg
6050005000 50 4 165 102 50 91 230 14 50 4.4 47.1 5.88
6050006500 65 4 185 122 65 101 290 15 60 4.2 81.6 8.65
6050008000 80 8 200 138 80 112 310 16 60 3.9 128 12.63
6050010000 100 8 220 158 100 151 350 18 70 16.85

CAD models & characteristic curves

Part no. DN CAD model Characteristic line
6050005000 50 Show 3D data Show characteristic curve
6050006500 65 Show 3D data Show characteristic curve
6050008000 80 Show 3D data Show characteristic curve
6050010000 100
