RG120 change stopper including extension for set-up dimensions to 110 mm

figure 596 15

  • chrome-plated cap
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • plastic sleeve

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 596 15
figure 596 15
figure 596 15
figure 596 15
figure 596 15

Product Features

  • chrome-plated cap
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • plastic sleeve
  • chrome-plated collar
  • easy assembly with 90° rotation
  • with turnable top

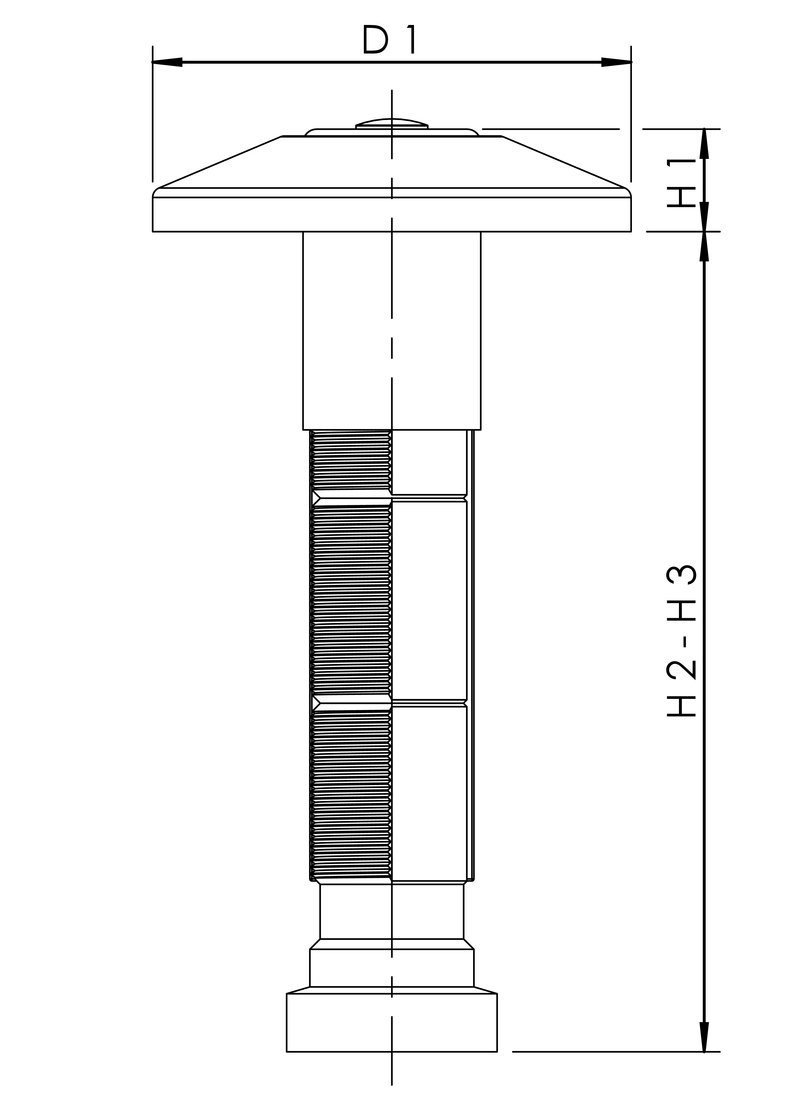

Part no. for DN D1
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		kg
5961502000 20 70 15 0 120 0.14
