RG120 grip top die-cast zinc set-up dimensions 30 mm to 110 mm

figure 596 12

  • chrome-plated zinc diecasting
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • plastic sleeve

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 596 12
figure 596 12
figure 596 12
figure 596 12
figure 596 12

Product Features

  • chrome-plated zinc diecasting
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • plastic sleeve
  • chrome-plated collar
  • easy assembly with 90° rotation
  • including red and blue indicator plates to indicate hot or cold water

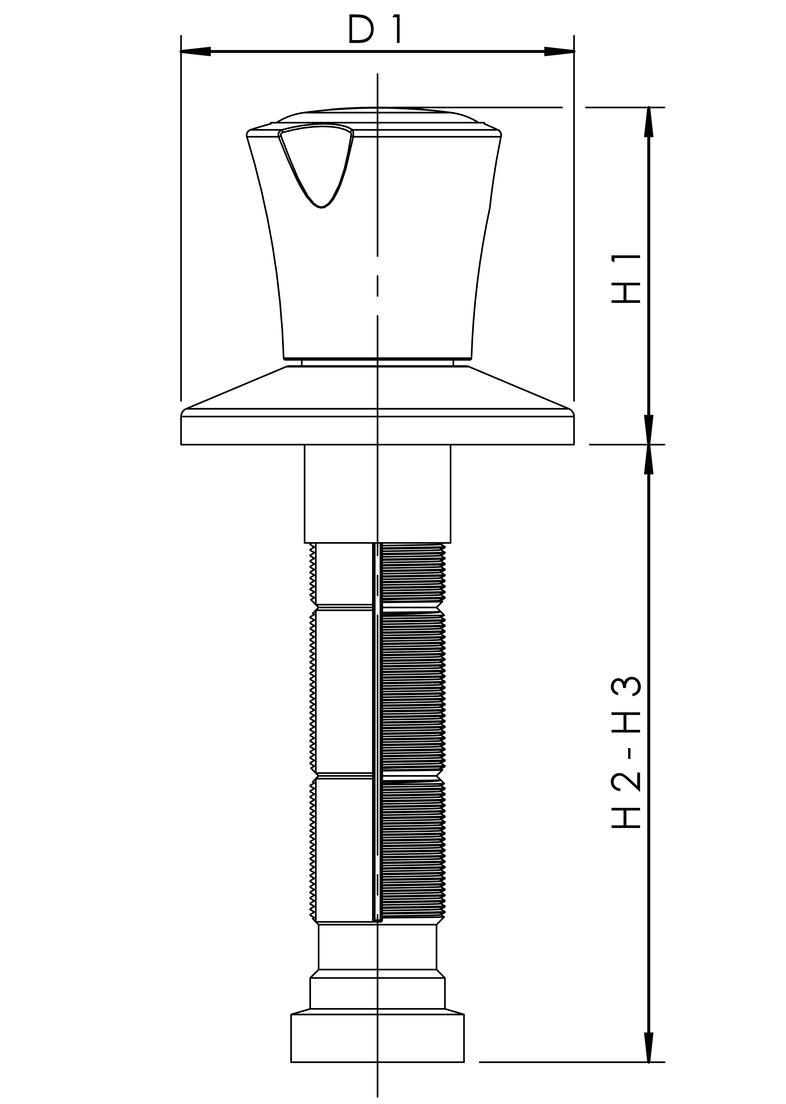

Part no. for DN D1
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		kg
5961202000 20 70 60 35 110 0.30
