RG120 grip top die-cast zinc set-up dimensions to 32 mm

figure 596 11

  • chrome-plated zinc diecasting
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • chrome-plated sleeve

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 596 11
figure 596 11
figure 596 11
figure 596 11
figure 596 11

Product Features

  • chrome-plated zinc diecasting
  • for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07
  • chrome-plated sleeve
  • chrome-plated collar
  • easy assembly with 90° rotation
  • including red and blue indicator plates to indicate hot or cold water

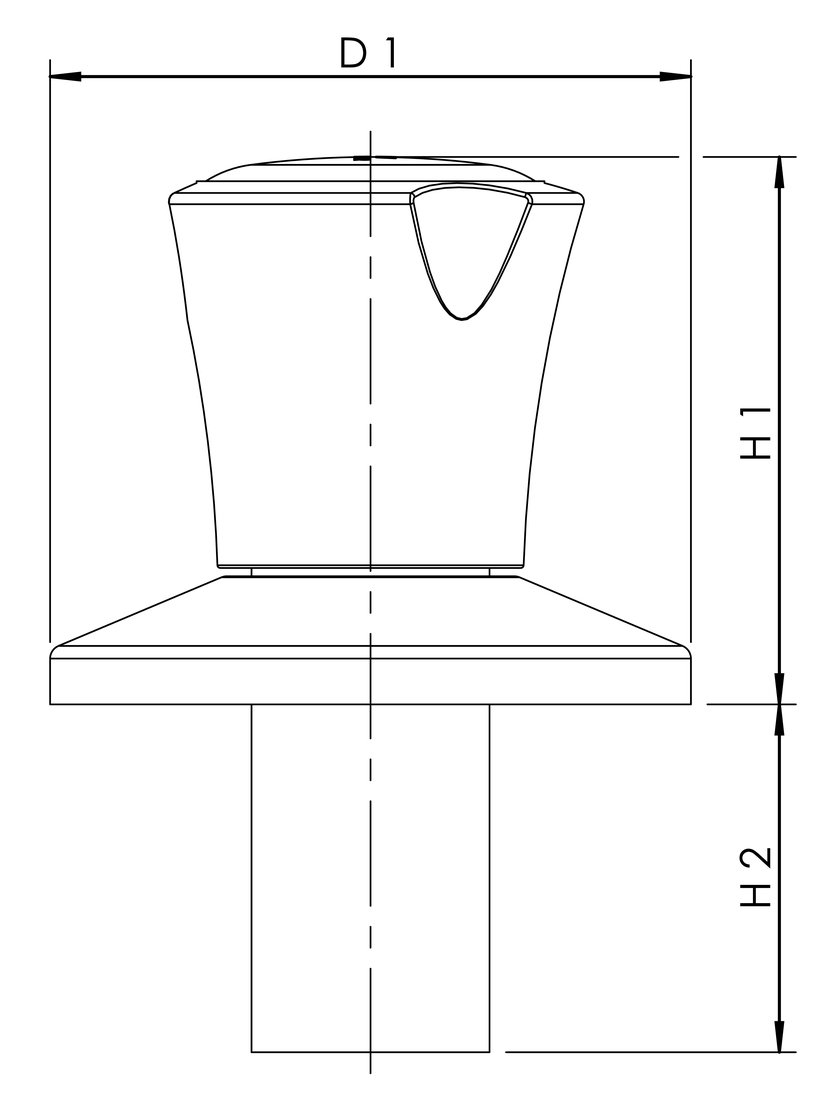

Part no. for DN D1
(mm) 		H1
(mm) 		H2
(mm) 		kg
5961102000 20 70 60 38 0.31
