stop valve, FPT

figure 560 31

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • installation, e.g. in access flaps or for flush mounted installation
  • maintenance-free EPDM spindle seal

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 560 31
figure 560 31
figure 560 31
figure 560 31
figure 560 31

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • installation, e.g. in access flaps or for flush mounted installation
  • maintenance-free EPDM spindle seal
  • EPDM-seat gasket
  • stainless steel cone
  • female pipe thread
  • handle with blue or red dot for identification
  • free from dead spots

Standards and Approvals

  • DVGW approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • according to soundproofing regulations
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 100 °C
figure 560 31

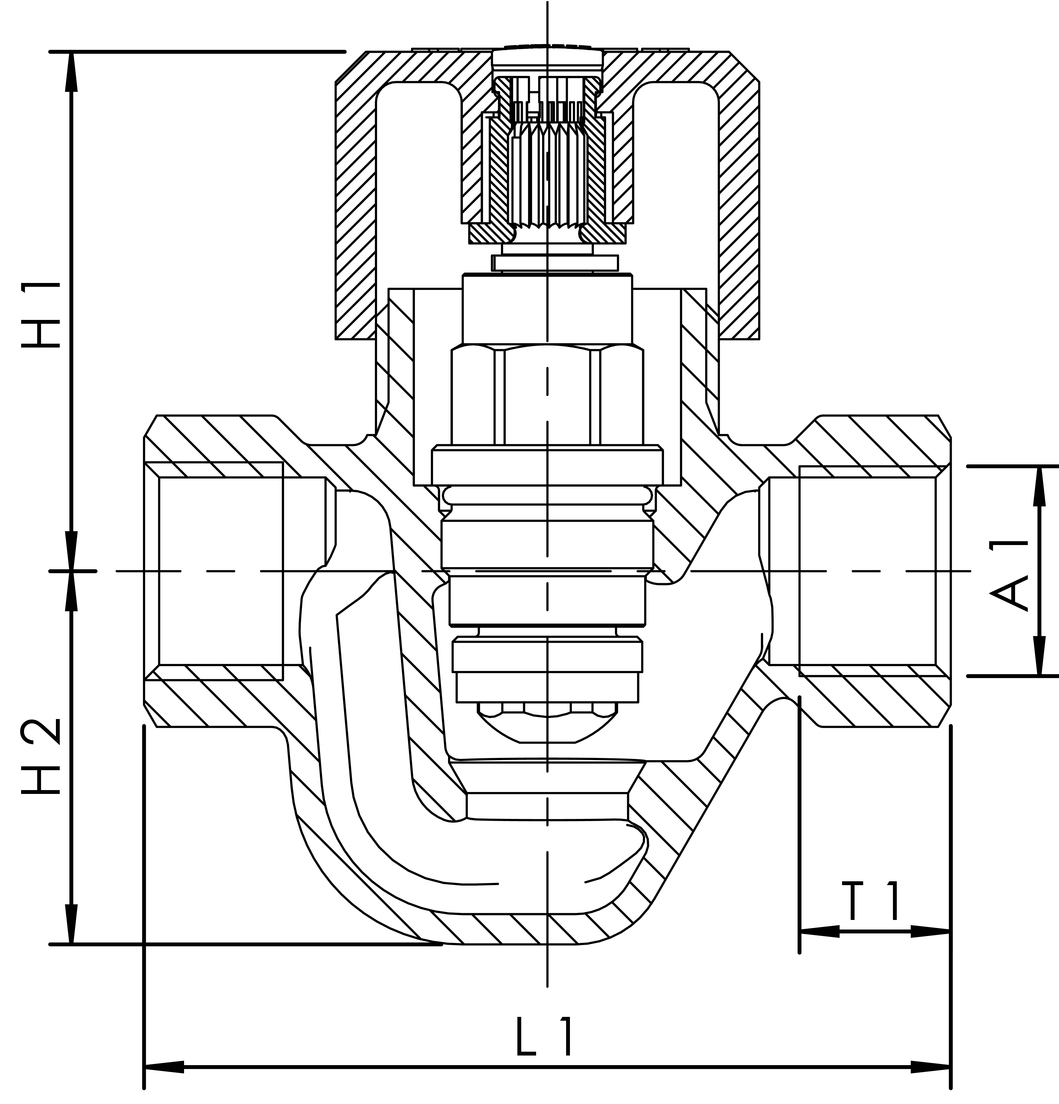

Part no. DN A1 H1
(mm) 		H2
(mm) 		L1
(mm) 		T1
(mm) 		Zeta cv
(m³/h) 		kg
5603101500 15 Rp 1/2 52 37 80 15 2.7 5.4 0.46
5603102000 20 Rp 3/4 54 35 90 16.3 6.9 6 0.51

CAD models & characteristic curves

Part no. DN CAD model Characteristic line
5603101500 15 Show 3D data Show characteristic curve
5603102000 20 Show 3D data Show characteristic curve
