antipollution check valve, with drain valve, flanged

figure 164 02

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • flange connection
  • with sidewise drain valve, rotatable hose connection element G 3/4

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • flange connection
  • with sidewise drain valve, rotatable hose connection element G 3/4
  • with test port
  • check valve with SST spring
  • EPDM-seat gasket
  • free from dead spots
  • for any installation position
  • alternative figure 137 02

Standards and Approvals

  • according to DVGW regulations
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • acc. to DIN EN 13959 provisions / DIN EN 558-1
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 100 °C

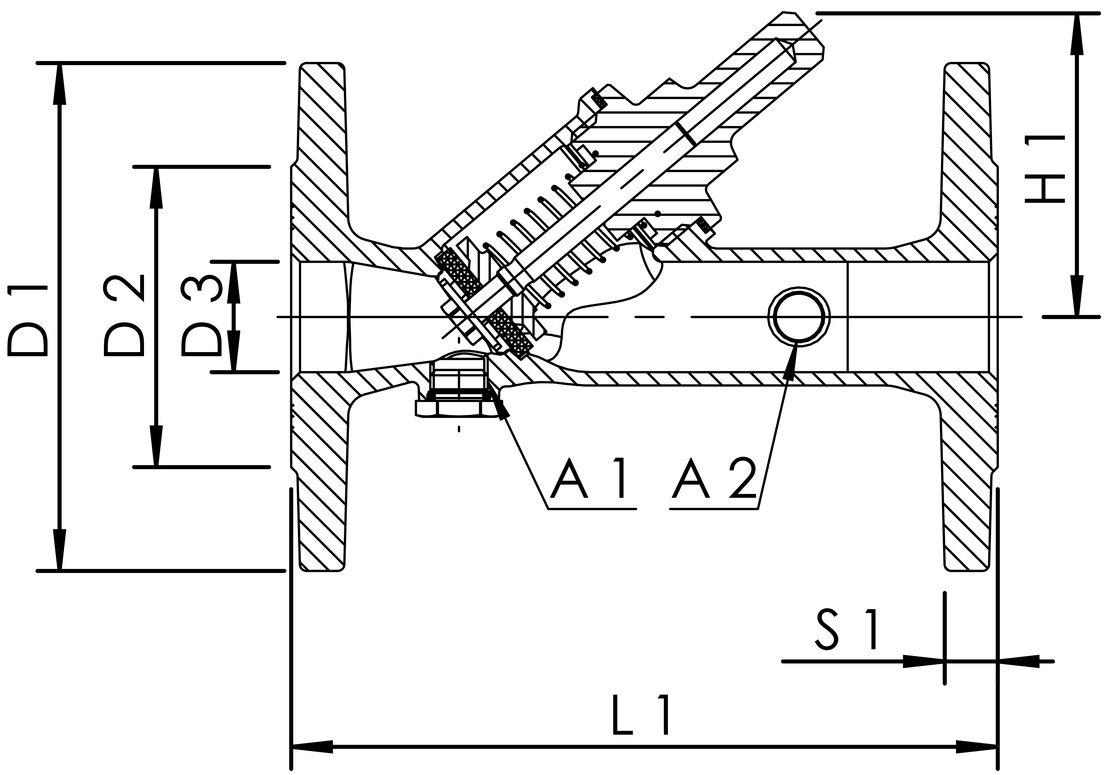

figure 164 02
Part no. DN bolt holes A1 A2 BS
(mm)
D1
(mm)
D2
(mm)
D3
(mm)
H1
(mm)
L1
(mm)
S1
(mm)
Zeta ∆ popening
(hpa)
HS
(mm)
cv
(m³/h)
LS
(mm)
kg
1640205000 50 4 G 1/4 G 3/8 165 165 102 50 101 230 14 2.3 70 243 64.7 230 6.28
1640208000 80 8 G 1/4 G 3/8 200 200 138 80 152 310 16 3.8 140 251 130 310 11.91

CAD models

Part no. DN CAD model
1640205000 50 Show 3D data
1640208000 80 Show 3D data
