combined stop and antipollution check valve, with plugged drain port, union thread

figure 160 2G

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket

Product datasheet PDF

Show planning data on pdod.de

figure 160 2G
figure 160 2G
figure 160 2G
figure 160 2G
figure 160 2G

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
  • male union thread
  • with plugged drain port
  • with test port
  • check valve with SST spring
  • with a black handwheel
  • free from dead spots
  • for any installation position
  • with isolating function for maintenance
  • Open position indicator

Standards and Approvals

  • according to DVGW regulations
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • acc. to DIN EN 13959 provisions
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 100 °C

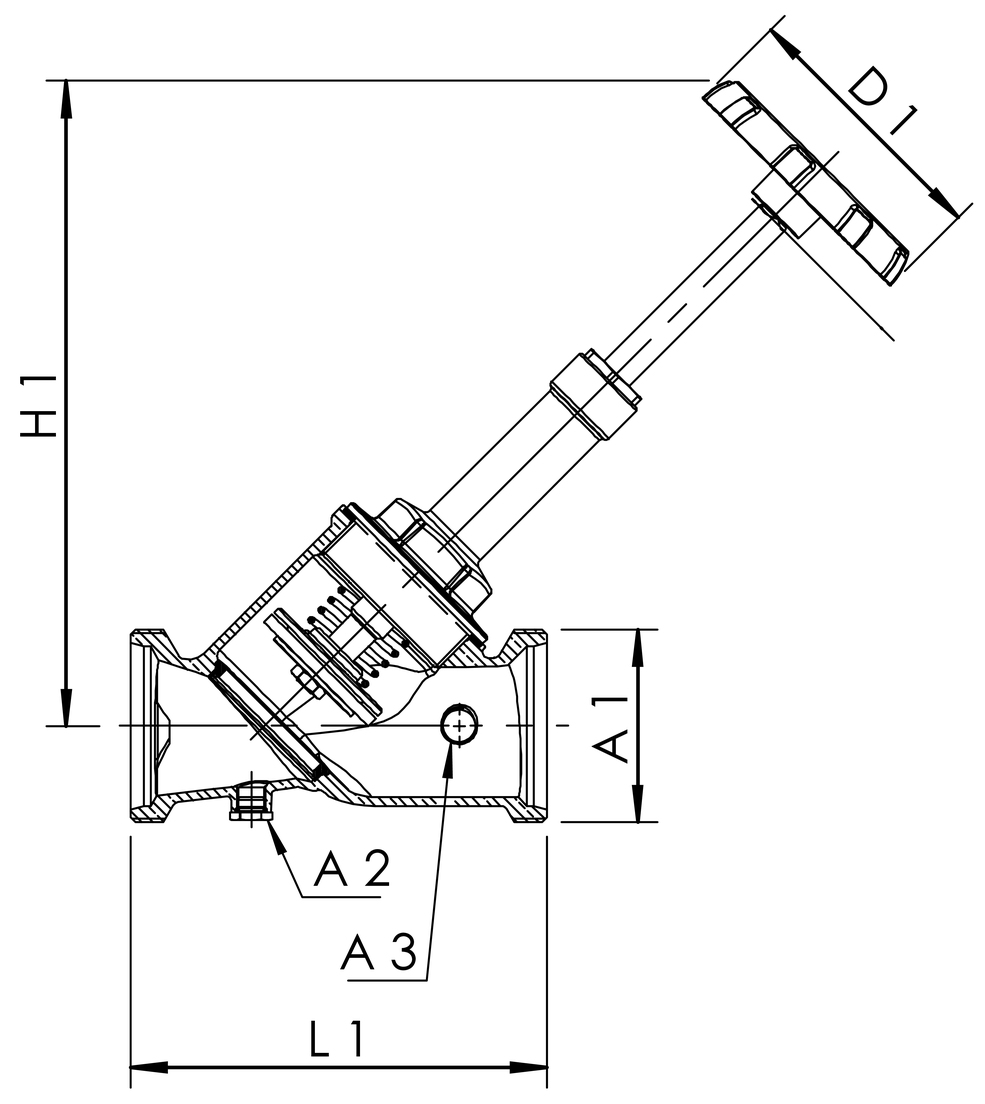

figure 160 2G
Part no. DN A1 A2 A3 D1
(mm) 		H1
(mm) 		L1
(mm) 		Zeta ∆ popening
(hpa) 		cv
(m³/h) 		kg
1602G06500 65 G 3 G 1/4 G 3/8 120 310 190 2.1 120 116 4.49
1602G08000 80 G 3 1/2 G 1/4 G 3/8 120 342 215 3.8 140 130 5.95

CAD models

Part no. DN CAD model
1602G06500 65 Show 3D data
1602G08000 80 Show 3D data
