stop valve, flanged

figure 135 01

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • 10 year warranty
  • maintenance-free shaft sealing with self-lubricating EPDM lip gasket, replaceable under pressure up to DN 80

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 135 01
figure 135 01
figure 135 01
figure 135 01
figure 135 01

Product Features

  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • 10 year warranty
  • maintenance-free shaft sealing with self-lubricating EPDM lip gasket, replaceable under pressure up to DN 80
  • EPDM-seat gasket
  • cone rotatable, protected against water hammer
  • flange connection
  • without drain port (drain valve cannot be added)
  • spindle thread not in contact with medium
  • with a black handwheel
  • free from dead spots
  • Open position indicator

Standards and Approvals

  • DVGW approval up to DN 80
  • WRAS approval
  • KIWA approval up to DN 100
  • VA approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • DIN EN 1213 / DIN EN 558-1
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 110 °C

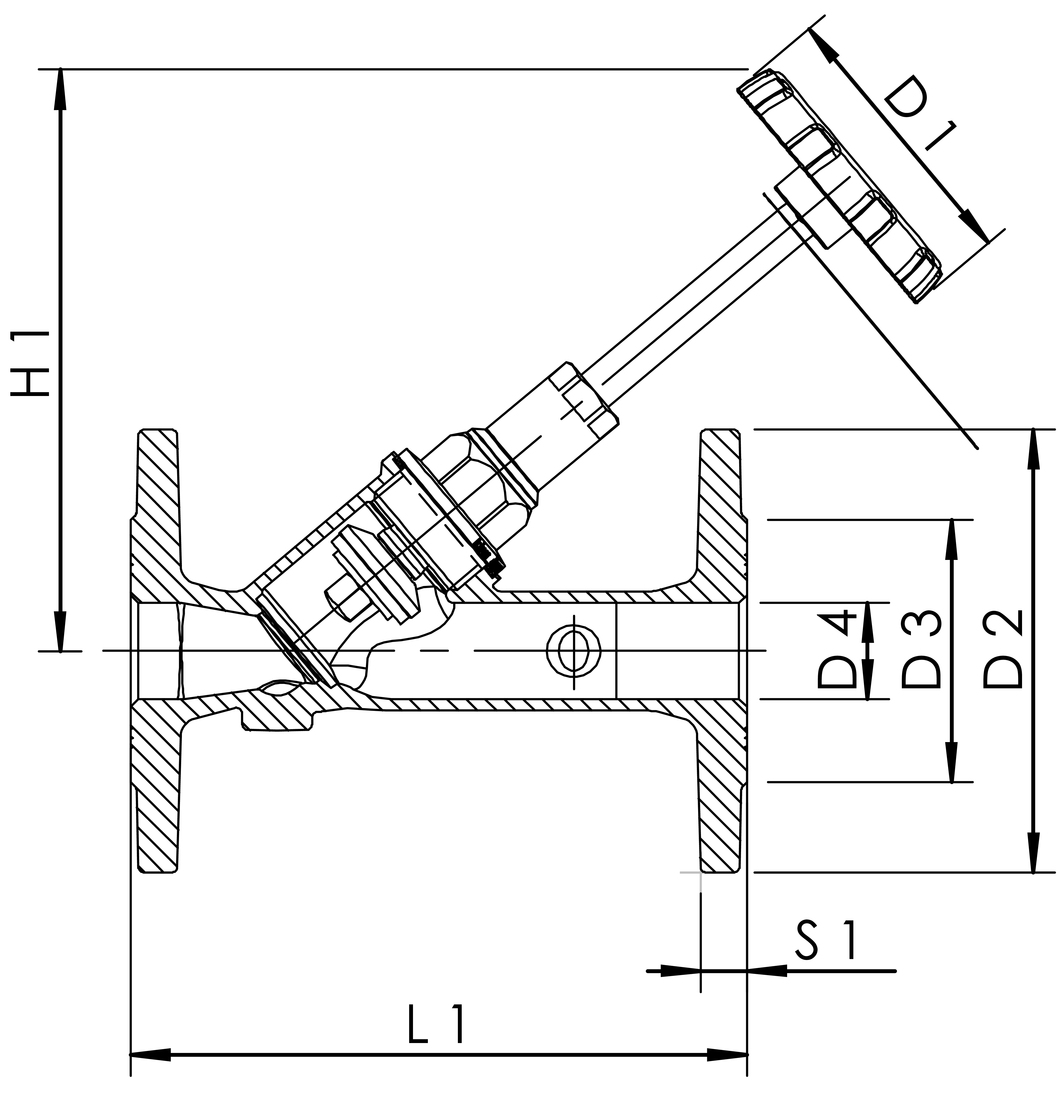

figure 135 01
Part no. DN bolt holes BS
(mm) 		D1
(mm) 		D2
(mm) 		D3
(mm) 		D4
(mm) 		H1
(mm) 		L1
(mm) 		S1
(mm) 		Zeta HS
(mm) 		cv
(m³/h) 		LS
(mm) 		kg
1350102500 25 4 115 70 115 68 25 149 160 12 1 206 24.2 208 2.78
1350103200 32 4 140 70 140 78 32 173 180 13 1.2 244 37.7 236 4.07
1350104000 40 4 150 70 150 88 40 177 200 14 1.3 253 55.4 246 5.59
1350105000 50 4 165 90 165 102 50 221 230 14 0.8 295 112.5 297 6.44
1350106500 65 4 185 90 185 122 65 294 290 15 1.6 338 132.6 337 9.80
1350108000 80 8 200 120 200 138 80 327 310 16 1.4 356 216.3 367 12.15
1350110000 100 8 220 120 220 158 100 302 350 18 2.7 380 240 380 19.25

CAD models & characteristic curves

Part no. DN CAD model Characteristic line
1350102500 25 Show 3D data Show characteristic curve
1350103200 32 Show 3D data Show characteristic curve
1350104000 40 Show 3D data Show characteristic curve
1350105000 50 Show 3D data Show characteristic curve
1350106500 65 Show 3D data Show characteristic curve
1350108000 80 Show 3D data Show characteristic curve
1350110000 100 Show 3D data Show characteristic curve
