SST combined stop and anti pollution check valve, union thread, with drain valve, figure 060 1G

SST combined stop and anti pollution check valve, union thread, with drain valve

figure 060 1G

wetted parts made of stainless steel
maintenance-free spindle gasket with self-lubricating EPDM lip gasket
EPDM-seat gasket

Product datasheet PDF

Show planning data on pdod.de

figure 060 1G

figure 060 1G

Site navigation

Product features Standards & approvals Technical data CAD models Planning data Downloads Accessories Spare parts

Product Features

wetted parts made of stainless steel
maintenance-free spindle gasket with self-lubricating EPDM lip gasket
EPDM-seat gasket
male union thread
with sidewise drain valve, rotatable hose connection element G 3/4
with test port
check valve with SST spring
wear-resistant stainless steel valve seat
with a black handwheel
free from dead spots
Open position indicator
for any installation position

Standards and Approvals

according to DVGW regulations
plastic parts with KTW and W 270 approval
according to accepted materials list from German environmental agency
up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
acc. to DIN EN 13959 provisions
ÜA-Reg.-Nr. R-15.2.3-21-17049, WIEN-ZERT

Technical data

pressure rating PN 16
max. operating temperature 110 °C

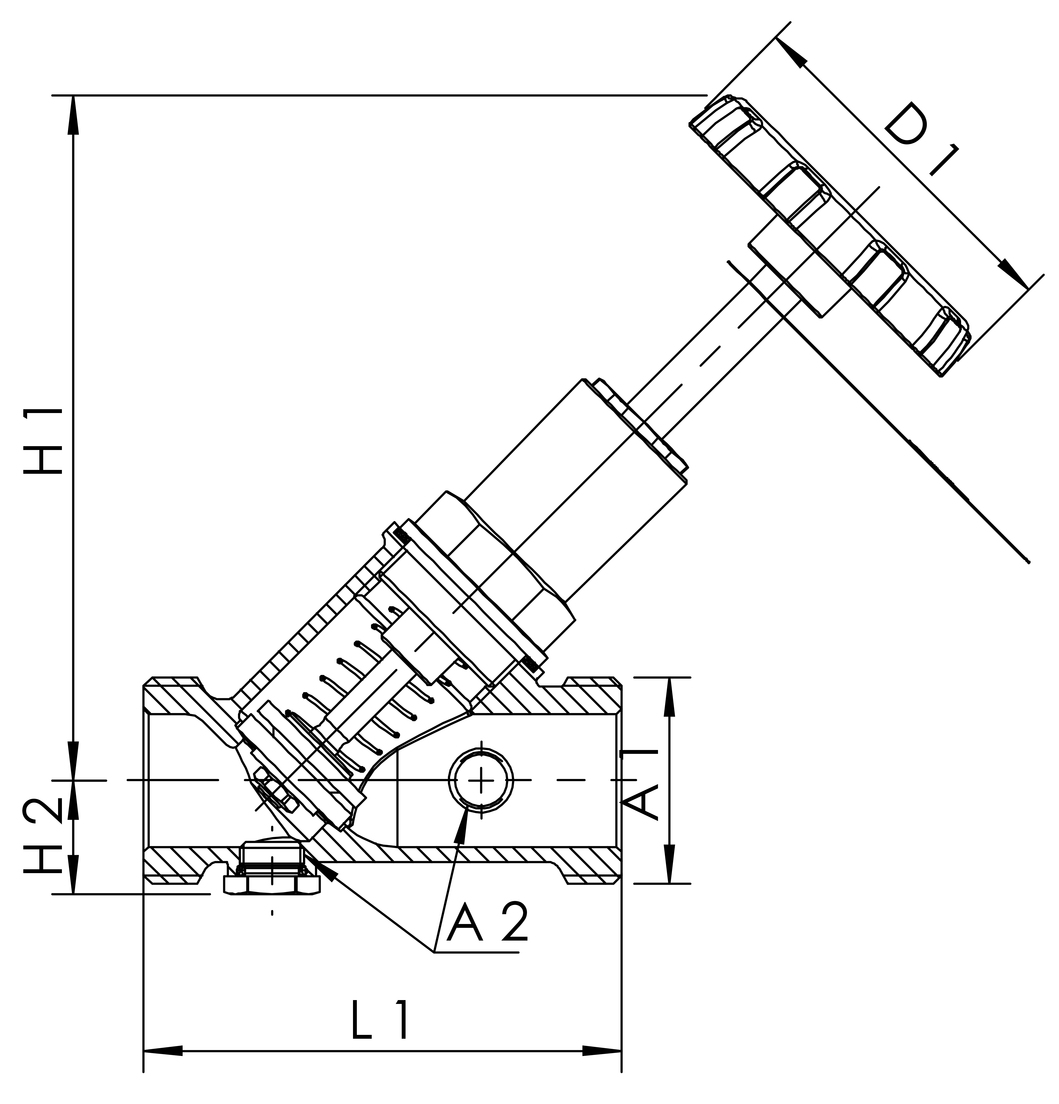

Part no.	DN	A1	A2	D1 (mm)	H1 (mm)	H2 (mm)	L1 (mm)	Zeta	∆ p_opening (hpa)	cv (m³/h)	kg
0601G01500	15	G 3/4	G 1/4	60	100	20.5	70	4.9	120	4.03	0.52
0601G02000	20	G 1	G 1/4	60	120	21	78.5	3.6	110	8.3	0.66
0601G02500	25	G 1 1/4	G 1/4	70	140	23	97	2.9	130	14.6	1.08
0601G03200	32	G 1 1/2	G 1/4	70	165	26	110	2.6	80	25.3	1.32
0601G04000	40	G 1 3/4	G 1/4	90	190	30.5	130	3.1	80	35.9	1.99
0601G05000	50	G 2 3/8	G 1/4	90	230	35	145	2.3	70	64.7	2.50

CAD models

Part no.	DN	CAD model
0601G01500	15	Show 3D data
0601G02000	20	Show 3D data
0601G02500	25	Show 3D data
0601G03200	32	Show 3D data
0601G04000	40	Show 3D data
0601G05000	50	Show 3D data

Planning data

Show planning data on pdod.de

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Building technology valves and systems

pdf (20.6 MB)

Technical information

File type

Flow Diagram antipollution check valve type EA

pdf (84 KB)
