drain valve

figure J7120 073 00

  • can be attached to all Kemper valves with test/drain-port
  • rotatable hose connection element G 3/4 with cap and hanger
  • wetted parts made of stainless steel

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure J7120 073 00
figure J7120 073 00
figure J7120 073 00
figure J7120 073 00
figure J7120 073 00

Product Features

  • can be attached to all Kemper valves with test/drain-port
  • rotatable hose connection element G 3/4 with cap and hanger
  • wetted parts made of stainless steel
  • rotating and plug-in cap
  • EPDM-seat gasket

Technical data

  • max. operating temperature 110 °C

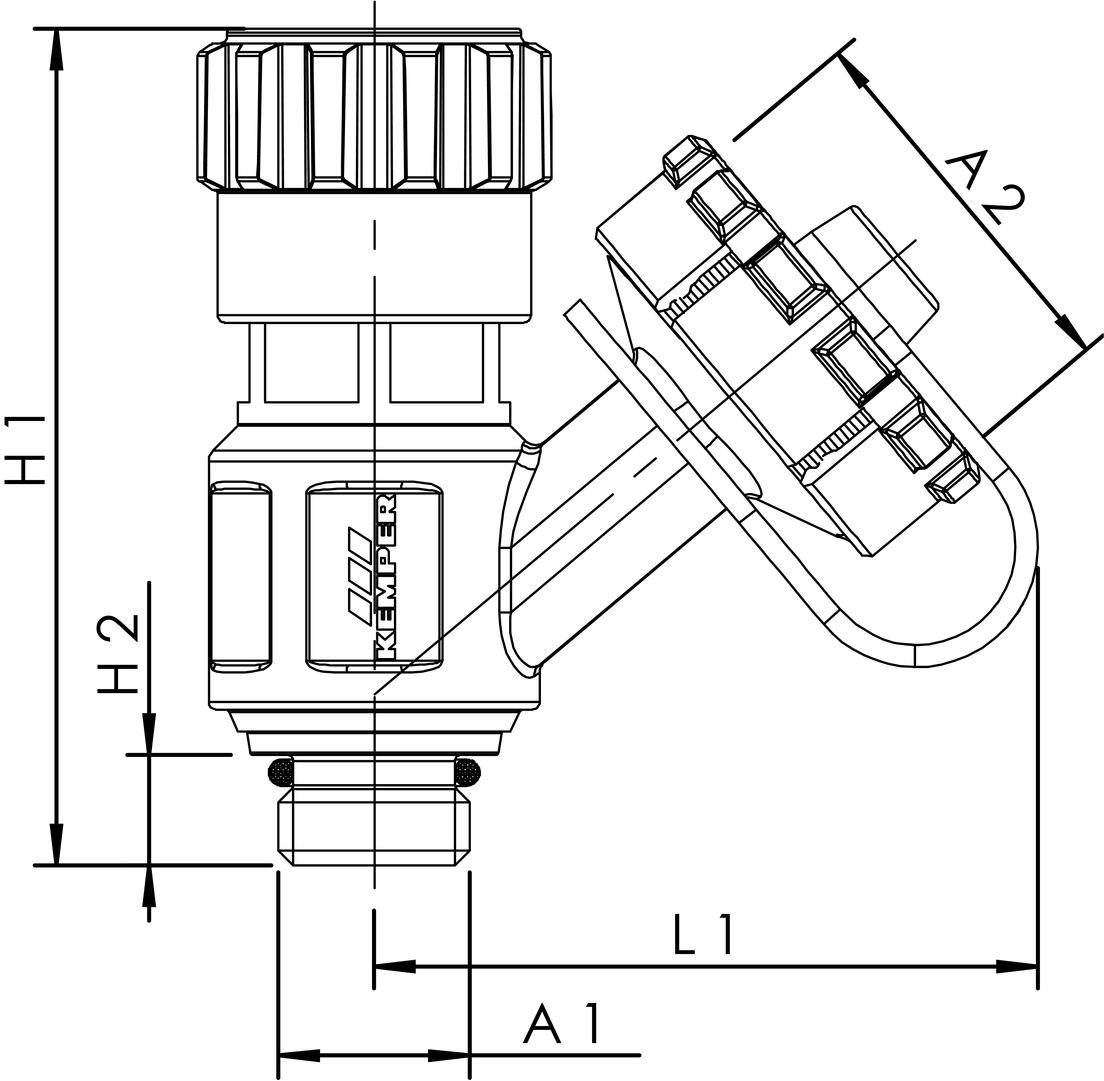

figure J7120 073 00
Part no. DN for DN for DN with flange valves A1 A2 H1
(mm) 		H2
(mm) 		L1
(mm) 		kg
J71200730000600 8 15-50 15-25 G 1/4 G 3/4 53 7 37 0.09
