PTFE seat gasket

figure B9100 173 14

  • for stop valves made entirely of gunmetal according to figure 135, 173, 176 and 190 with top lip gasket manufactured to 05/2006 as well as combined stop and check valves with flow body made entirely of gunmetal according to figure 145 with top seal manufactured to 05/2006
  • colour: white

Product datasheet PDF

Show planning data on pdod.de

figure B9100 173 14
figure B9100 173 14
figure B9100 173 14
figure B9100 173 14
figure B9100 173 14

Product Features

  • for stop valves made entirely of gunmetal according to figure 135, 173, 176 and 190 with top lip gasket manufactured to 05/2006 as well as combined stop and check valves with flow body made entirely of gunmetal according to figure 145 with top seal manufactured to 05/2006
  • colour: white

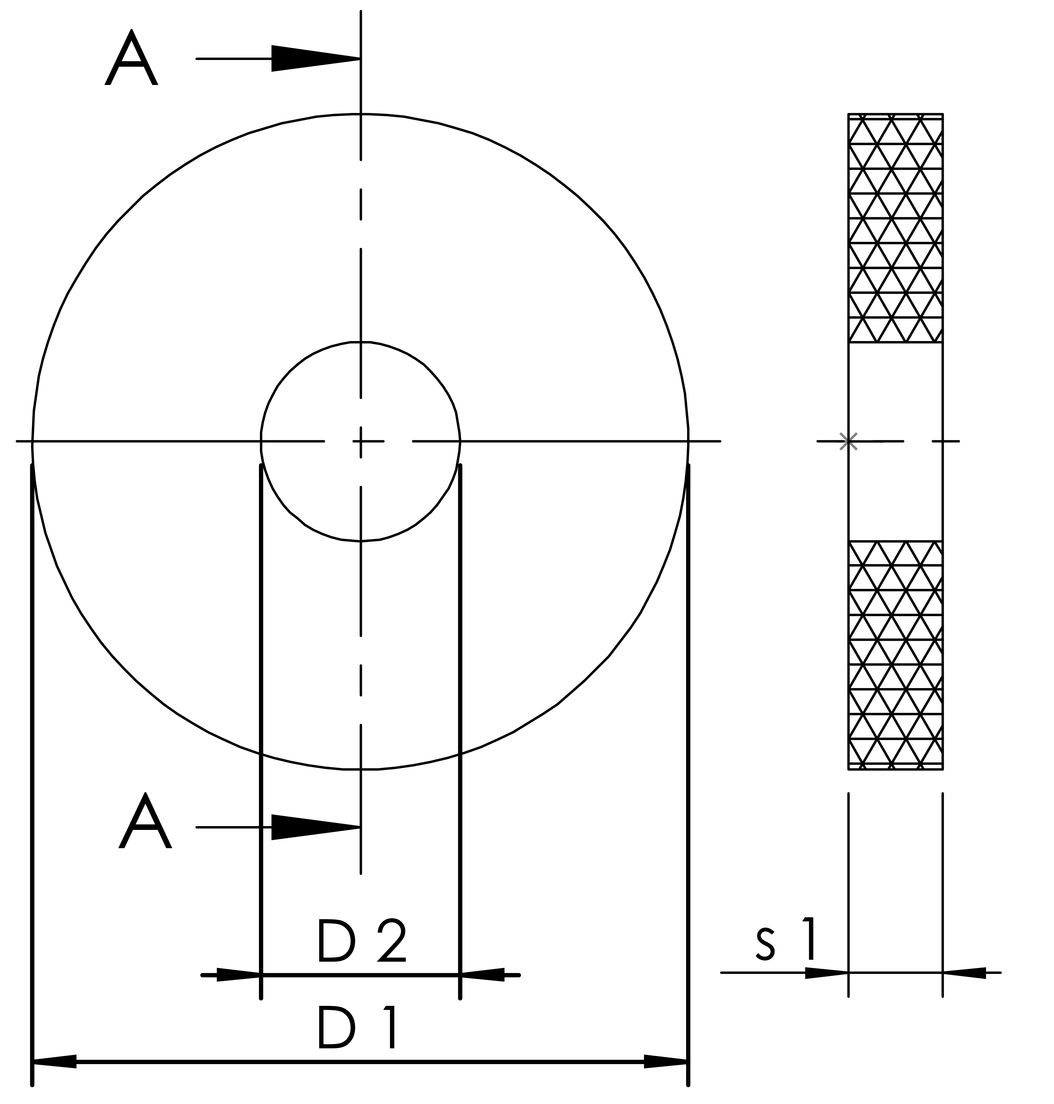

Part no. for DN D1
(mm) 		D2
(mm) 		S1
(mm) 		kg
B91001731401500 15 16.4 5.5 3 0.00
B91001731402000 20 22 5.5 3 0.00
B91001731402500 25 28 6.5 4 0.01
B91001731403200 32 36 8.5 4 0.01
B91001731404000 40 41.5 8.5 5 0.01
B91001731405000 50 53 10.5 5 0.02
B91001731406500 65 68 10.5 5 0.04
B91001731408000 80 81 10.5 5 0.06
