KTS ThermoTank S, buffer tank PN 10

figure 970

  • insulated buffer tank
  • for heating water
  • with baffle plate for temperature stratification

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 970
figure 970
figure 970
figure 970
figure 970

Product Features

  • insulated buffer tank
  • for heating water
  • with baffle plate for temperature stratification
  • the tank has 8 sideways ports and one upper connecting port for pipework
  • female pipe thread

Standards and Approvals

  • building material class B1 according to DIN 4102

Technical data

  • pressure rating PN 10
  • max. operating temperature 95 °C
  • thermal conductivity 0.0316 W/mK

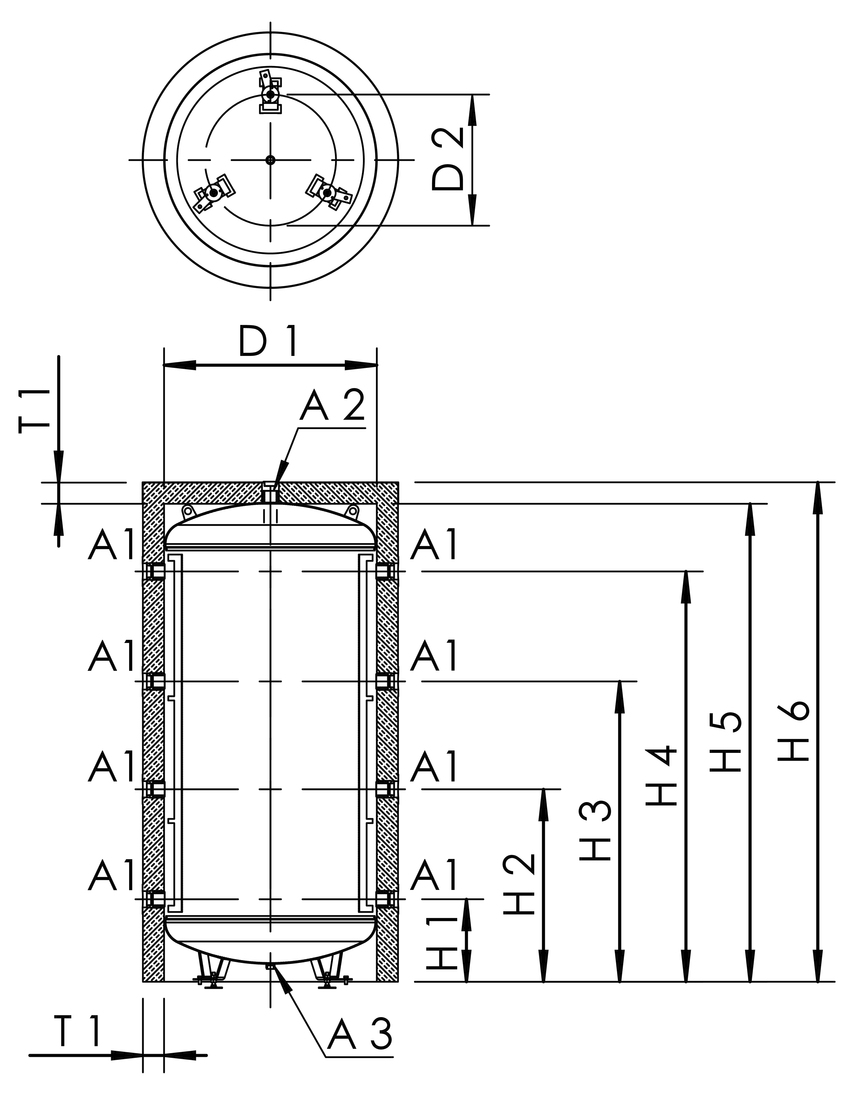

figure 970
Part no. tilted size
(mm) 		volume of
equipment
(l) 		A1 A2 D1
(mm) 		D2
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		H4
(mm) 		H5
(mm) 		H6
(mm) 		T1
(mm) 		energy
efficiency class 		heat retention
losses (W) 		kg
9700050000 1700 500 Rp 1 1/2 Rp 1 1/4 650 550 277 627 977 1327 1618 1670 100 B 75 133.00
9700100000 2260 1000 Rp 1 1/2 Rp 1 1/2 790 700 301 821 1331 1851 2164 2215 100 C 110 216.00
9700150000 2380 1500 Rp 2 Rp 2 1000 900 315 871 1381 1901 2274 2340 120 C 143 361.00

CAD models

Part no. CAD model
9700050000 Show 3D data
9700100000 Show 3D data
9700150000 Show 3D data
