KTS ThermoTank S, buffer tank PN 6, for use with heating element

figure 965

  • insertion of three heating elements possible (ports A4)
  • insulated buffer tank
  • for heating water

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 965
figure 965
figure 965
figure 965
figure 965

Product Features

  • insertion of three heating elements possible (ports A4)
  • insulated buffer tank
  • for heating water
  • with baffle plate for temperature stratification
  • memory features 8 side connections, 1 topside connection and 3 additional connections arranged on the side for using electric heating elements
  • female pipe thread
  • Maximum possible length of heating cartridges corresponds to installation dimension D1

Standards and Approvals

  • building material class B1 according to DIN 4102

Technical data

  • pressure rating PN 6
  • max. operating temperature 95 °C
  • thermal conductivity 0.0316 W/mK

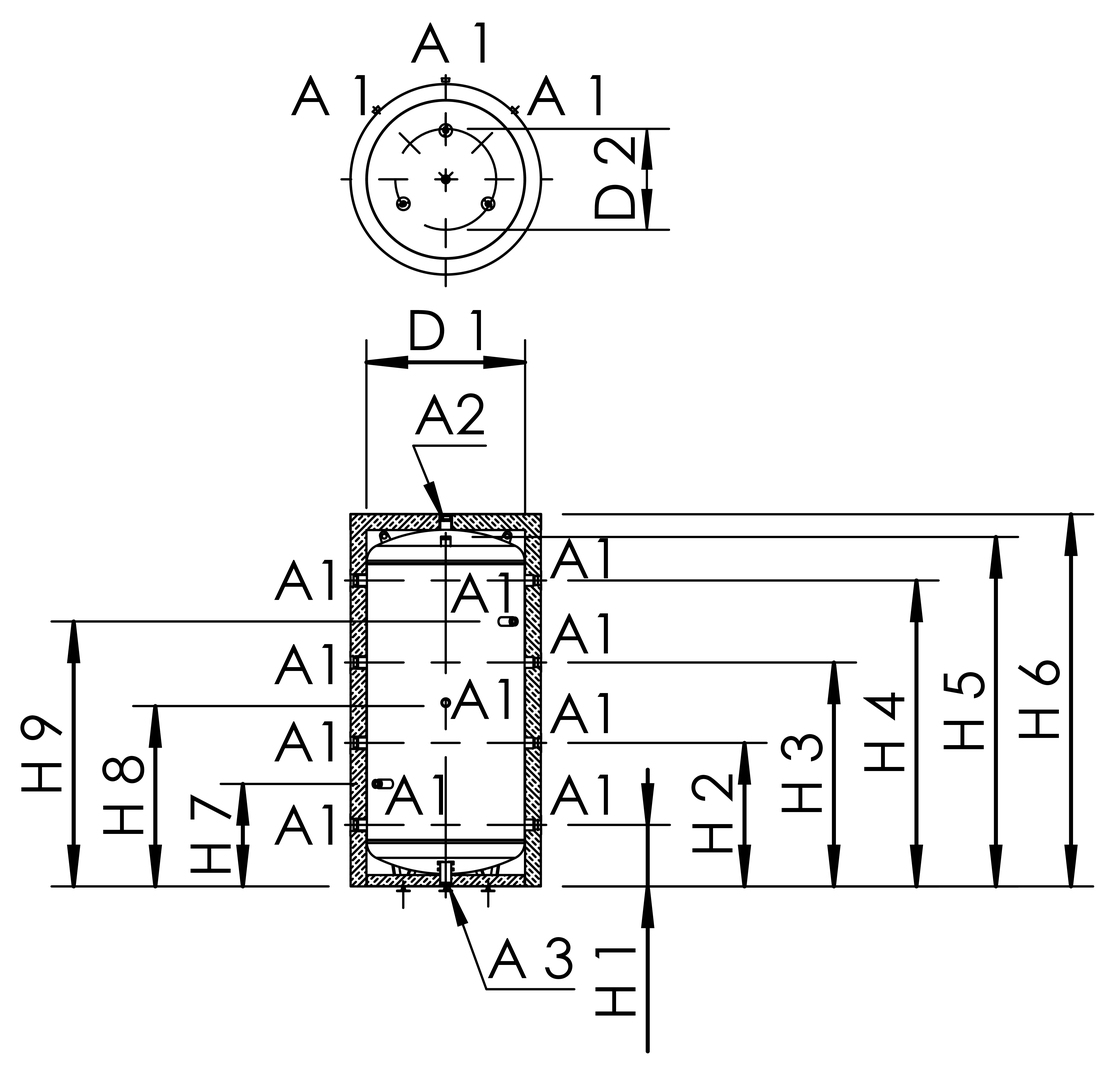

figure 965
Part no. tilted size
(mm) 		volume of
equipment
(l) 		A1 A2 D1
(mm) 		D2
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		H4
(mm) 		H5
(mm) 		H6
(mm) 		H7
(mm) 		H8
(mm) 		H9
(mm) 		T1
(mm) 		energy
efficiency class 		heat retention
losses (W) 		kg
9650050000 1700 500 Rp 1 1/2 Rp 1 1/4 650 450 277 627 977 1327 1618 1670 452 802 1152 100 B 75 144.00
9650100000 2260 1000 Rp 1 1/2 Rp 1 1/2 790 700 301 821 1331 1851 2168 2220 561 1076 1591 100 C 110 214.00

CAD models

Part no. CAD model
9650050000 Show 3D data
9650100000 Show 3D data

Planning data

Show planning data on pdod.de

Downloads

Data sheet
File type
Product datasheet
pdf
Brochures
File type
Building technology valves and systems
pdf (20.6 MB)
Brochure KTS central hot water heating
pdf (4.8 MB)
