KTS ThermoTank S, buffer tank PN 6

figure 960

  • insulated buffer tank
  • for heating water
  • with baffle plate for temperature stratification

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 960
figure 960
figure 960
figure 960
figure 960

Product Features

  • insulated buffer tank
  • for heating water
  • with baffle plate for temperature stratification
  • the tank has 8 sideways ports and one upper connecting port for pipework
  • female pipe thread

Standards and Approvals

  • building material class B1 according to DIN 4102

Technical data

  • pressure rating PN 6
  • max. operating temperature 95 °C
  • thermal conductivity 0.0316 W/mK

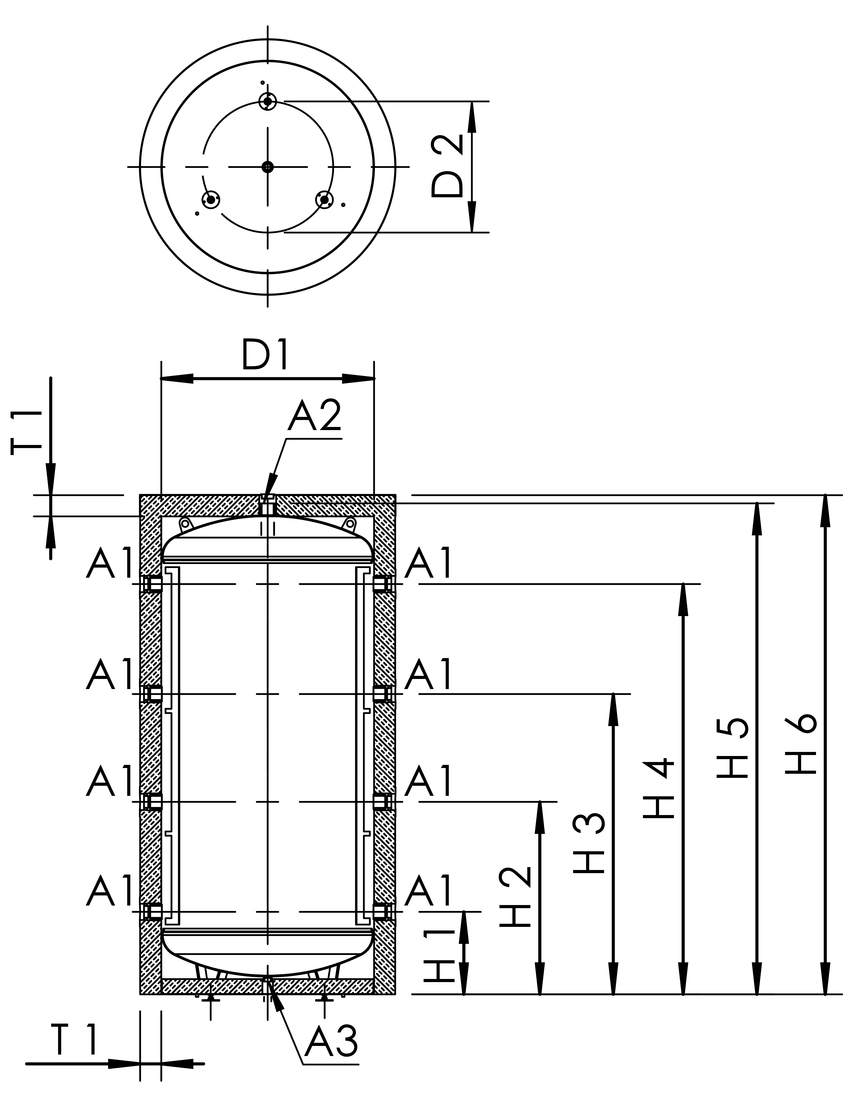

figure 960
Part no. tilted size
(mm) 		volume of
equipment
(l) 		A1 A2 D1
(mm) 		D2
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		H4
(mm) 		H5
(mm) 		H6
(mm) 		T1
(mm) 		energy
efficiency class 		heat retention
losses (W) 		kg
9600050000 1700 500 Rp 1 1/2 Rp 1 1/2 650 550 277 627 977 1327 1618 1670 100 B 75 144.00
9600085000 2250 850 Rp 1 1/2 Rp 1 1/2 750 650 298 818 1328 1848 2163 2215 100 C 101 222.00
9600100000 2250 1000 Rp 1 1/2 Rp 1 1/2 790 700 301 821 1331 1851 2164 2215 100 C 110 214.00
9601100000 2050 1000 Rp 1 1/2 Rp 1 1/2 850 750 308 743 1173 1608 1949 2000 100 C 118 222.00
9600150000 2400 1500 Rp 2 Rp 2 1000 900 351 871 1381 1901 2274 2340 120 C 143 337.00
9600200000 2450 2000 Rp 2 Rp 2 1100 1000 368 888 1398 1918 2296 2360 120 C 160 427.00

CAD models

Part no. CAD model
9600050000 Show 3D data
9600085000 Show 3D data
9600100000 Show 3D data
9601100000 Show 3D data
9600150000 Show 3D data
9600200000 Show 3D data

Planning data

Show planning data on pdod.de

Downloads

Data sheet
File type
Product datasheet
pdf
