FROSTI® frost-proof outdoor valves, pre-mounted design

figure 579 02

  • pre-assembled
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • suitable for fast subsequent installation on already finished outer wall

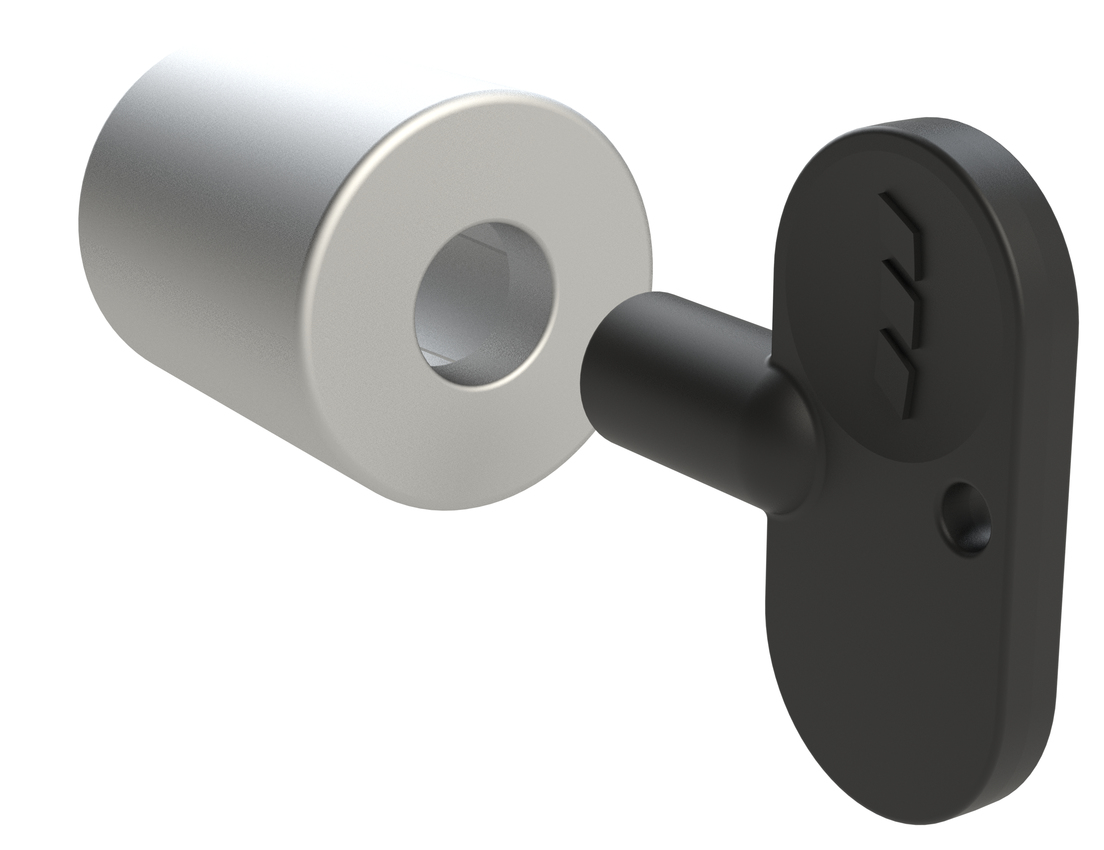

  • with theft-proof socket key operated

Product Features

  • pre-assembled
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • suitable for fast subsequent installation on already finished outer wall

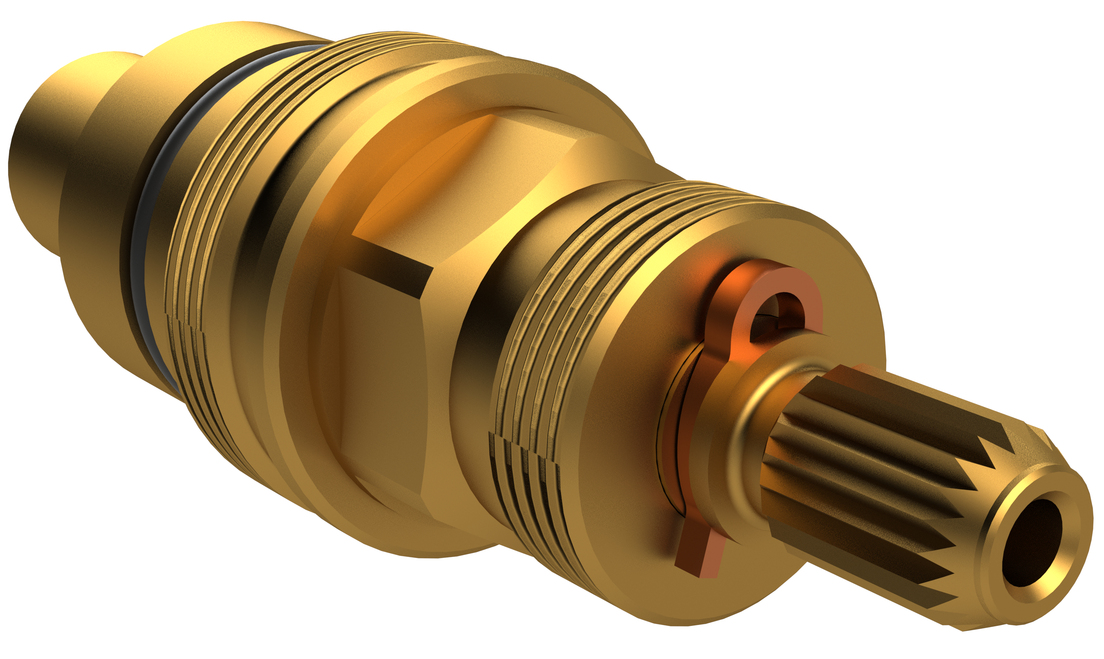

  • inner top part for quick opening operation (two turns)
  • high discharge capacity of 40 l / min (1 bar)

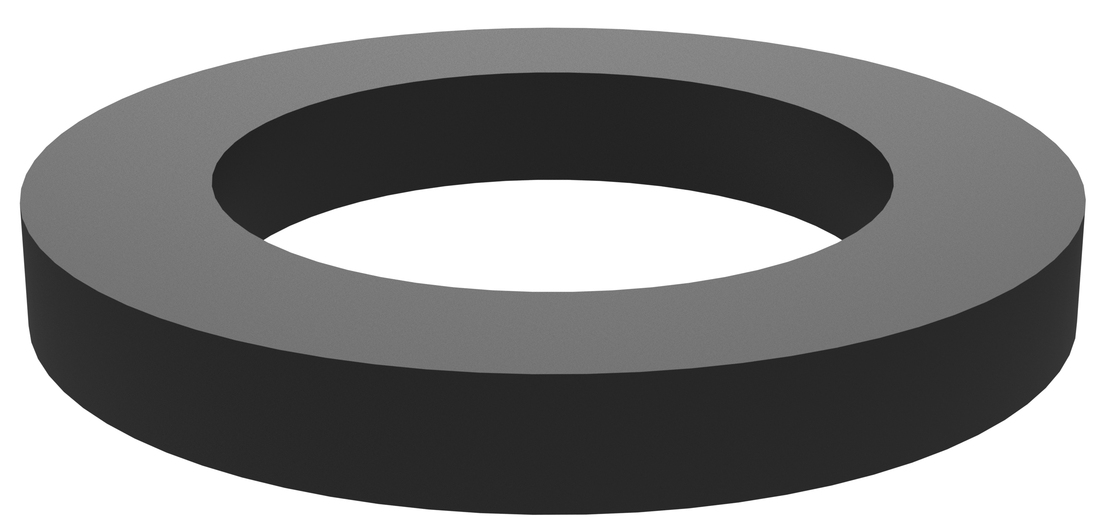

  • EPDM-seat gasket

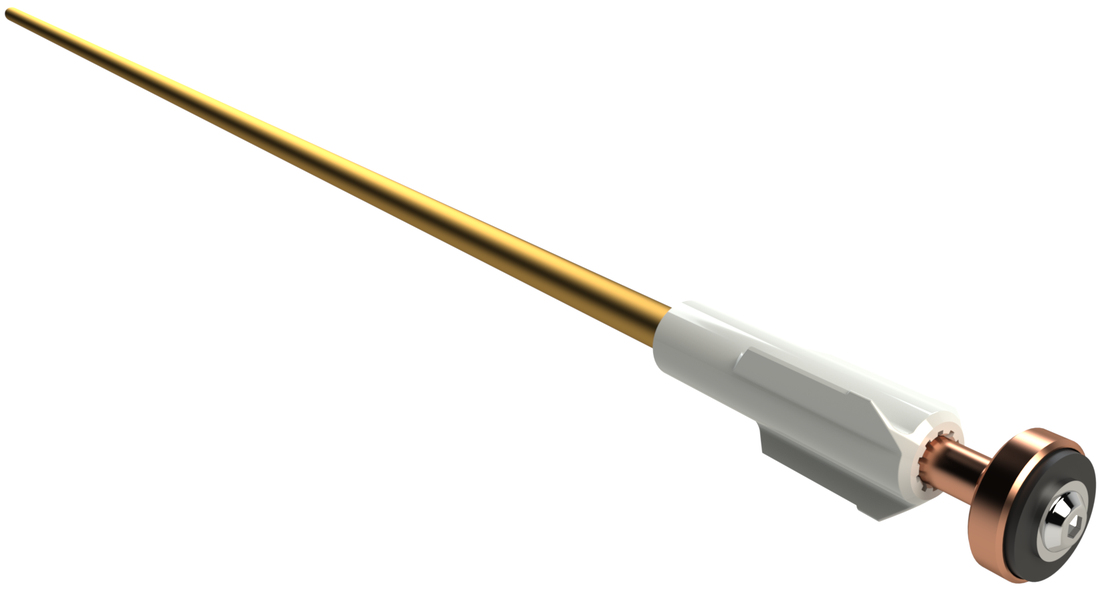

  • cone with internal CV spring

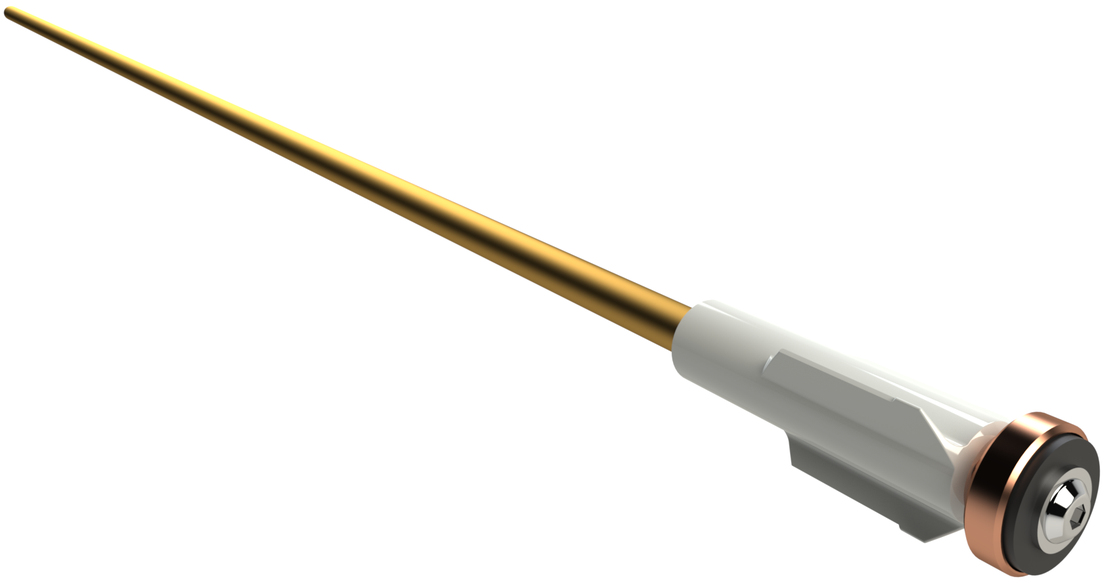

  • can be extended to any length at construction site

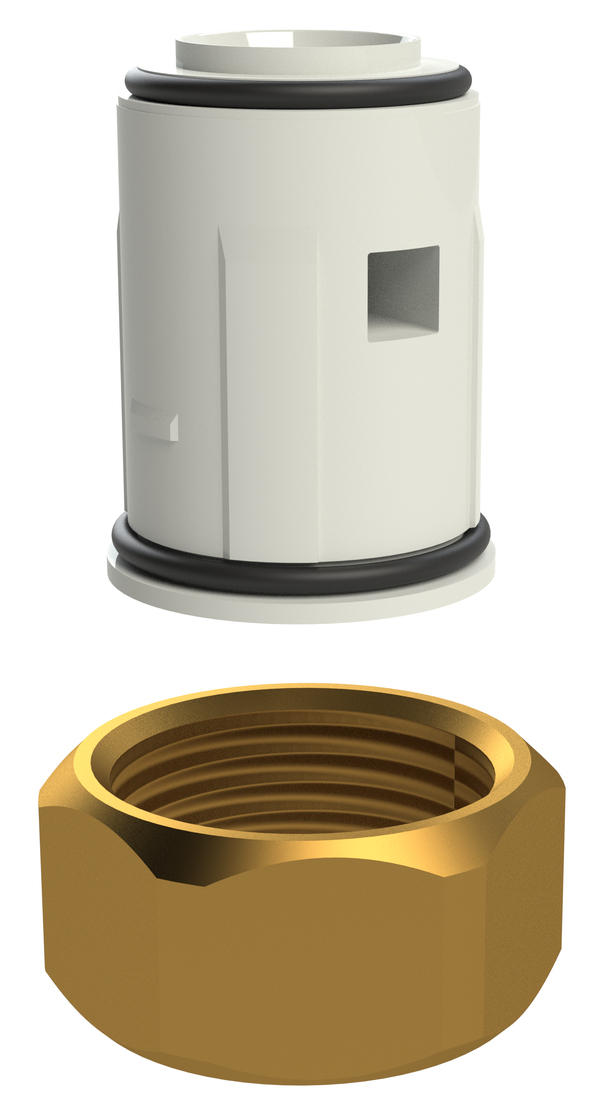

  • integrated CV and tube aerator as a security combination HD
  • inlet male pipe thread
  • free from dead spots

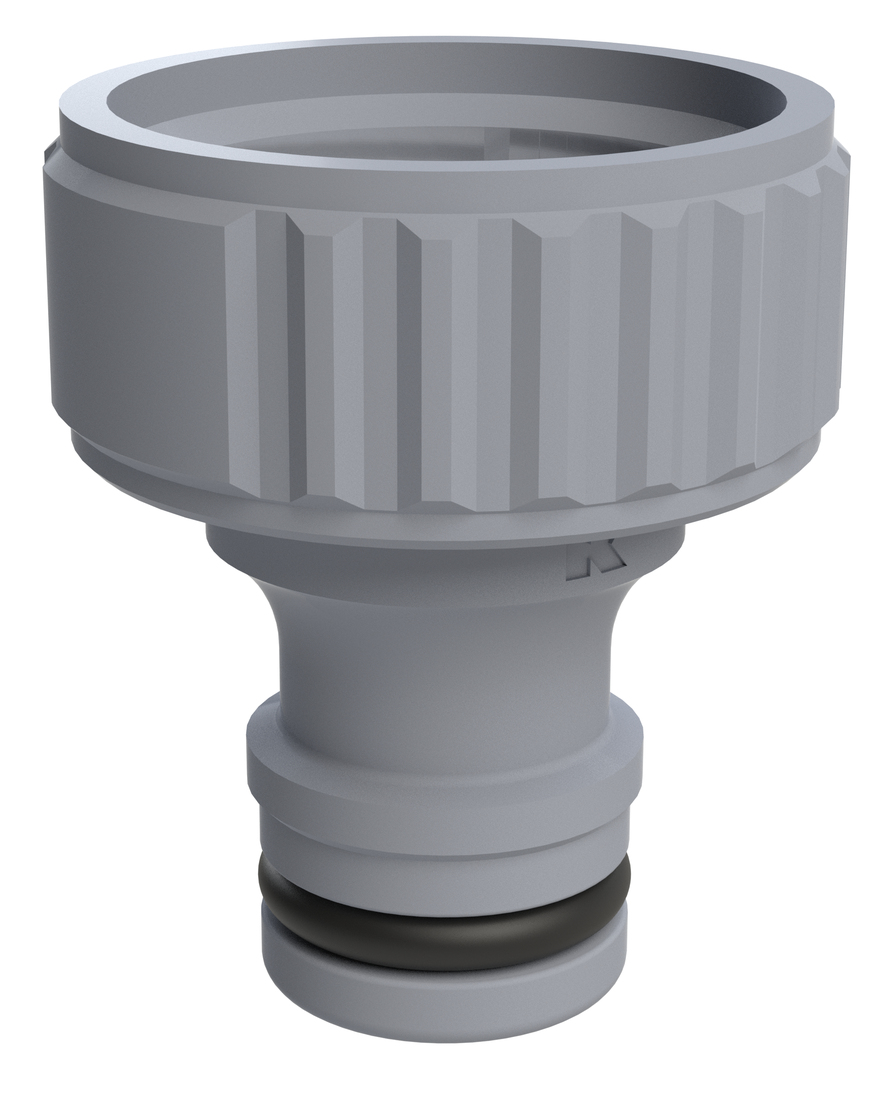

  • incl. hose coupling for common connection systems

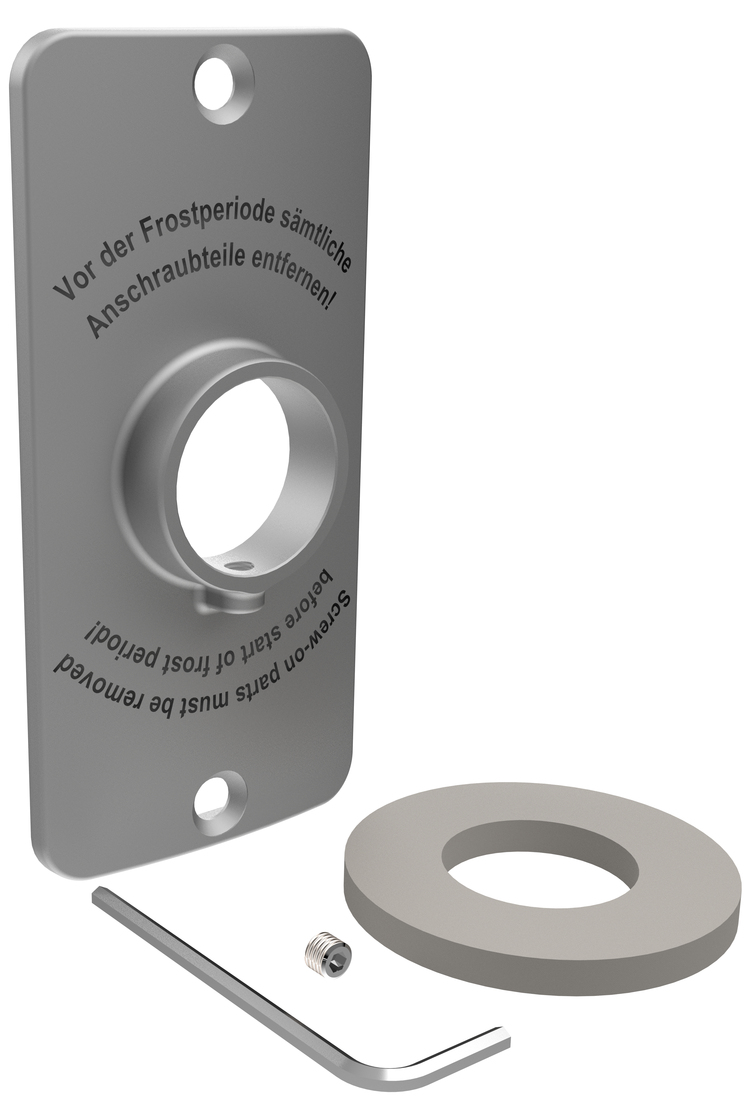

  • flexible installation length with sliding wall disc in outdoor area
  • with theft-proof socket key operated

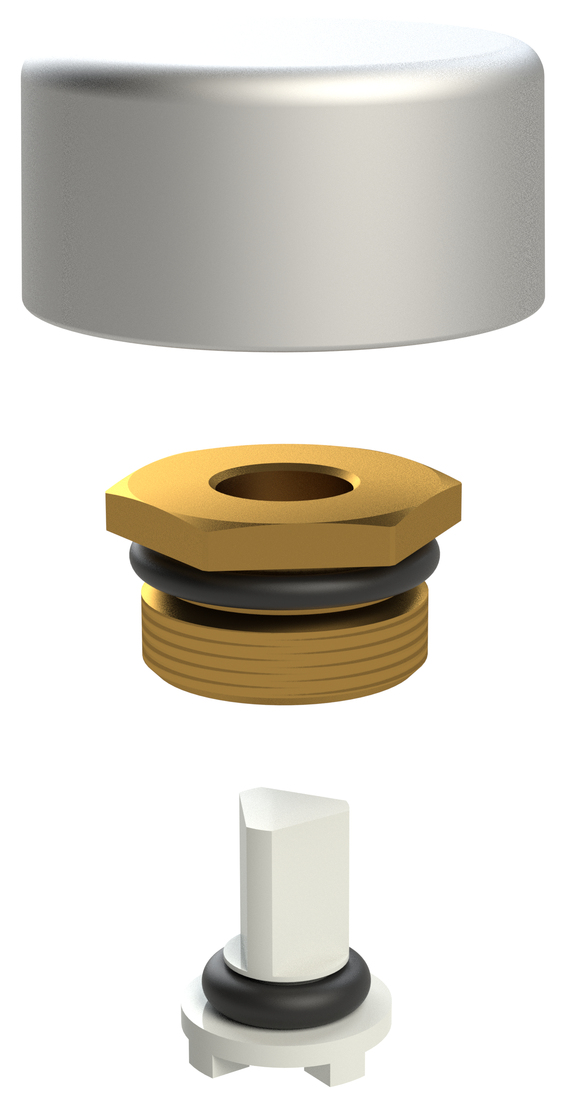

  • with theft-proof aerator for automatic drainage
  • discharge body with mounting surfaces

Standards and Approvals

  • DVGW approval according to DIN EN 17821
  • ÖVGW approval
  • VA approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • soundproofing certification according to DIN EN ISO 3822 Class 1
  • EN 1717

Technical data

  • min. installation depth 150 mm
  • pressure rating PN 16
  • max. operating temperature 65 °C

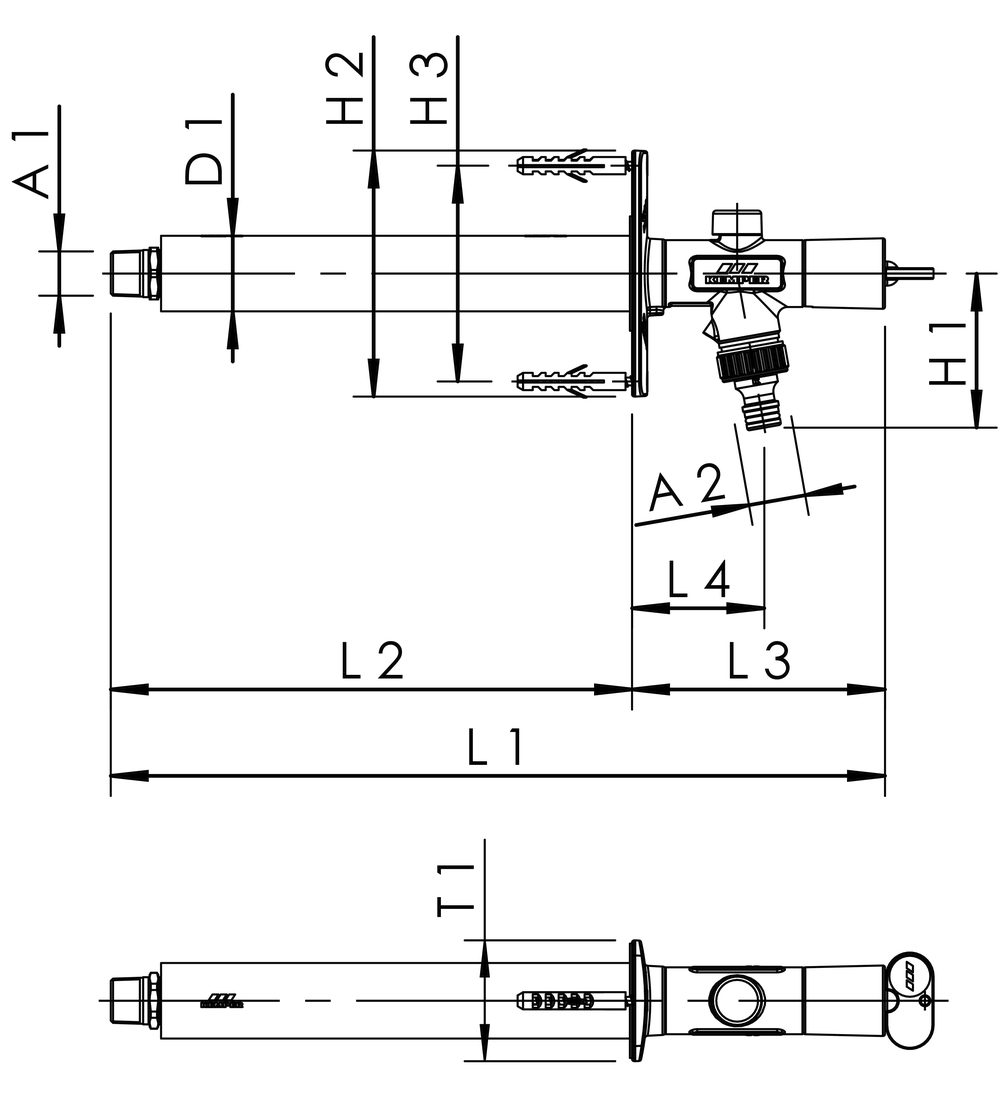

figure 579 02
Part no. DN A1 A2 D1
(mm)
H1
(mm)
H2
(mm)
H3
(mm)
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
T1
(mm)
flow
at 0.05 Mpa (l/s)
flow
at 0.1 MPa (l/s)
flow
at 0.15 Mpa (l/s)
kg
5790201500 15 R 1/2 G 3/4 35 71.5 114 100 359 242 117 61 56 0.46 0.67 0.82 1.27

CAD models

Part no. DN CAD model
5790201500 15 Show 3D data

Downloads

Data sheet
File type
Product datasheet
pdf
Brochures
File type
Building technology valves and systems
pdf (20.6 MB)
Instructions
File type
Assembly and operating instructions Frosti® Figure 579
pdf (4.8 MB)
