UP-ETA-THERM thermostatic balancing valve, for flush-mounted installation, 56°C - 58°C, San/Profipress

figure 544 02

  • thermostatic balancing valve for hydraulic balancing of very short circulation circuits from kv-min ≥ 0.05
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 544 02
figure 544 02
figure 544 02
figure 544 02
figure 544 02

Product Features

  • thermostatic balancing valve for hydraulic balancing of very short circulation circuits from kv-min ≥ 0.05
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • PTFE seat gasket
  • maintenance-free EPDM spindle seal
  • thermostatic balancing unit
  • plastic shaft can be shortened
  • can be extended with optional extension kit
  • press connection for Viega SANPRESS SST pipe and PROFIPRESS copper pipe
  • chrome-plated cap with allen socket for 6 mm allen key under purple identification plate
  • free from dead spots
  • with isolating, balancing and pre-setting function

Standards and Approvals

  • DVGW approval
  • ÖVGW approval
  • SVGW approval
  • WRAS approval
  • plastic parts with KTW and W 270 approval
  • for systems according to DVGW worksheet W 551 / W 553 / DIN 1988-300
  • according to accepted materials list from German environmental agency
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • max. installation depth 110 mm
  • control range 56 °C - 58 °C
  • pressure rating PN 16
  • max. operating temperature 90 °C

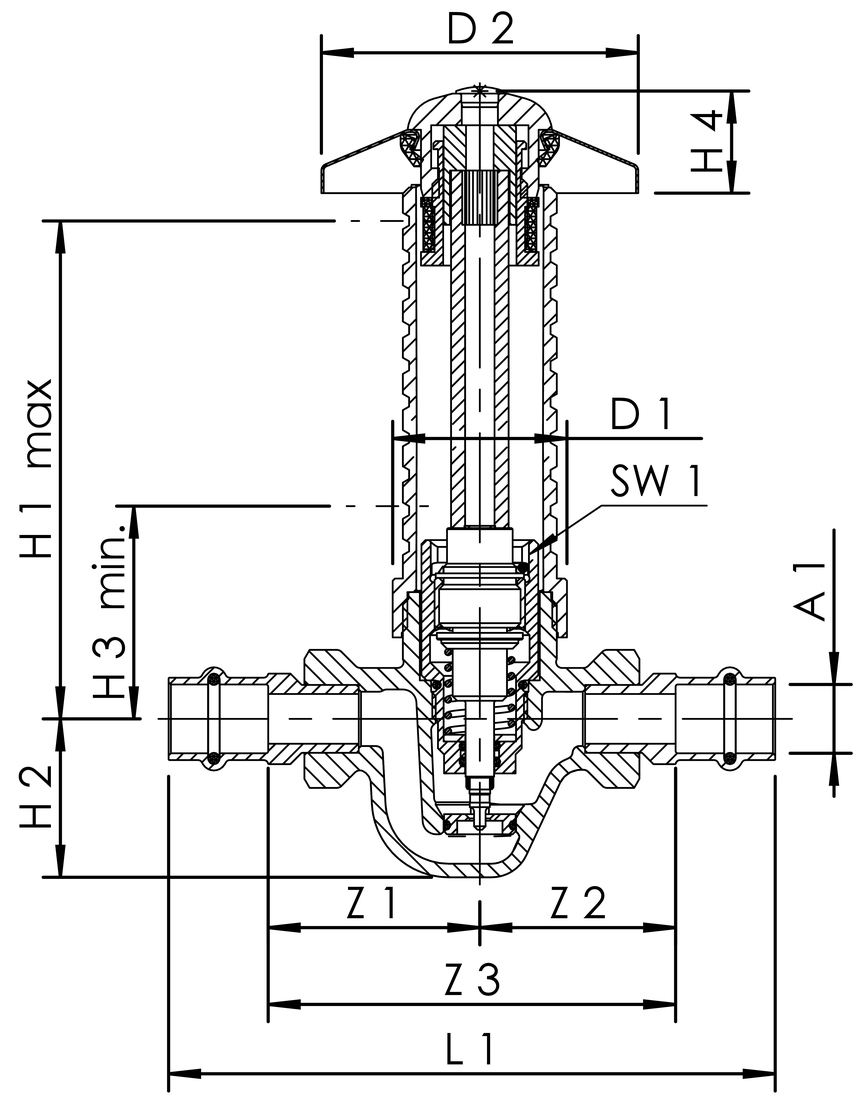

figure 544 02
Part no. DN A1
(mm) 		D1
(mm) 		D2
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		H4
(mm) 		L1
(mm) 		SW1
(mm) 		T1
(mm) 		Z1
(mm) 		Z2
(mm) 		Z3
(mm) 		cv
(m³/h) 		kg
5440201500 15 15 38.5 70 110 35 45 23.5 134 19 22 43.5 46.5 90 0.4 0.77
