test valve set for inspection of RPZ valves FK-4, figure 367 07

test valve set for inspection of RPZ valves FK-4

figure 367 07

to test the function of FK-4 RPZ backflow preventer using the differencial pressure measurement set (figure 360 99)
for connection to primary and reduced pressure zone
for all dimensions

Product datasheet PDF

Show planning data on pdod.de

figure 367 07

figure 367 07

Site navigation

Product features Planning data Downloads Spare parts Accessory of

Product Features

to test the function of FK-4 RPZ backflow preventer using the differencial pressure measurement set (figure 360 99)
for connection to primary and reduced pressure zone
for all dimensions

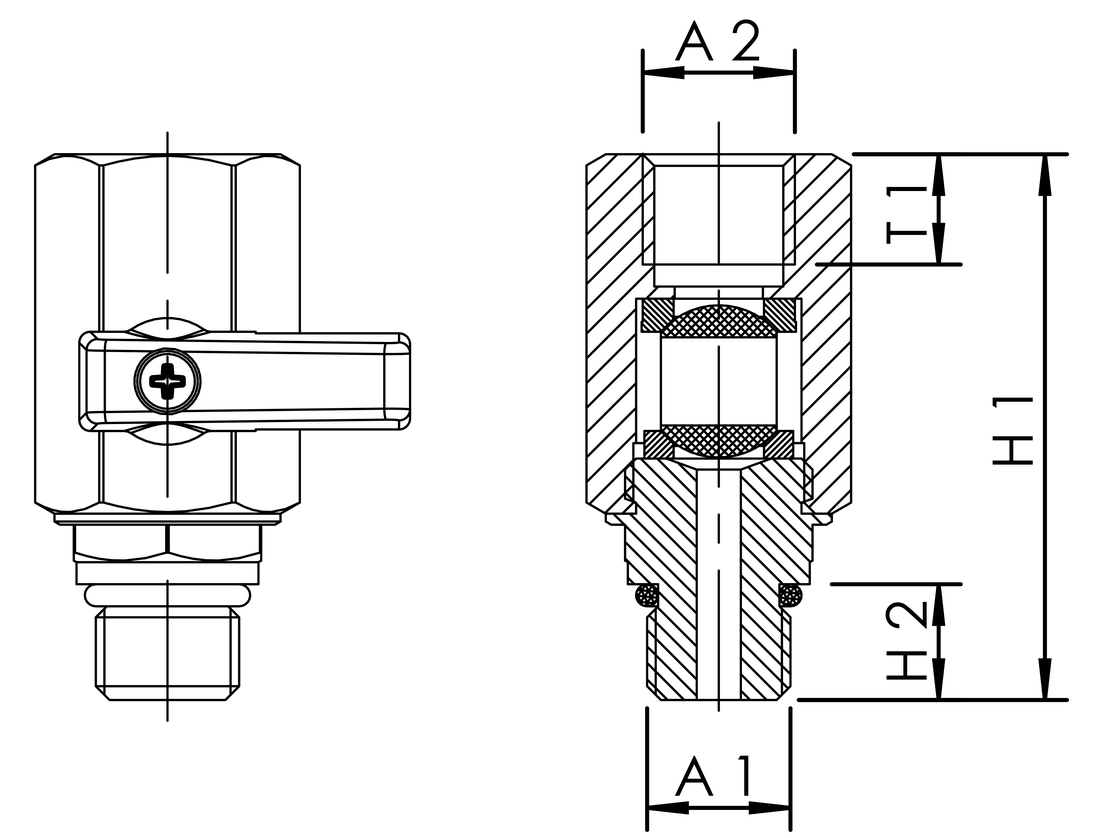

Part no.	A1	A2	H1 (mm)	H2 (mm)	T1 (mm)	kg
3670700200	G 1/4	G 1/4	54	15	10	0.19

Planning data

Show planning data on pdod.de

Downloads

Data sheet

File type

Product datasheet

pdf

Brochures

File type

Building technology valves and systems

pdf (20.6 MB)
