SST stop valve; MAPRESS, with drain valve

figure 073 01

  • wetted parts made of stainless steel
  • maintenance-free spindle sealing with self-lubricating and under pressure replaceable EPDM-lip gasket
  • EPDM-seat gasket

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 073 01
figure 073 01
figure 073 01
figure 073 01
figure 073 01

Product Features

  • wetted parts made of stainless steel
  • maintenance-free spindle sealing with self-lubricating and under pressure replaceable EPDM-lip gasket
  • EPDM-seat gasket
  • cone rotatable, protected against water hammer
  • press connection Geberit MAPRESS
  • with sidewise drain valve, rotatable hose connection element G 3/4
  • spindle thread not in contact with medium
  • wear-resistant stainless steel valve seat
  • with a black handwheel
  • free from dead spots
  • Open position indicator

Standards and Approvals

  • DVGW approval
  • SVGW approval
  • KIWA approval
  • VA approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • DIN EN 1213
  • ÜA-Reg.-Nr. R-15.2.3-21-17049, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 110 °C

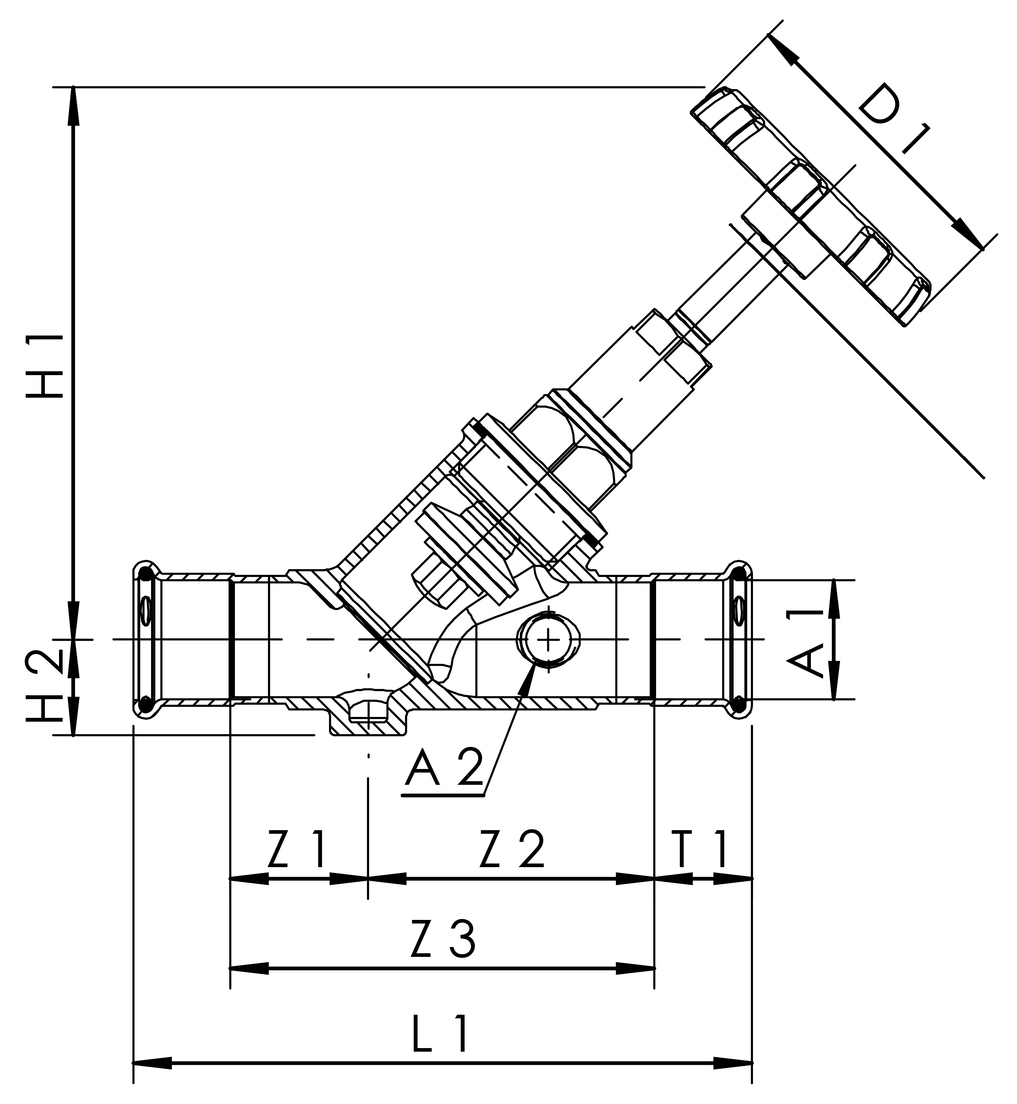

figure 073 01
Part no. DN A1
(mm) 		A2 D1
(mm) 		H1
(mm) 		H2
(mm) 		L1
(mm) 		T1
(mm) 		Z1
(mm) 		Z2
(mm) 		Z3
(mm) 		Zeta cv
(m³/h) 		kg
0730101500 15 15 G 1/4 60 100 17.5 112 20 22 50 72 2.3 5.9 0.48
0730102000 20 22 G 1/4 60 100 19 125 21 26 57 83 1.6 12.5 0.61
0730102500 25 28 G 1/4 70 128 22.5 146 23 35.5 64.5 100 1.4 21.3 0.91
0730103200 32 35 G 1/4 70 145 24 167 26 34 81 115 1.1 38.7 1.28
0730104000 40 42 G 1/4 70 153 28 189 30 36 92 128 1.8 47.2 1.81
0730105000 50 54 G 1/4 90 195 33 222 35 41 111 152 1.4 84.8 2.89

CAD models & characteristic curves

Part no. DN CAD model Flow chart
0730101500 15 Show 3D data Show flow chart
0730102000 20 Show 3D data Show flow chart
0730102500 25 Show 3D data Show flow chart
0730103200 32 Show 3D data Show flow chart
0730104000 40 Show 3D data Show flow chart
0730105000 50 Show 3D data Show flow chart

Planning data

Show planning data on pdod.de

Downloads

Data sheet
File type
Product datasheet
pdf
Brochures
File type
Building technology valves and systems
pdf (20.6 MB)
Technical information
File type
Flow Diagram WESER stop valve
pdf (98 KB)
