Frost-proof outdoor taps
More about the products

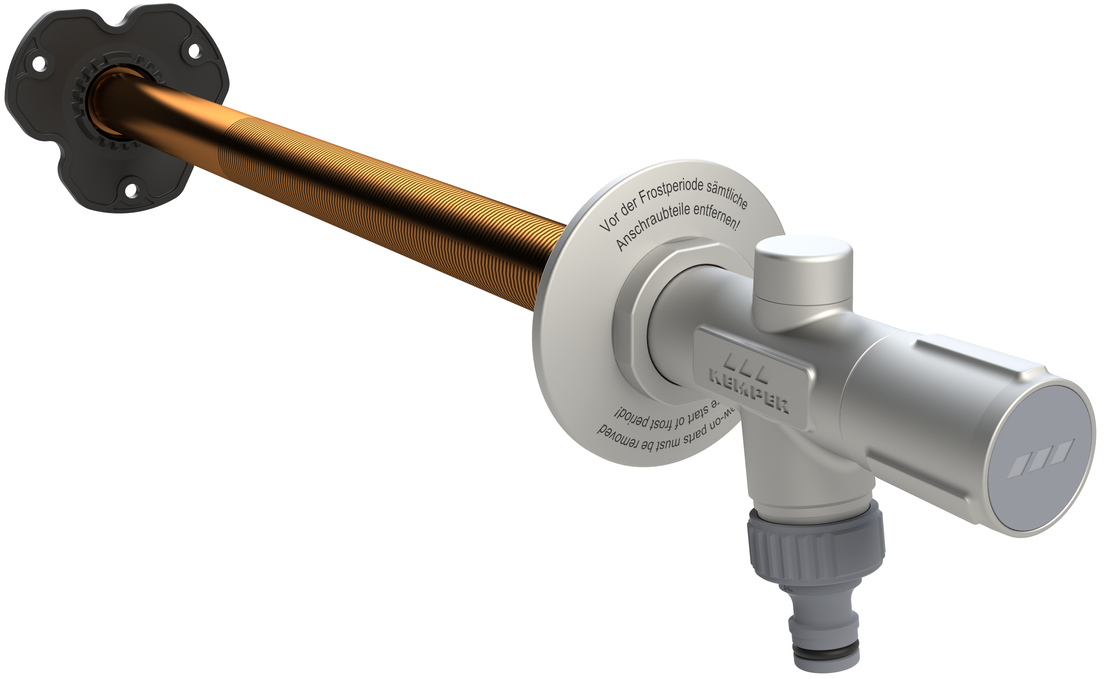

FROSTI® frost-proof outdoor valve, with operating handle, construction set version, figure 578 00

FROSTI® frost-proof outdoor valve, with operating handle, construction set version

figure 578 00

  • construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • universal length for all common installation depths

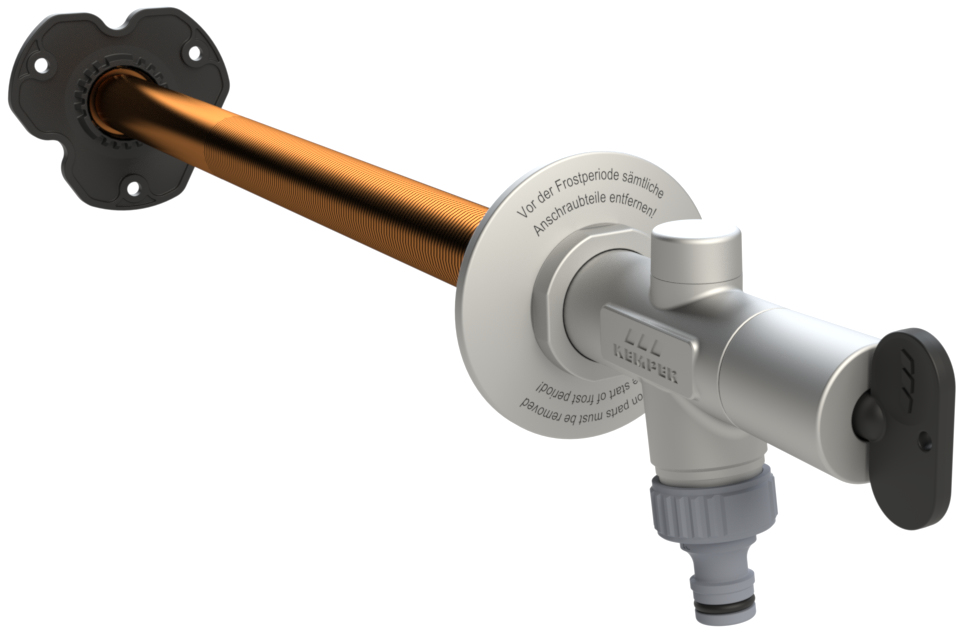

FROSTI® frost-proof outdoor valve, with socket wrench, construction set version, figure 578 03

FROSTI® frost-proof outdoor valve, with socket wrench, construction set version

figure 578 03

  • construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • universal length for all common installation depths

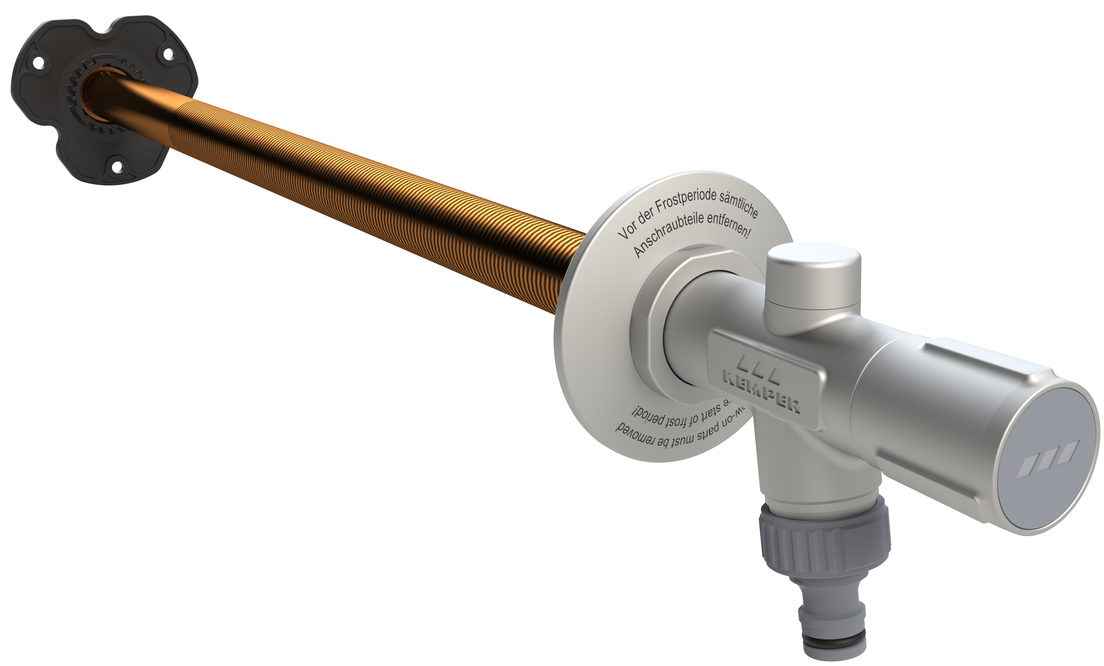

FROSTI® XL frost-proof outdoor valves, with operating handle, XL construction set version, figure 578 05

FROSTI® XL frost-proof outdoor valves, with operating handle, XL construction set version

figure 578 05

  • construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • special length for large wall thickness

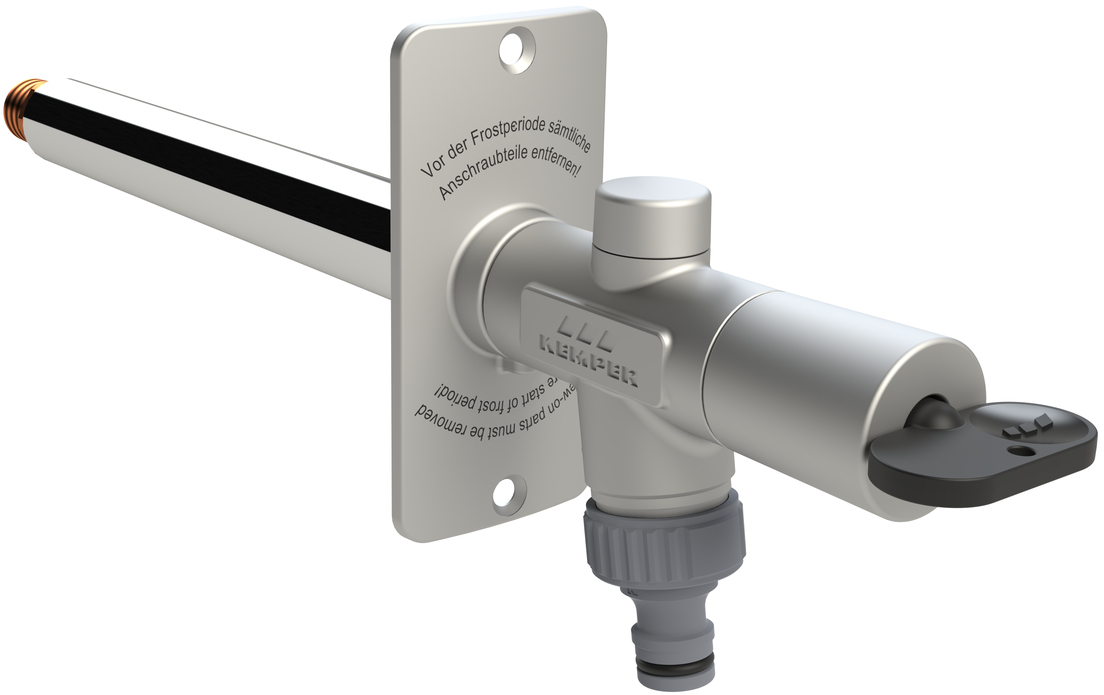

FROSTI® frost-proof outdoor valves, pre-mounted design, figure 579 02

FROSTI® frost-proof outdoor valves, pre-mounted design

figure 579 02

  • pre-assembled
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • suitable for fast subsequent installation on already finished outer wall
Products

Frost-proof outdoor taps

Frost-protected outdoor tap

The FROSTI® frost-proof outdoor tap is permanently installed and automatically drains itself every time it is shut off. This means that no residual water remains in the area that is at risk from frost. Water damage from a frozen outdoor tap is a thing of the past. The tap can therefore be used all year round and it is no longer necessary to drain it manually.

No more bacteria growth caused by lack of use of outside tap

By completely draining the valve, bacteria growth caused by stagnant water that would otherwise compromise the quality of the drinking water is also prevented.

Operating principle

FROSTI®-PLUS

Frost-proof outdoor tap as a set

The set allows the valve to be installed as early as the shell construction phase. The discharge body is mounted after the outer wall has been completed.

  • A single end-to-end length for installation depths from 150 to 415 mm (XL version from 150 to 530 mm)*
  • Continuous adjustment to outer wall thicknesses up to 655 mm (XL version up to 770 mm) possible with “Extension for FROSTI®-PLUS” (Figure 574 00 002)
  • Above-average discharge of 40 l per minute at 0.1 MPa (1.0 bar) flow pressure
  • All parts wetted in a closed state are made of gunmetal and so can be used for all drinking water qualities

*with surface mounting

FROSTI®

Frost-proof outdoor tap, factory pre-assembled

The factory pre-assembled valve for subsequent quick and easy installation on already finished outer walls. With a total external diameter of only 27 mm and adjustable collar.

  • A single end-to-end length for installation depths from 150 to 415 mm (XL version from 150 to 530 mm)*
  • Can be extended to any length on the construction site for wall thicknesses from 150 to 492 mm
  • Universal R 1/2" connection and 15 mm Cu pipe for soldering and pressing
  • Above-average discharge of 40 l per minute at 0.1 MPa (1.0 bar) flow pressure
  • All parts wetted in closed state are made of gunmetal and so can be used for all drinking water qualities

*for surface mounting
