FROSTI® frost-proof outdoor valves, pre-mounted design

figure 579 11

  • pre-assembled
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • suitable for fast subsequent installation on already finished outer wall

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 579 11
figure 579 11
figure 579 11

Product Features

  • pre-assembled
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • suitable for fast subsequent installation on already finished outer wall
  • inner top part for quick opening operation (two turns)
  • high discharge capacity of 40 l / min (1 bar)
  • EPDM-seat gasket
  • can be extended to any length at construction site
  • inlet male pipe thread
  • free from dead spots
  • incl. hose coupling for common connection systems
  • flexible installation length with sliding wall disc in outdoor area
  • matt chrome-plated handle with over-twist protection
  • with theft-proof socket key operated
  • with theft-proof aerator for automatic drainage
  • discharge body with mounting surfaces

Standards and Approvals

  • WRAS approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • soundproofing certification according to DIN EN ISO 3822 Class 1
  • EN 1717

Technical data

  • min. installation depth 150 mm
  • pressure rating PN 16
  • max. operating temperature 65 °C

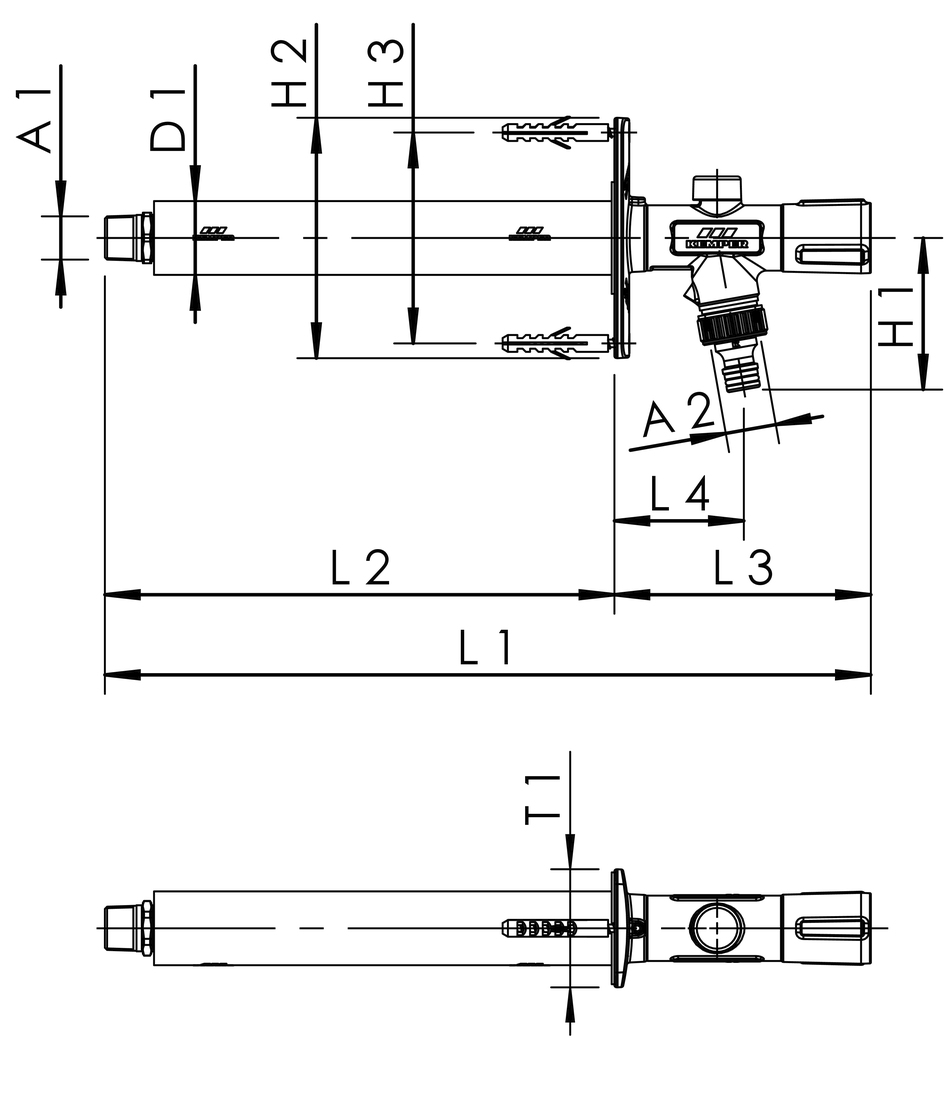

Part no. DN A1 A2 D1
(mm) 		D2
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		L4
(mm) 		L5
(mm) 		L6
(mm) 		T1
(mm) 		flow
at 0.05 Mpa (l/s) 		flow
at 0.1 MPa (l/s) 		flow
at 0.15 Mpa (l/s) 		kg
5791101500 15 R 1/2 G 3/4 35 15 71.5 114 100 363 242 122 61.5 495 253.5 56 0.46 0.67 0.82 1.44
