FROSTI® frost-proof outdoor valve, with operating handle, construction set version

figure 578 11

  • construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • universal length for all common installation depths

Product Features

  • construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
  • wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
  • universal length for all common installation depths
  • inner top part for quick opening operation (two turns)
  • EPDM-seat gasket
  • can be extended with optional extension kit
  • inlet male pipe thread
  • free from dead spots
  • incl. hose coupling for common connection systems
  • high discharge capacity up to 40 l / min (1 bar)
  • with theft-proof aerator for automatic drainage
  • matt chrome-plated handle with over-twist protection
  • with theft-proof socket key operated
  • incl. fastened anti-twist protection
  • incl. two-part drop ear elbow for wall-flush closing
  • discharge body with mounting surfaces

Standards and Approvals

  • WRAS approval
  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • soundproofing certification according to DIN EN ISO 3822 Class 1
  • EN 1717

Technical data

  • min. installation depth 150 mm
  • max. installation depth 415 mm
  • pressure rating PN 16
  • max. operating temperature 65 °C

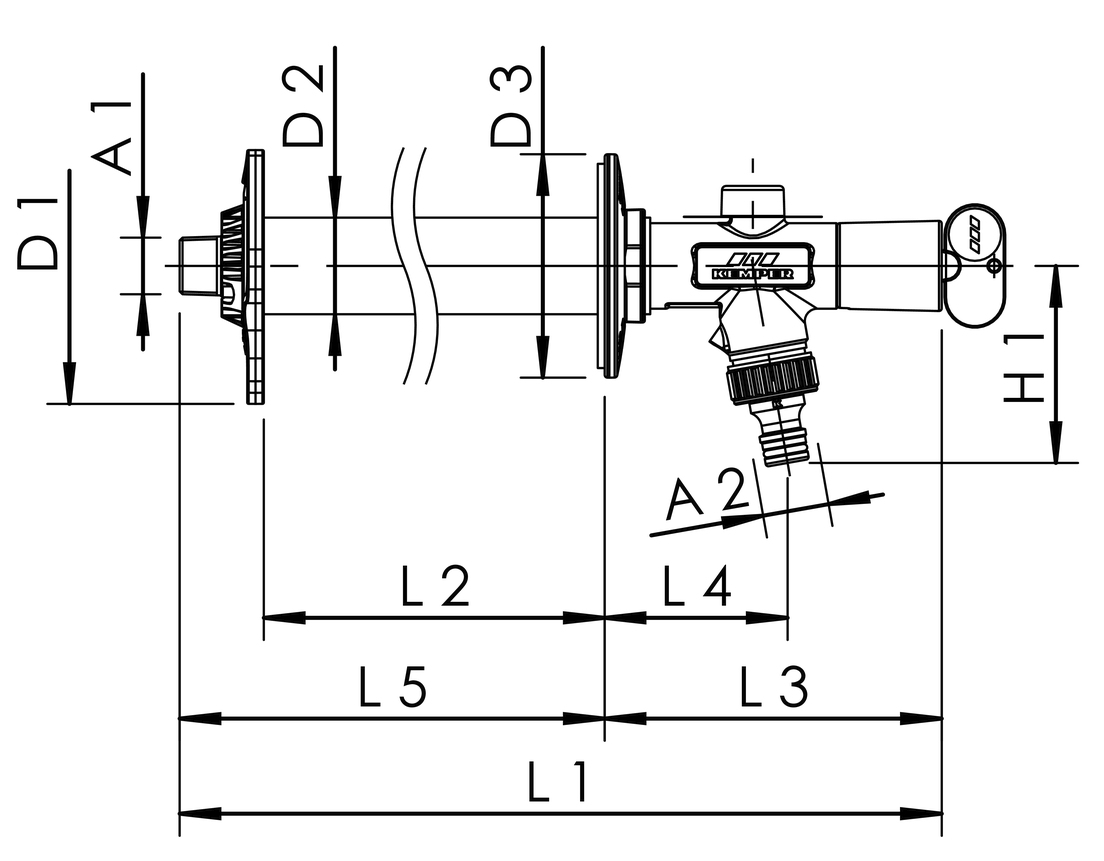

figure 578 11
Part no. DN A1 A2 D1
(mm)
D2
(mm)
D3
(mm)
H1
(mm)
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
L5
(mm)
flow
at 0.05 Mpa (l/s)
flow
at 0.1 MPa (l/s)
flow
at 0.15 Mpa (l/s)
kg
5781101500 15 R 1/2 G 3/4 100 35 81 71.5 556 403.5 122 66.5 434 0.46 0.67 0.82 1.81

CAD models

Part no. DN CAD model
5781101500 15 Show 3D data

Downloads

Data sheet
File type
Product datasheet
pdf
Brochures
File type
FROSTI® frost-proof outdoor taps
pdf (2.2 MB)
Instructions
File type
Installation and Operating Instuctions
pdf (7 MB)
