stainless steel UP-PLUS inner top part

figure E0120 056 00

  • to isolate, regulate and pre-set
  • EPDM-seat gasket
  • incl. plastic operating spindle that can be cut to length

Product datasheet PDF

Show planning data on pdod.de

figure E0120 056 00
figure E0120 056 00
figure E0120 056 00
figure E0120 056 00
figure E0120 056 00

Product Features

  • to isolate, regulate and pre-set
  • EPDM-seat gasket
  • incl. plastic operating spindle that can be cut to length
  • wetted parts made of stainless steel

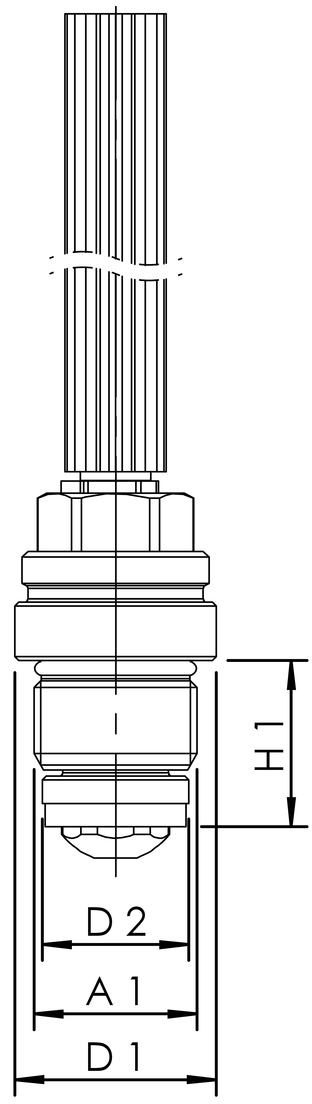

Part no. for DN A1 D1
(mm) 		D2
(mm) 		H1
(mm) 		inner shaft diameter thread kg
E01200560001500 15-20 G 1/2 26 18 21 26 G 1/2 0.11
