combined stop-and check valve inner top part for gunmetal flush-mounted valves UP-PLUS, figure E0109 561 00

combined stop-and check valve inner top part for gunmetal flush-mounted valves UP-PLUS

figure E0109 561 00

EPDM-seat gasket
incl. plastic operating spindle that can be cut to length
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Site navigation

EPDM-seat gasket
incl. plastic operating spindle that can be cut to length
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
check valve with SST spring

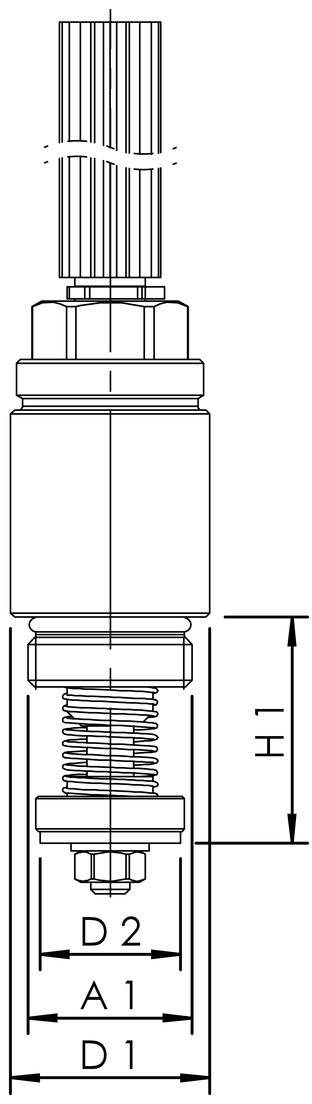

Part no.	DN	for DN	D1 (mm)	D2 (mm)	H1 (mm)	inner shaft diameter	thread	kg
E01095610001500	15	15-20	25.5	18	29	26	M 21 x 1,25	0.20
