bonnet with check function for combined stop and check valve

figure E0101 160 01

  • suitable for e.g. figure 160 and figure 193
  • incl. EPDM-bonnet gasket
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Product datasheet PDF

Show planning data on pdod.de

figure E0101 160 01
figure E0101 160 01
figure E0101 160 01
figure E0101 160 01
figure E0101 160 01

Product Features

  • suitable for e.g. figure 160 and figure 193
  • incl. EPDM-bonnet gasket
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • check valve with SST spring

Standards and Approvals

  • according to accepted materials list from German environmental agency
  • for valves acc. DIN 3502 / acc. to DIN EN 13959 provisions

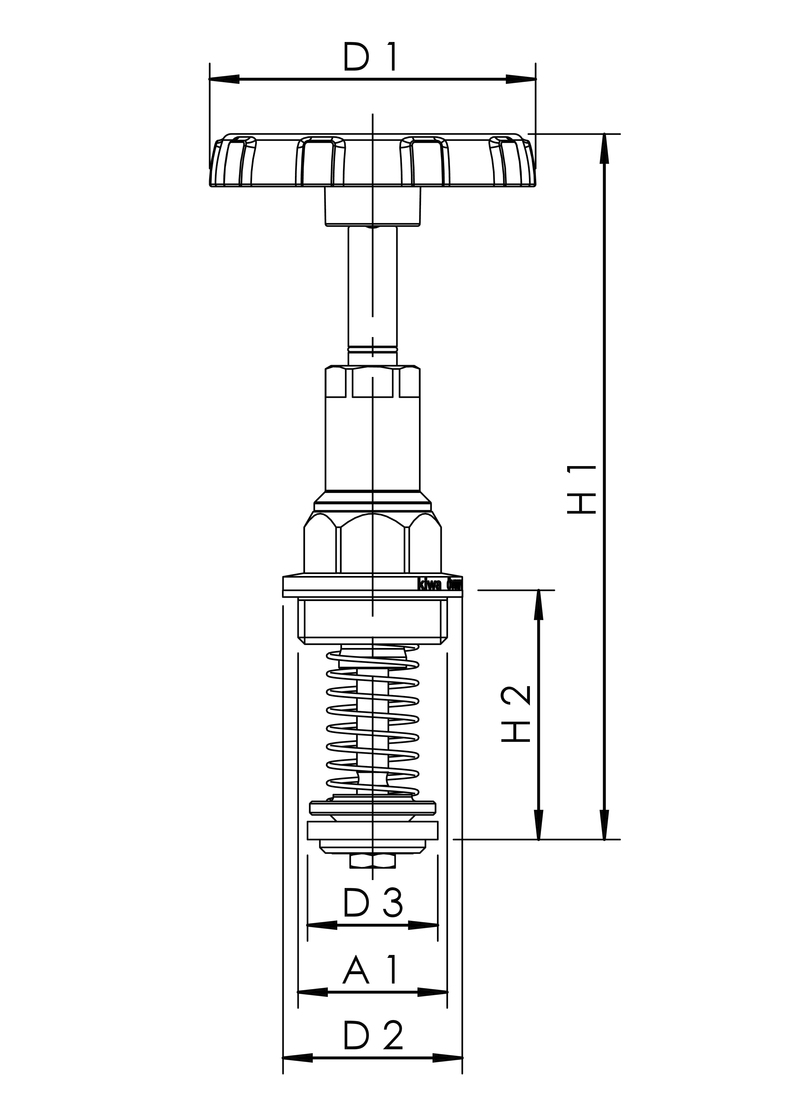

Part no. for DN A1 A1 D1
(mm) 		D2
(mm) 		D3
(mm) 		H1
(mm) 		H2
(mm) 		suitable for figure kg
E010116001015KP 15 G 1/2 60 26.4 17 115.5 35.5 160, 193 and 137 0.20
E010116001020KP 20 G 3/4 60 32.4 23 119.7 43 160, 193 and 137 0.28
E010116001025KP 25 G 1 70 39.9 29 154 52.5 160, 193 and 137 0.46
E010116001032KP 32 G 1 1/4 70 49.9 37 183.6 63.6 160, 193 and 137 0.54
E010116001040KP 40 G 1 1/2 70 57.9 42 189.6 72.5 160, 193 and 137 0.63
E010116001050KP 50 G 2 90 69.9 54 228 89.6 160, 193 and 137 0.84
E010116000065KP 65 G 1 1/2 120 87.9 67.5 375.4 90 160 and 137 2.09
E010116000080KP 80 G 3 120 101.9 80.5 415.5 99.6 160 and 137 2.59
E010116000100KP 100 M110 x 2 120 120.9 100 332.9 110 160 and 137 3.04

Planning data

Show planning data on pdod.de
