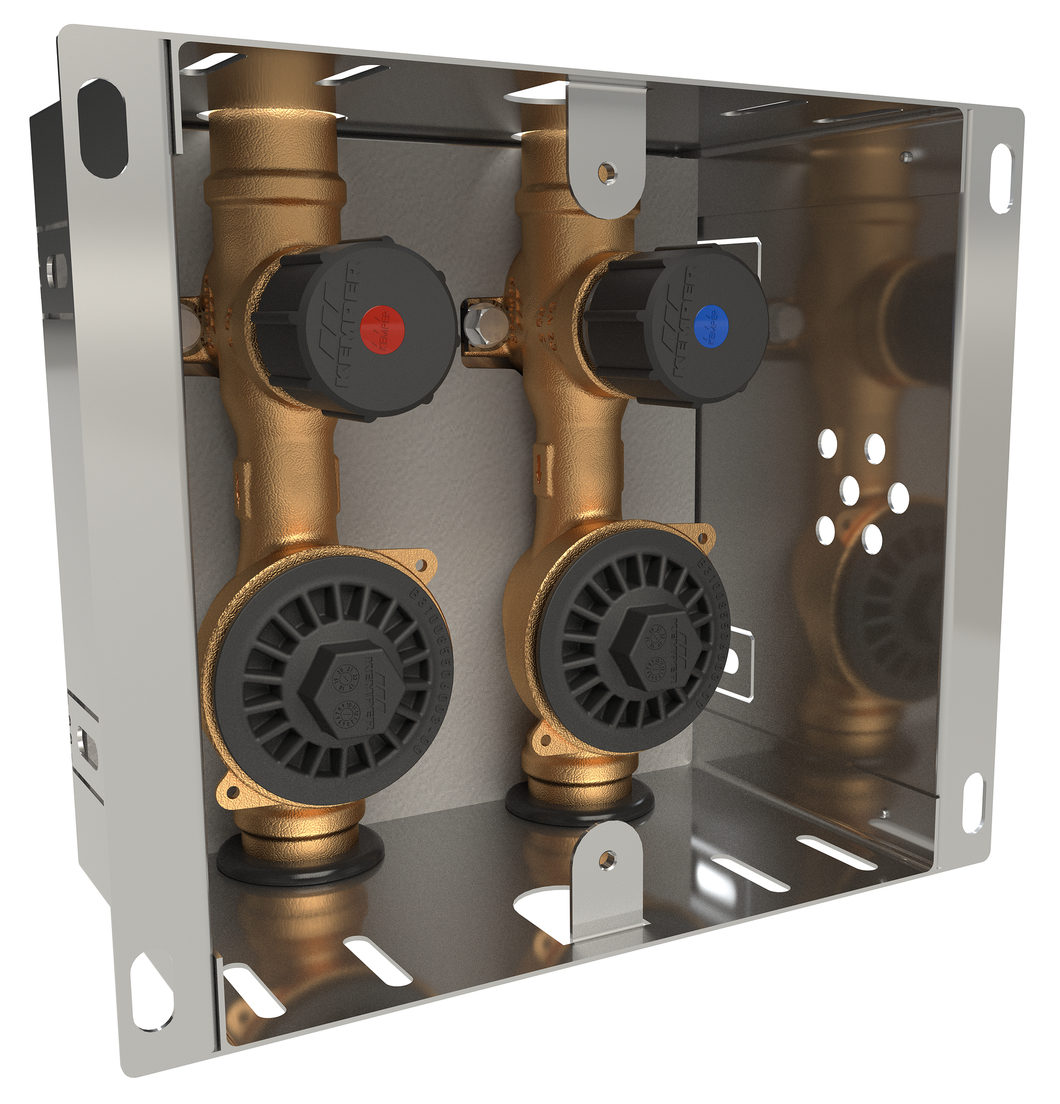

DUO stop valve water meter box
figure 870 07
- inside micrometer 88 mm
- internal parts made of gunmetal, stainless steel and plastic
- housing with G 2 coaxial thread for meter cartridges
- for wall surface installation, as a space-saving, galvanised steel case with versatile mounting options for existing wall systems
- with two permanently integrated, cast in a single piece, non-rotating and sound-insulated stop water meter combinations
- for installation of a cold and hot water
- with overflow cap and dirt protection during installation for the construction phase
- suitable for radio readouts
- can be covered by optional front panels
- with two flow rate-optimised direct seat valves and water meter housings
- maintenance-free EPDM spindle seal
- female pipe thread
- handle with blue or red dot for identification
- free from dead spots
- wear-resistant stainless steel valve seat
