MULTI-THERM thermostatic balancing valve
More about the products

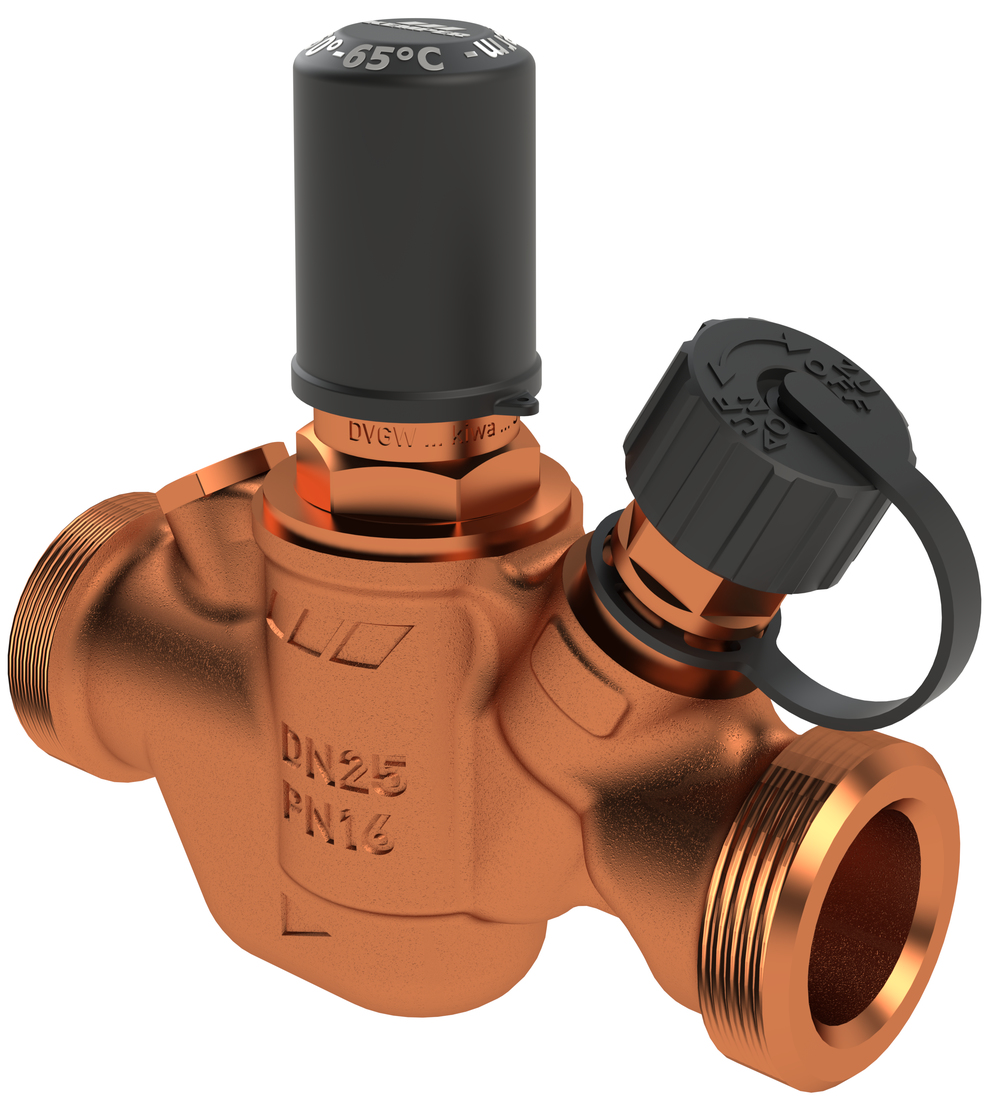

MULTI-THERM thermostatic balancing valve, union thread, 50 °C - 65 °C, figure 141 0G

MULTI-THERM thermostatic balancing valve, union thread, 50 °C - 65 °C

figure 141 0G

  • control range 50 °C - 65 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • male union thread

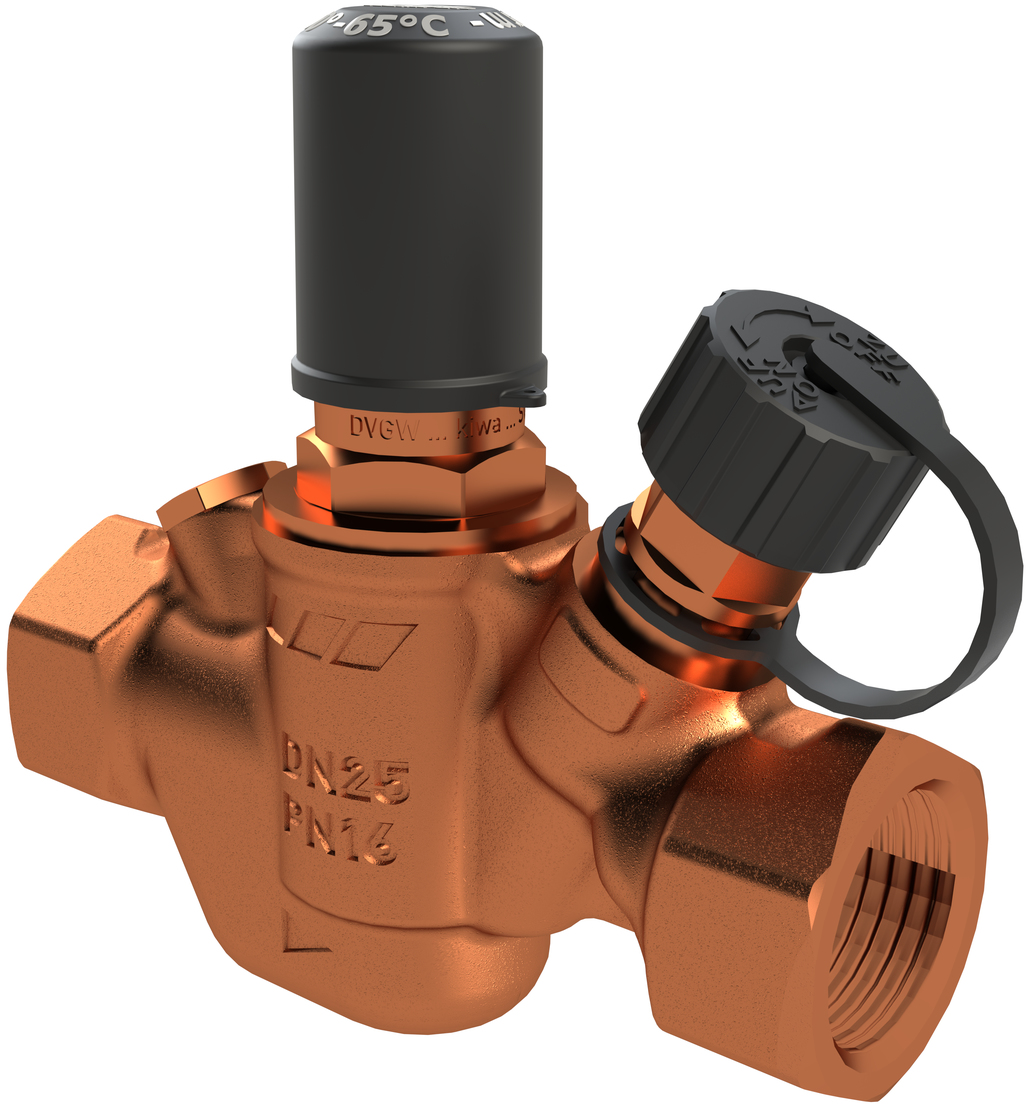

MULTI-THERM thermostatic balancing valve, FPT, 50 °C - 65 °C, figure 143 00

MULTI-THERM thermostatic balancing valve, FPT, 50 °C - 65 °C

figure 143 00

  • control range 50 °C - 65 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • female pipe thread

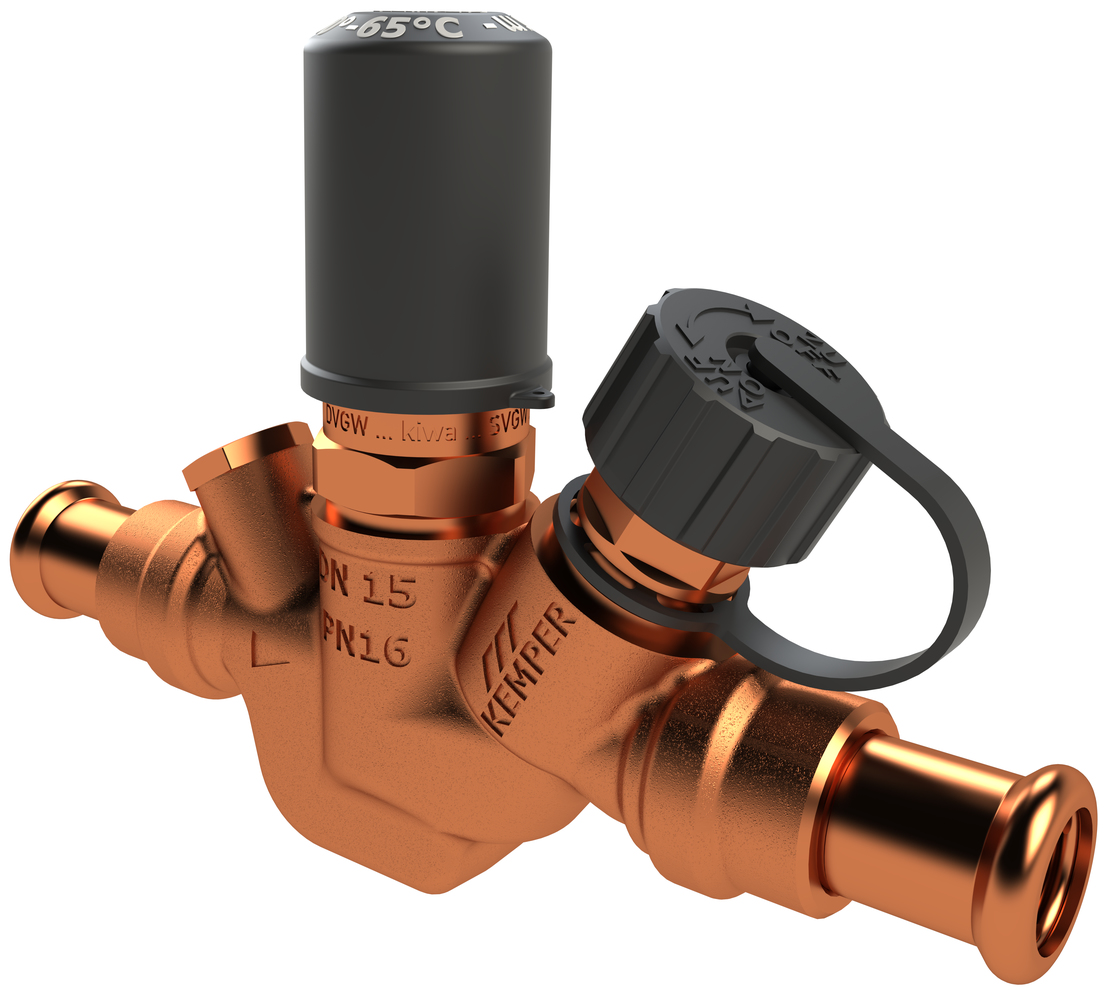

MULTI-THERM thermostatic balancing valve, MAPRESS, 50 °C - 65 °C, figure 143 22

MULTI-THERM thermostatic balancing valve, MAPRESS, 50 °C - 65 °C

figure 143 22

  • control range 50 °C - 65 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • press connection for Geberit MAPRESS pipe

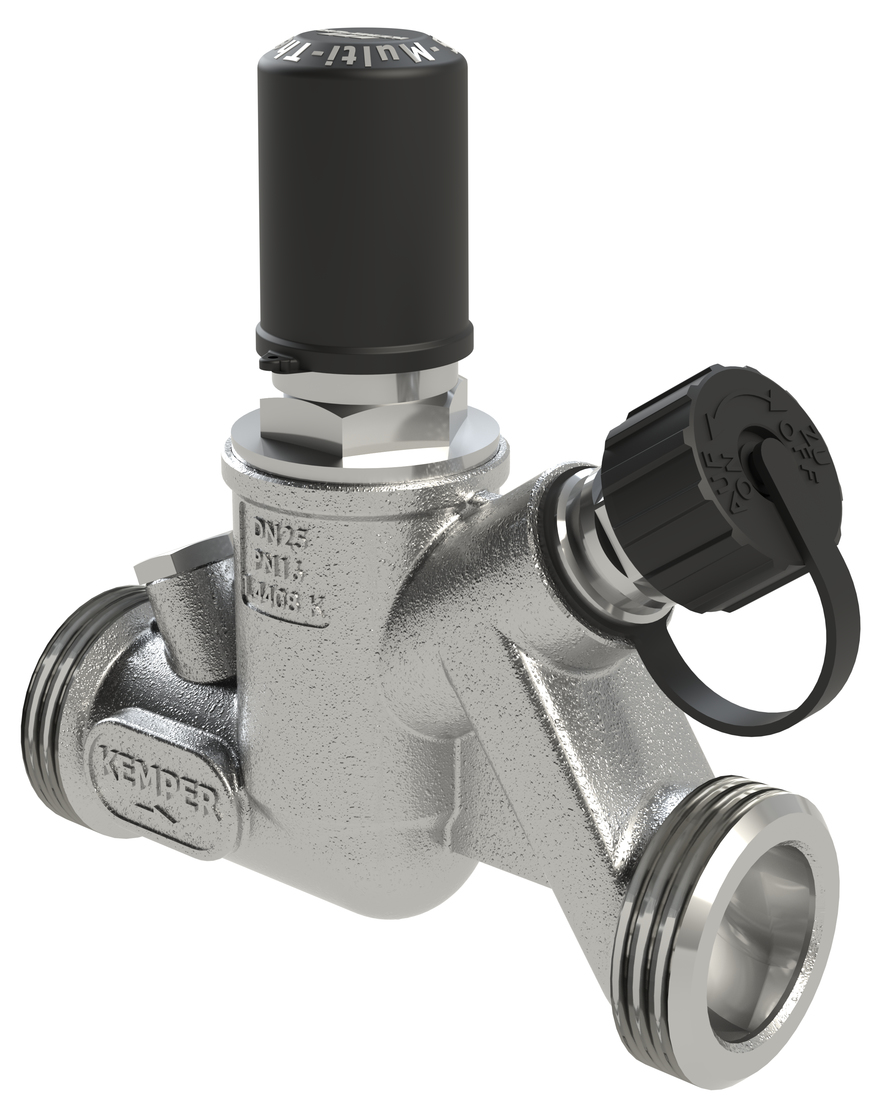

SST MULTI-THERM thermostatic balancing valve, 50 °C - 65 °C, union thread, figure 041 0G

SST MULTI-THERM thermostatic balancing valve, 50 °C - 65 °C, union thread

figure 041 0G

  • control range 50 °C - 65 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted parts made of stainless steel
  • male union thread

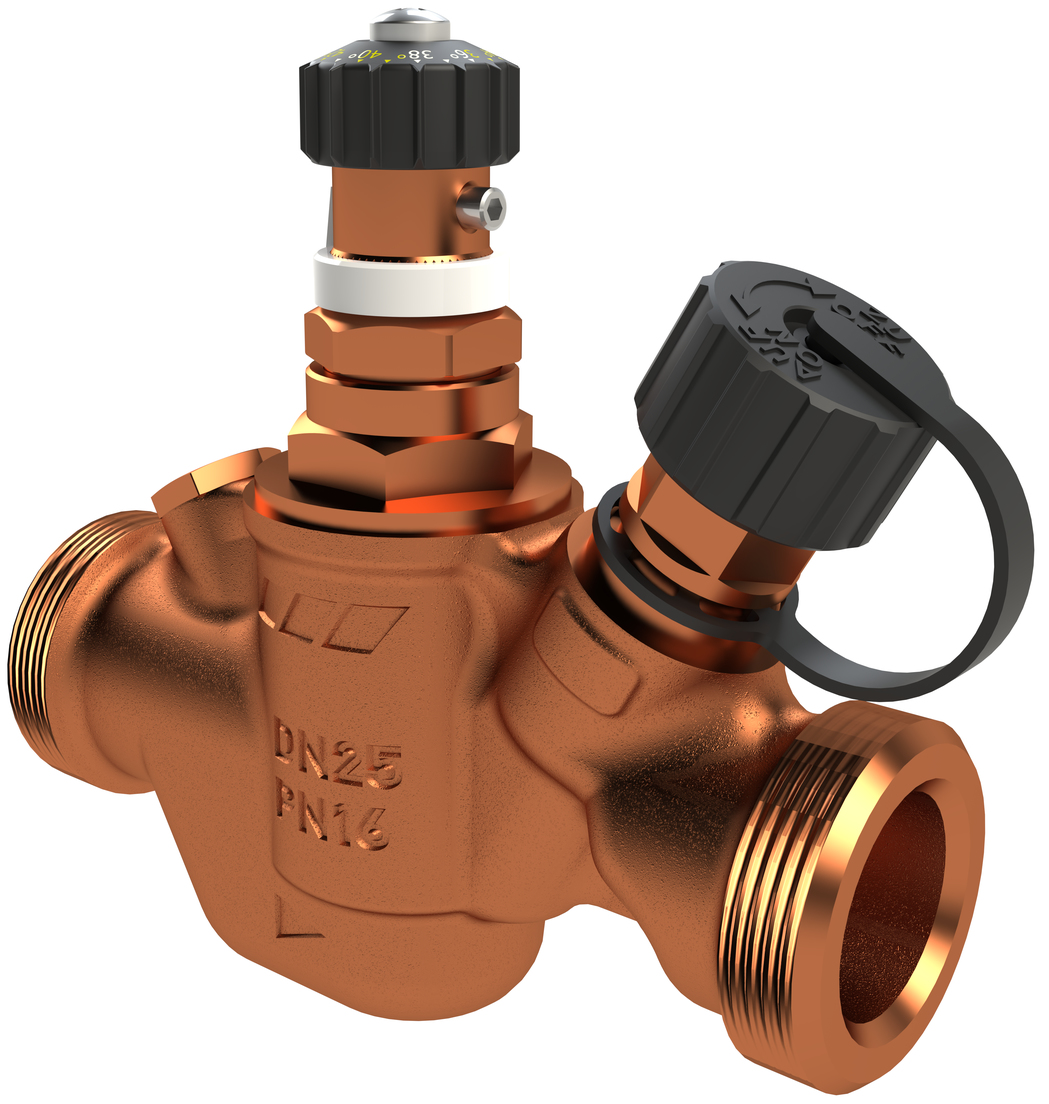

THERM thermostatic balancing valve, union thread, 30 °C - 50 °C, figure 140 0G

THERM thermostatic balancing valve, union thread, 30 °C - 50 °C

figure 140 0G

  • control range 30 °C - 50 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • male union thread

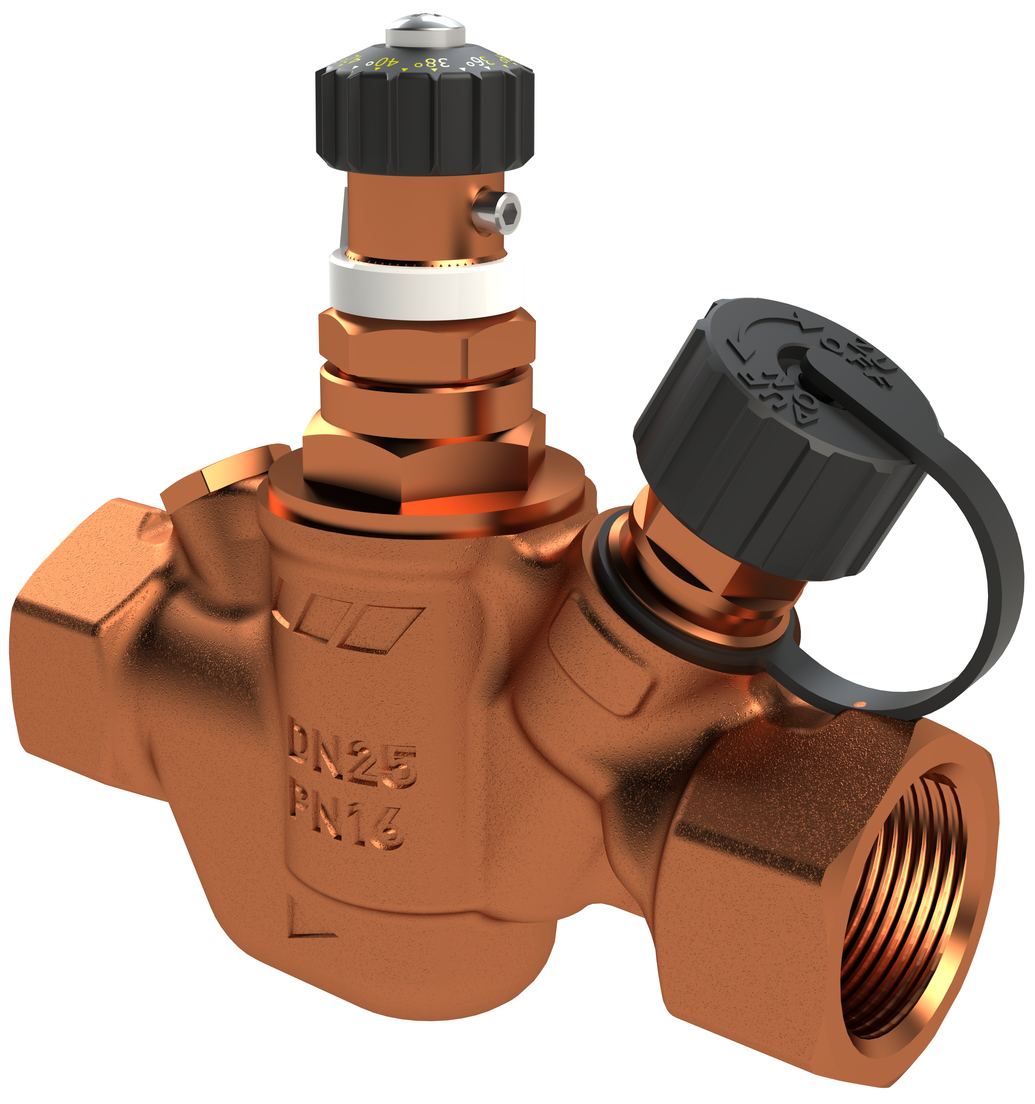

THERM thermostatic balancing valve, FPT, 30 °C - 50 °C, figure 142 00

THERM thermostatic balancing valve, FPT, 30 °C - 50 °C

figure 142 00

  • control range 30 °C - 50 °C
  • thermostatic balancing valve for hydraulic balancing of riser and distribution pipes
  • for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • female pipe thread
Products

MULTI-THERM thermostatic balancing valve

The MULTI-THERM automatically adjusts the hydraulic balancing depending on the temperature in circulation lines of the hot drinking water.

Circulation balancing valves must allow water to circulate at all times. Water must be able to continue to flow even after the target temperature is reached. Particularly for thermal disinfection, it is important for the water to be able to circulate continuously at a high temperature so that the circulation pump does not work against closed valves. These technical requirements are met by the MULTI-THERM.

With a factory setting of 58°C, the valve is fully open up to a valve temperature of approximately 53°C.

From 53°C pressure is lost due to the temperature-dependent cross-sectional change in the valve. When the target temperature reached, valve throttle position is set to its maximum, whereby a minimum volume constantly flows in the circulation system. The MULTI-THERM also supports the thermal disinfection.

Shut off, measure, drain

An immersion sleeve is integrated in the bonnet of the stop valve. A Pt 1000 temperature sensor (1) or a plug-in thermometer (2) can be used as an alternative to the attached handle. Temperature data can thus also be transmitted via the building management system or via the CONTROL-PLUS hand-held measuring device. Furthermore, a drain valve (3) can be installed on the MULTI-THERM to drain the line.
