Manual Balancing Valves
More about the products
MULTI-FIX-PLUS static balancing valve, union thread, figure 150 6G

MULTI-FIX-PLUS static balancing valve, union thread

figure 150 6G

  • for hydraulic balancing of hot water return systems (PWH-C)
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • male union thread
  • with plugged drain port
  • with indicator for pre-setting

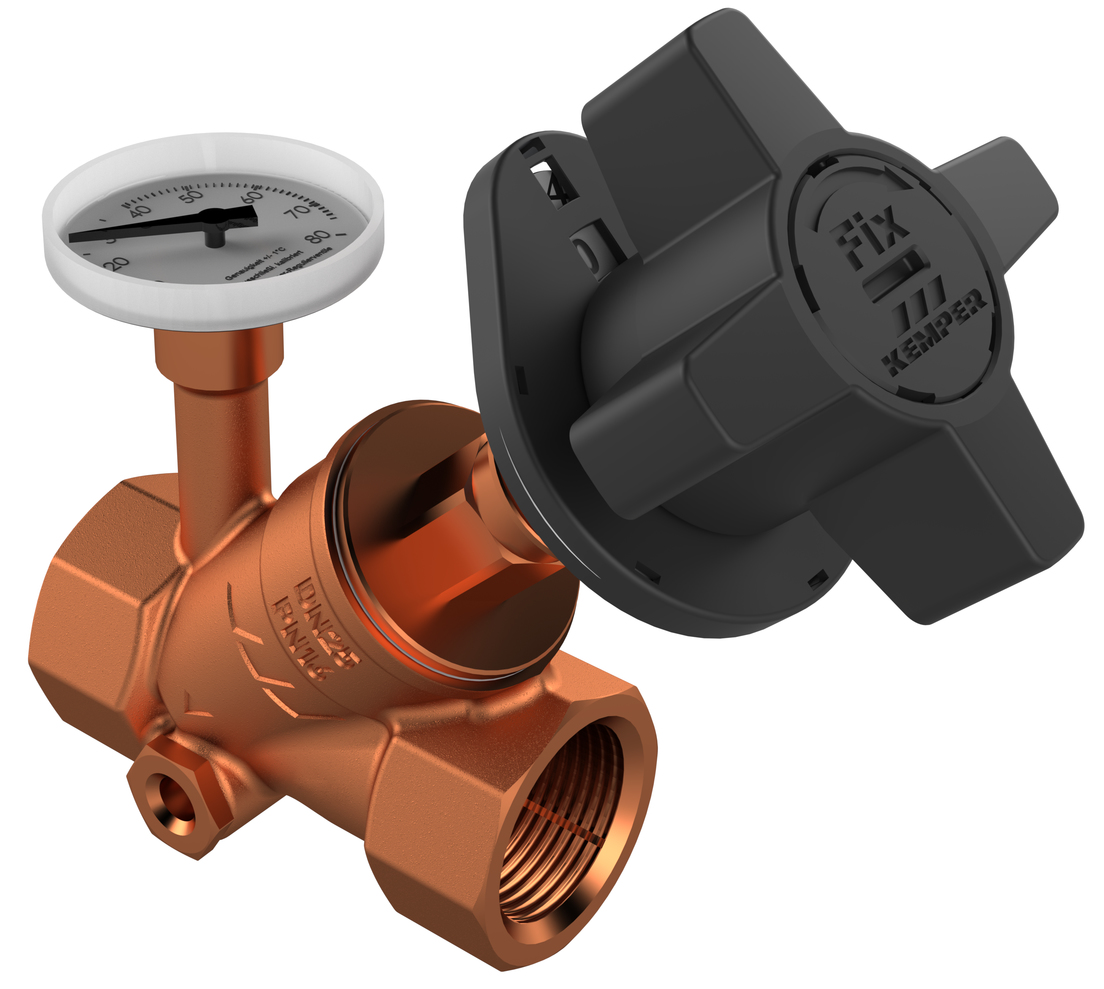

MULTI-FIX-PLUS static balancing valve, FPT, figure 151 06

MULTI-FIX-PLUS static balancing valve, FPT

figure 151 06

  • for hydraulic balancing of hot water return systems (PWH-C)
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • female pipe thread
  • with plugged drain port
  • with indicator for pre-setting

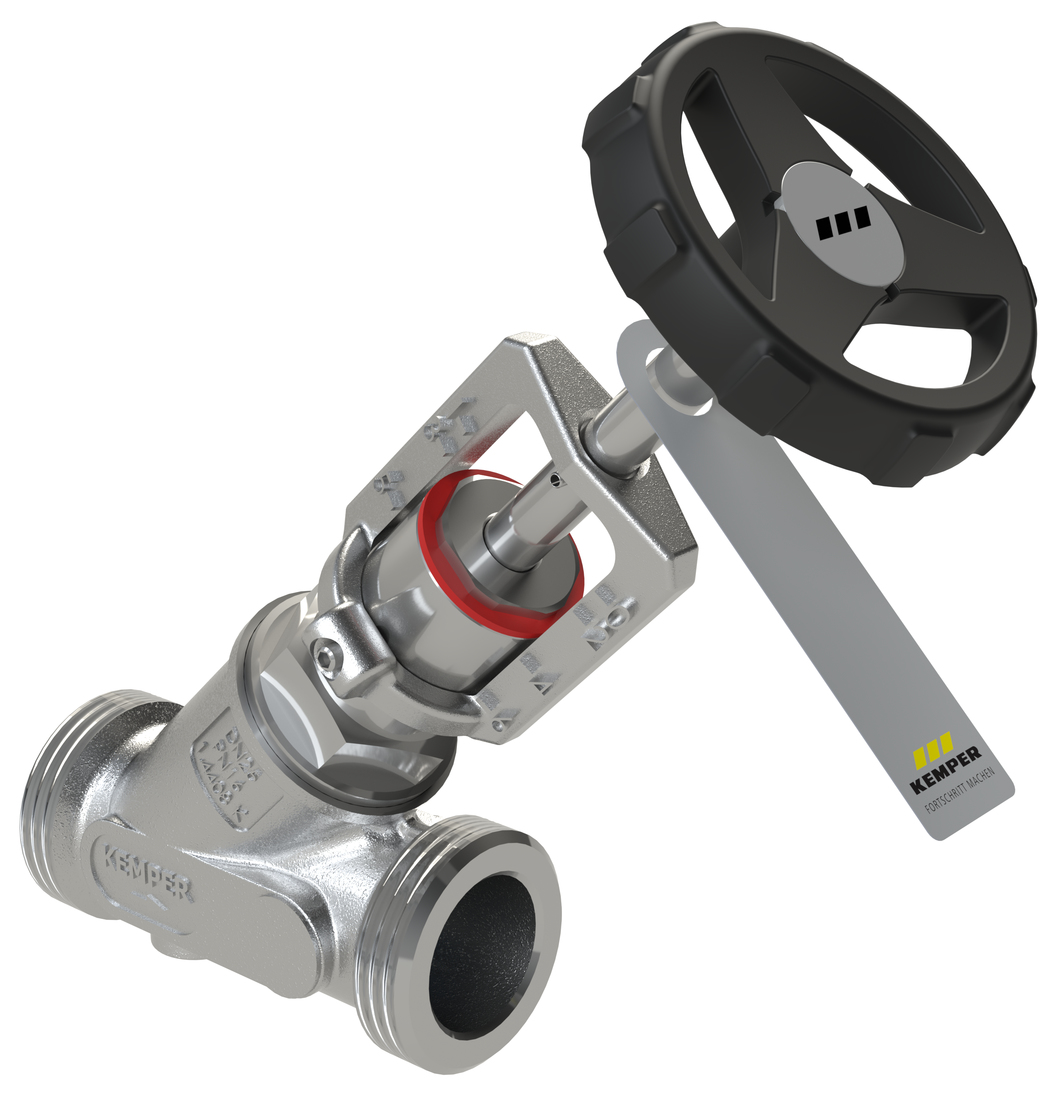

SST throttle valve, union thread, figure 078 0G

SST throttle valve, union thread

figure 078 0G

  • for hydraulic balancing of hot water return systems (PWH-C)
  • wetted parts made of stainless steel
  • male union thread
  • indication of pre-setting on bracket
  • without drain port (drain valve cannot be added)

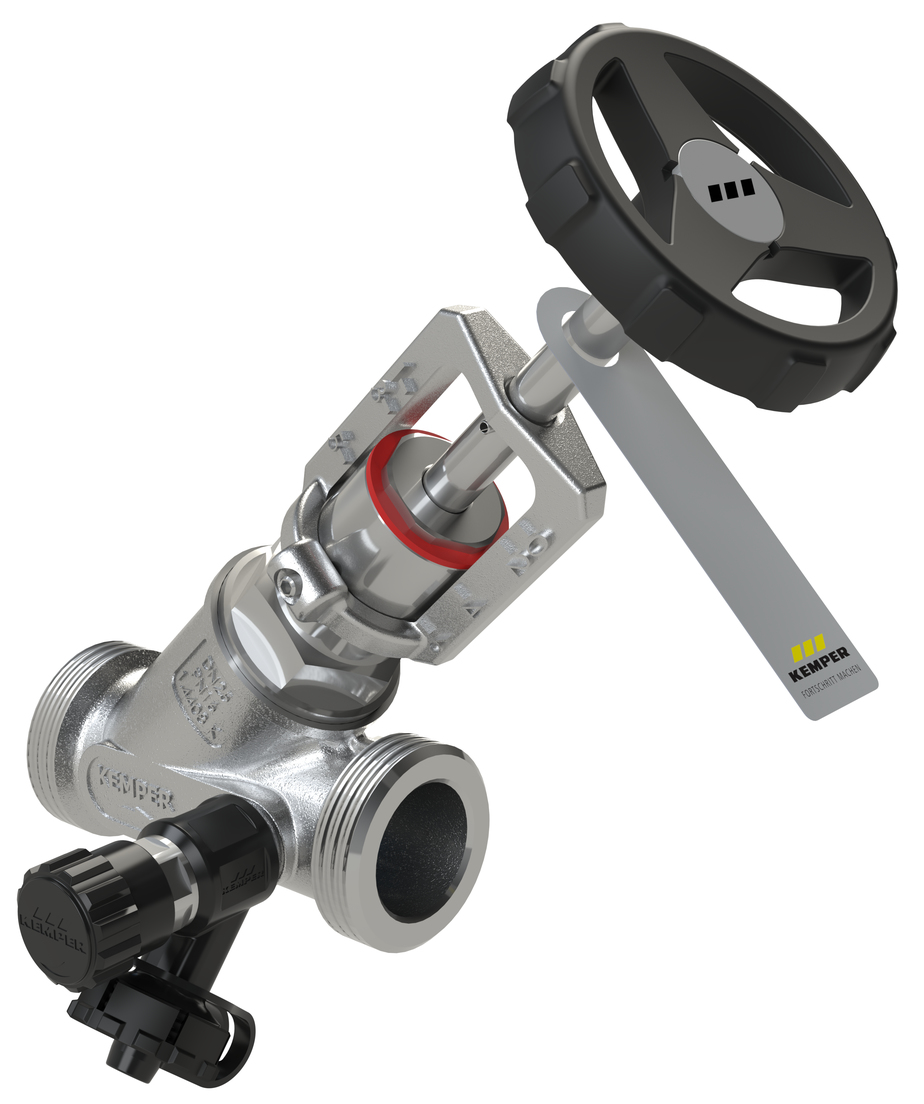

SST throttle valve, with drain valve, union thread, figure 078 1G

SST throttle valve, with drain valve, union thread

figure 078 1G

  • for hydraulic balancing of hot water return systems (PWH-C)
  • wetted parts made of stainless steel
  • male union thread
  • indication of pre-setting on bracket
  • with sidewise drain valve, rotatable hose connection element G 3/4
Products

MULTI-FIX static balancing valve

The manual, static addition

In circulation circuits, only the first balancing valve may be thermostatically controlled. For systems with several hydraulic levels, therefore, additional static balancing valves are required! The MULTI-FIX-PLUS allows fine volume flows to be set on the basis of the valve setting values that have been defined. The setting values can be determined by fastening to the handwheel. Furthermore, the valve can be used during maintenance work, for example, for shutting off the pipework.
