Hygienic drinking water supply: from the vision to the game changer

In the beginning, we had a vision: drinking water should be supplied in buildings hygienically, efficiently and in a resource-friendly way at all times. Without stagnation and the formation of germs. Without high operating and overall costs. Without unnecessarily wasting water. But with great crisis flexibility and design reliability.

Admittedly, it was a great challenge. Because we could not satisfy the demands we made of ourselves with a conventional series installation. So we worked very closely on a solution with scientists, operators and designers whose mandate was to turn established drinking water supply methods upside down. And that's exactly what our KHS KEMPER Hygiene System does.

How can that be seen? With more design reliability, greater variability and, above all, increased efficiency across all life-cycle phases of a building.

An Overview of the KHS KEMPER Hygiene System

Please click on the sections for more information.

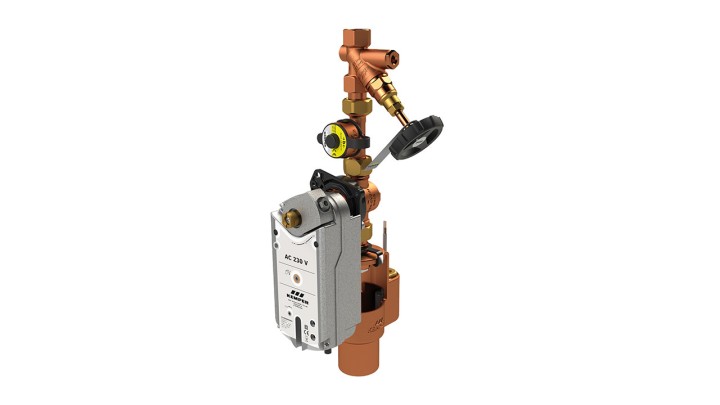

KHS Flush Point

Perfectly matched to the KHS KEMPER Hygiene System and controllable via the temperature unit and the KHS control system: The KHS Flush Point ensures the use of the installation for the intended purpose by means of controlled ‘forced draw-offs’ as a central flush point, e.g., in the cellar. Combined with KHS control systems of the building management system, the water exchange is carried out using selectable parameters.

Find out more

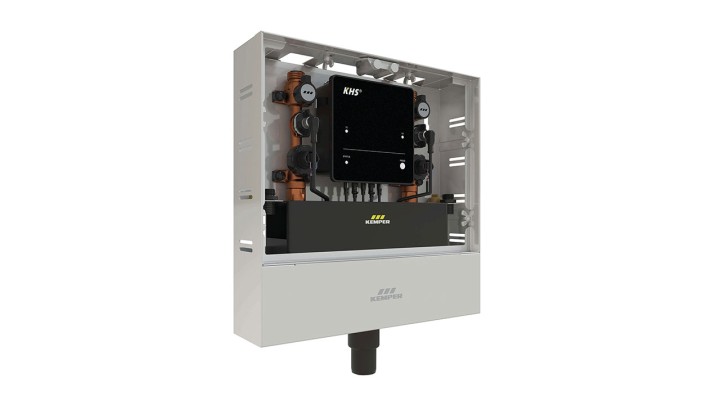

KHS Hygiene Flush Box

The KHS Hygiene Flush Box automises the water exchange. Time- and temperature-controlled flushes are possible. The PRO, PURE and LITE variants each offer precisely the functional scope that is needed for an optimum control concept depending on the building type, and also work autonomously without connection to the KHS KEMPER Hygiene System.

Find out more

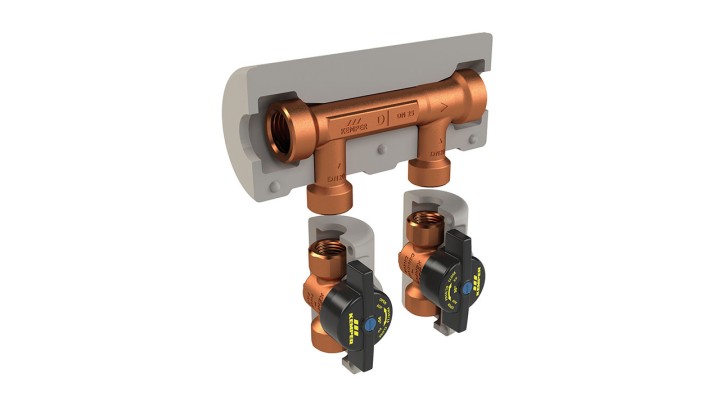

KHS Flow-Splitters

View of KHS Flow-Splitter | Kemper Group

The patented KHS Flow-Splitter ensures frequent water exchange: in all incorporated pipes by means of natural draw-offs or automated processes – without additional auxiliary energy, silent and maintenance-free.

Find out more

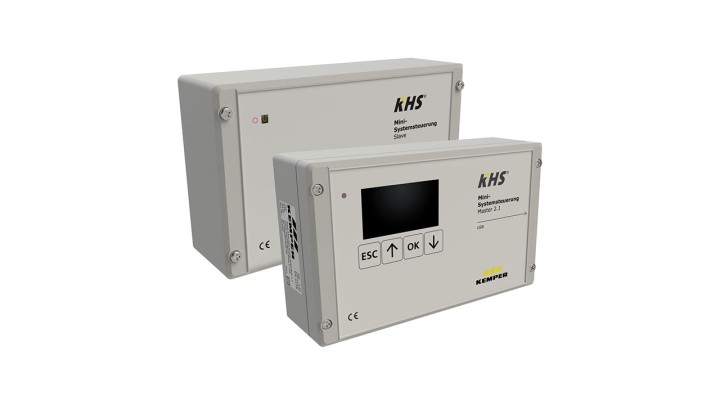

KHS control systems

The KHS control systems for decentralised control of the actuators and sensors carry out water exchanging measures in the PWC and PWH, log and monitor them.

Find out more

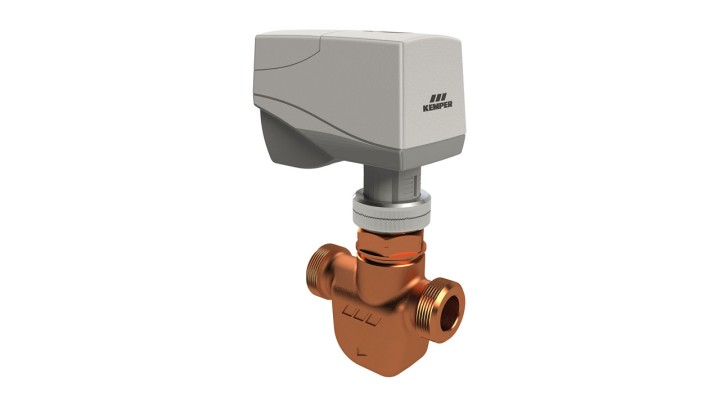

KHS CoolFlow Cold Water Balancing Valve

The thermostatic balancing valve with with integrated flushing function provides the thermal, self-regulating hydraulic balancing.

Find out more

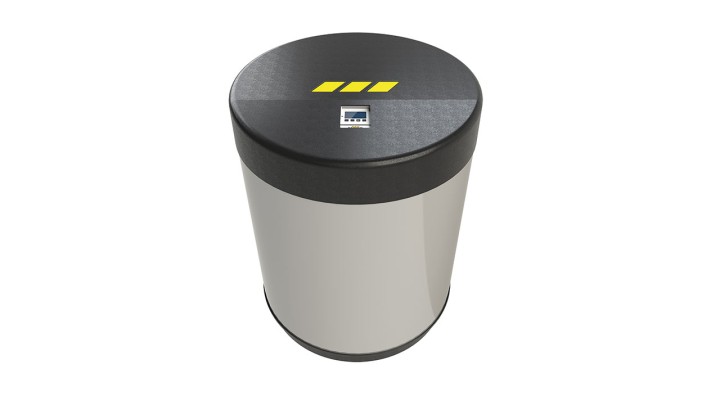

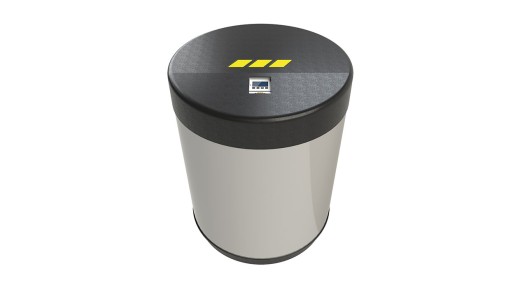

KHS CoolFlow cooler

As a PHE drinking water cooler with integrated circulation pump, the KHS CoolFlow cooler cools and distributes the drinking water to the tapping points in the domestic water installation. PWC temperature setting range: 15 °C to 25 °C

Find out more

Discover simply more values with just one system

Stagnation prevention

For every natural draw-off, there is a water exchange in the connected loop pipe, stagnation in the domestic water installation is prevented by natural consumption. As a result, the nominal content of a bathroom is exchanged up to 100 times a day – without wasting a drop of water – and the operator risk is comparison to conventional installation types is greatly reduced.

Temperature maintenance

Thanks to the natural water exchange in the loop pipe, the prescribed temperature maintenance can be realised efficiently. The KHS KEMPER Hygiene System reduces the water temperature by up to 5 K in bathroom installation in comparison to conventional types of installation.

Comfort

The KHS Venturi Flow-Splitter ensures water exchange in the pipes without any noise and unnoticed by the user. This is an advantage that ensures comfort in comparison to conventional fittings, especially in buildings such as hotels or care homes.

Saving Resources

Use of the patented KHS Venturi Flow-Splitters ensure a marked reduction in flushing volumes. Up to 3 m³ of drinking water can thus be saved per year and bathroom in comparison to conventional installation types. Furthermore, remaining flushing volumes of water can be collected centrally in a cistern and used as ECO water in secondary systems.

Increase in Efficiency

In spite of higher daily water exchange than a series installation, the KHS KEMPER Hygiene System manages without additional energy thanks to the KHS Venturi Flow-Splitter. There are further savings from lower investment costs and thinner pipes.

Design Freedom

The arrangement of the installations – WC to shower or washbasin – can be chosen freely. Even if usage habits change in the long term and tapping points are taken out of service, no pipes have to be dismantled to prevent stagnation. Simply sealing the connection is enough.

Design Reliability

Thanks to loop installation and KHS Flow-Splitters, natural and planned draw-offs in the overall system ensure safe water exchange, even in temporarily unused bathrooms. This is an advantage with varying usages with potential stagnation areas, e.g., in hotels and hospitals.

Operational Safety

The nominal content of a bathroom is often exchanged by the KHS KEMPER Hygiene System much more frequently than required by the law; the formation of dangerous germs is greatly reduced due to a lack of stagnation. This reduces the operator risk in comparison to conventional installation types, even in the event of unexpected changes in use.

Crisis Flexibility

There can often be unexpected changes in use in properties such as hotels or hospitals. With the KHS Hygiene Flush Box or KHS CoolFlow system components, water exchange and temperature maintenance can be automated – thus ensuring drinking water hygiene even in the event of interruptions to operation.

ECO Water

Cutting running costs – while doing something for the environment: the second use of the collected water is available to operators as ECO water, for example for watering gardens, green roofs and green façade areas – or for flushing WCs.

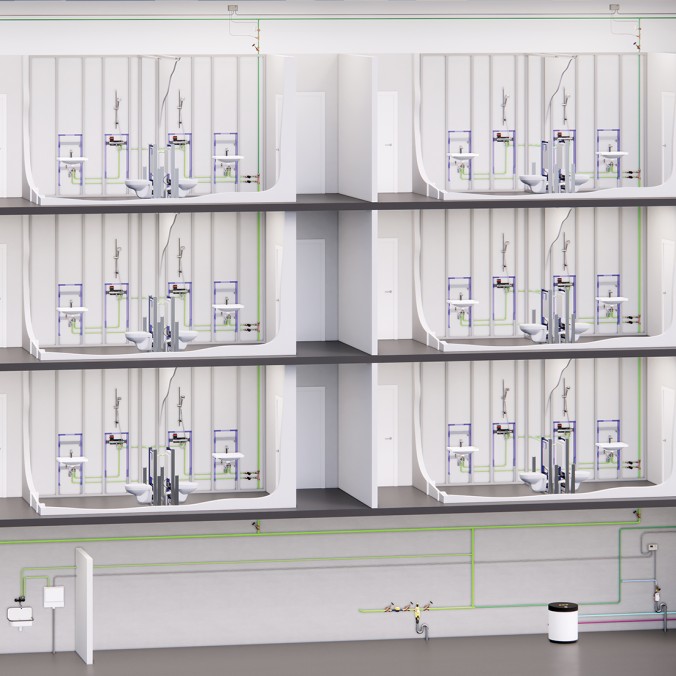

Loop Installation as Basis for Optimum Drinking Water Hygiene

We developed the KHS KEMPER Hygiene System for buildings that are especially relevant to hygiene or have potential stagnation areas in the drinking water supply. The basis of our solution is the further development of the series installation into a loop installation. In a loop installation, the pipe is conducted back to the distribution pipe after the last tapping point and connected by our patented KHS Venturi Flow-Splitter.

Stagnation Prevention

The effect of our further development: Downstream, natural consumption ensures water exchange in the ongoing operation of a buildings, even in stagnation areas – even in temporarily unused bathrooms. With the same usage behaviours, there can be up to 100 times more frequent water exchange in the bathroom per day in comparison to a conventional series installation.

Temperature Maintenance

More than a positive side effect: thanks to the natural water exchange in the loop pipe, the statutory prescribed temperature maintenance can be realised efficiently. The use of KHS Flow-Splitters reduces the water temperature in bathroom installation by up to 5 K in comparison to series installation just due to the regularly flowing fresh drinking water.

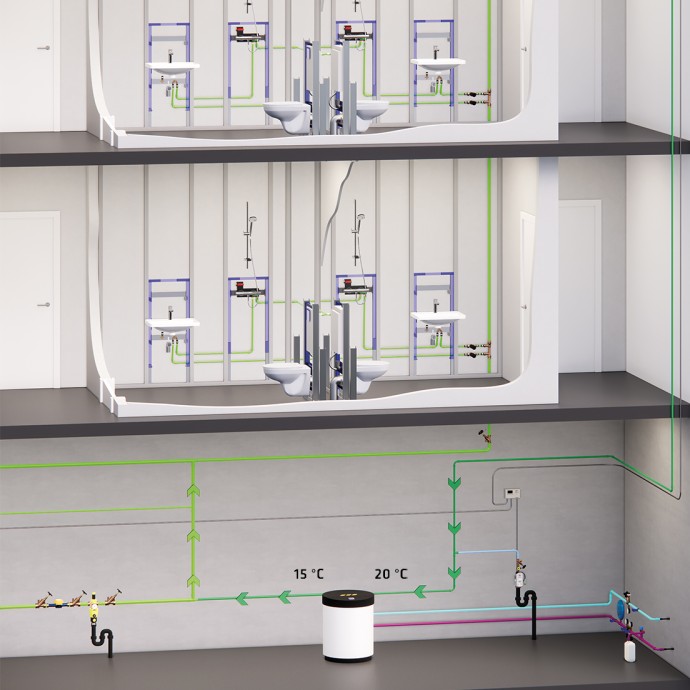

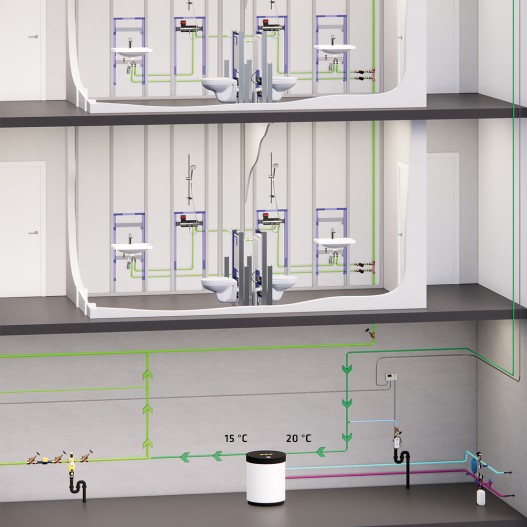

KHS CoolFlow is the solution for sustainable temperature maintenance

Ever hotter summer months lead to increasingly high ambient air temperatures in buildings. The incoming main temperature of the drinking water also rises. The consequence: temperature-controlled flushing measures rise dramatically to ensure the statutory prescribed temperature maintenance.

You effectively ensure temperature maintenance in the cold water with a climate-resilient drinking water supply. KHS CoolFlow is the intelligent component in the KHS KEMPER Hygiene System that ensures active temperature maintenance.

What’s useful to know even in the planning phase: KHS CoolFlow quickly pays for itself as an alternative to temperature maintenance; the Return on Investment (ROI) is often achieved after less than two years.

More about KHS CoolFlow

Best Economic Reasons for Designers, Operators and Investors

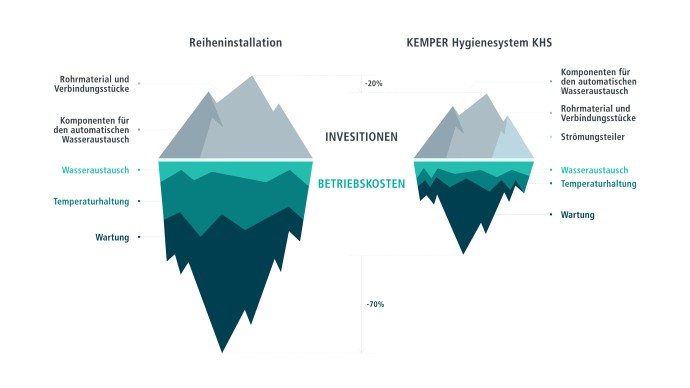

The subject of efficiency naturally also played an important role in the development of the KEMPER Hygiene System - KHS: for example, in comparison to series installation, the investment costs for the KHS with Flow-Splitter can be up to 20 per cent lower – and thus already a strong argument for our solution, alongside better hygienic properties and great operational safety.

With the up to 70 per cent lower operating costs thanks to lower drinking water consumption, lower maintenance and energy costs or the use of ECO water, we offer the best reasons for designers, operators and investors.
